Device Wiring - tell Gate Control 20 Schnellinstallationsanweisung Für Installateure

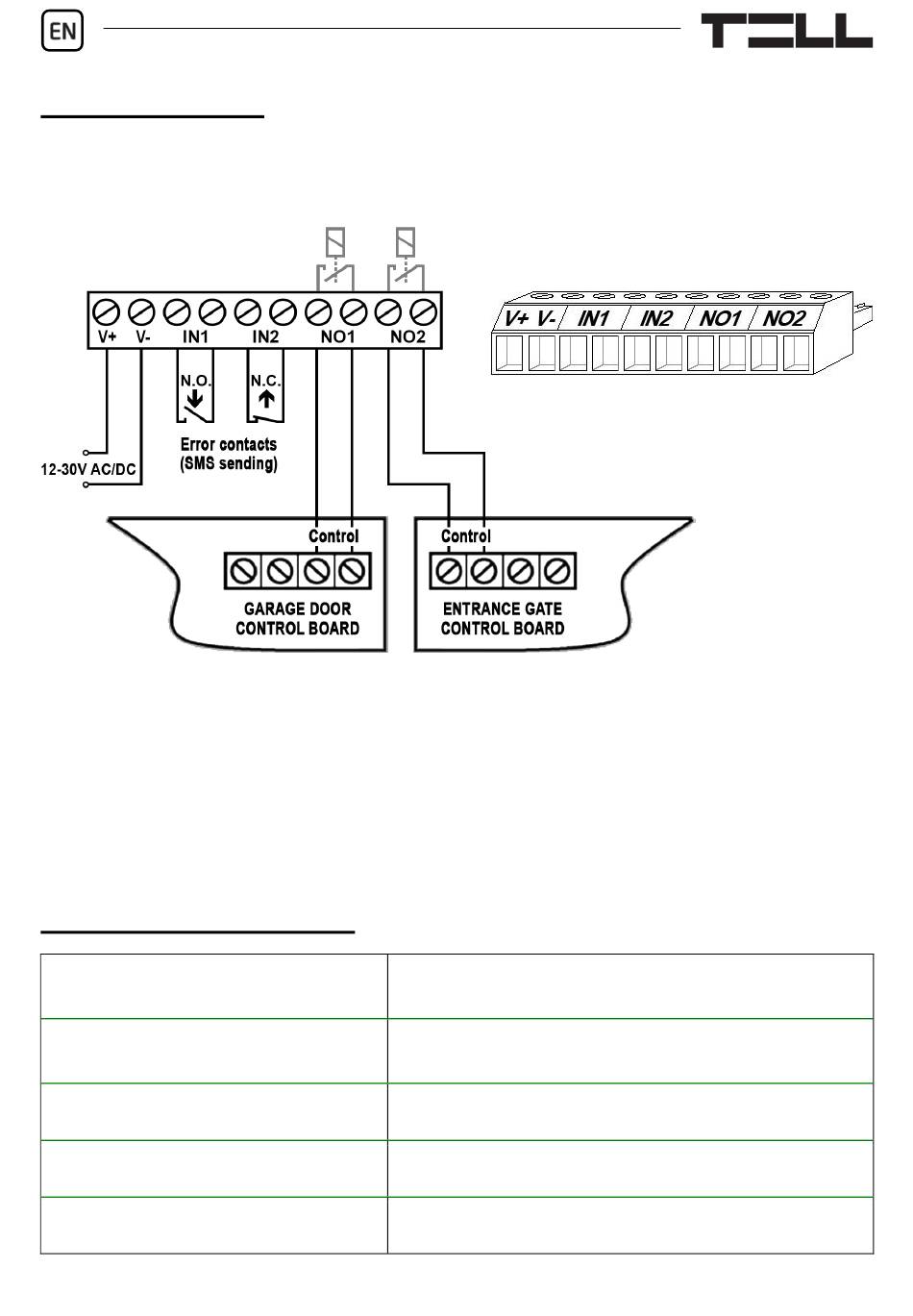

DEVICE WIRING:

Attention! Do NOT connect the connector of the antenna directly or
indirectly to the protective ground, because this may damage the device!
V+ Supply voltage 12-30V AC/DC (min. 400mA)
V- Supply voltage negative (GND)
IN1 Input 1 (NO or NC)
IN2 Input 2 (NO or NC)
NO1 Relay output 1 (normally open)
NO2 Relay output 2 (normally open)
STATUS LED SIGNALS:
Flashing green
Permanent green
Alternate red and green flash
Flashing red
Permanent red
Normal operation,
connected to the mobile network
Processing SMS command, changing the
settings
SMS command error
Modem start/restart in progress
Mobile network search or SIM card error
4
