Cambridge Audio MINX X201 Installationsanleitung

Technical specifications /
Technische daten / Caractéristiques techniques
/ Especificaciones técnicas / Specifiche tecniche / Technische specificaties / Tekniska
specifikationer / Технические характеристики
Min 12
86dB (2.83 Vrms input)
Sensitivity (SPL)
Frequency response 120Hz - 20kHz
Impedance 8 Ohms compatible
Power handling 15-50W Recommended
1 x 2.25"
Drivers
78 x 78 x 85mm (3.1 x 3.1 x 3.3")
Speaker himensions (H x W x D)
0.43Kg (0.95lbs)
Weight

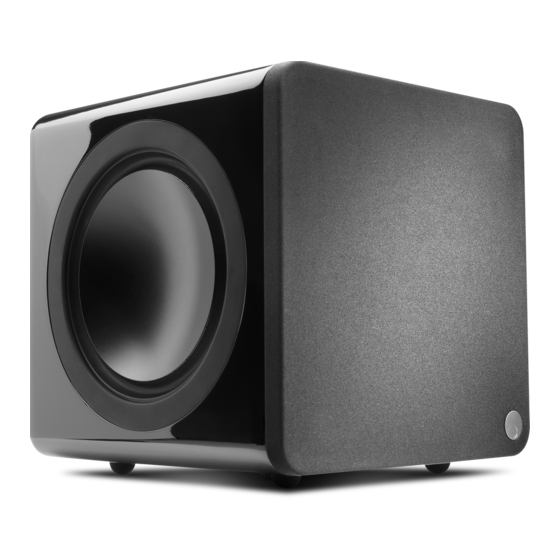

X201
Power output 200W
Mains voltage 100-120V/220-240V
Drivers 1 x 6.5" Subwoofer
2 x 6.5" Passive Radiator
Speaker dimensions (H x W x D) 219 x 210 x 222mm (8.6 x 8.3 x 8.7")
5.0Kg (11.0lbs)
Weight
Minx is a trademark of Cambridge Audio. All rights reserved.
© Copyright Audio Partnership Plc 2014
Cambridge Audio is a brand of Audio Partnership Plc.
Registered Office: Gallery Court, Hankey Place, London SE1 4BB, UK.
Registered in England No. 2953313
www.cambridge-audio.com
Part No. AP33169/2
Min 22
88dB (2.83 Vrms input)
120Hz - 20kHz
8 Ohms compatible
15-75W Recommended
2 x 2.25"
154 x 78 x 85mm (6.0 x 3.1 x 3.3")
0.75Kg (1.65lbs)
X301
300W
100-120V/220-240V
1 x 8" Subwoofer
1 x 8" Passive Radiator
311 x 266 x 278mm (12.4 x 10.5 x 11.0")
7.5Kg (16.5lbs)
Installation guide
Installationsanleitung
Guide d'installation
Guía de instalación
Guida all'installazione
Installatiehandleiding
Installationsguide
Руководство по установке
