ABUS Security-Center FU2938 Installationsanleitung Seite 14

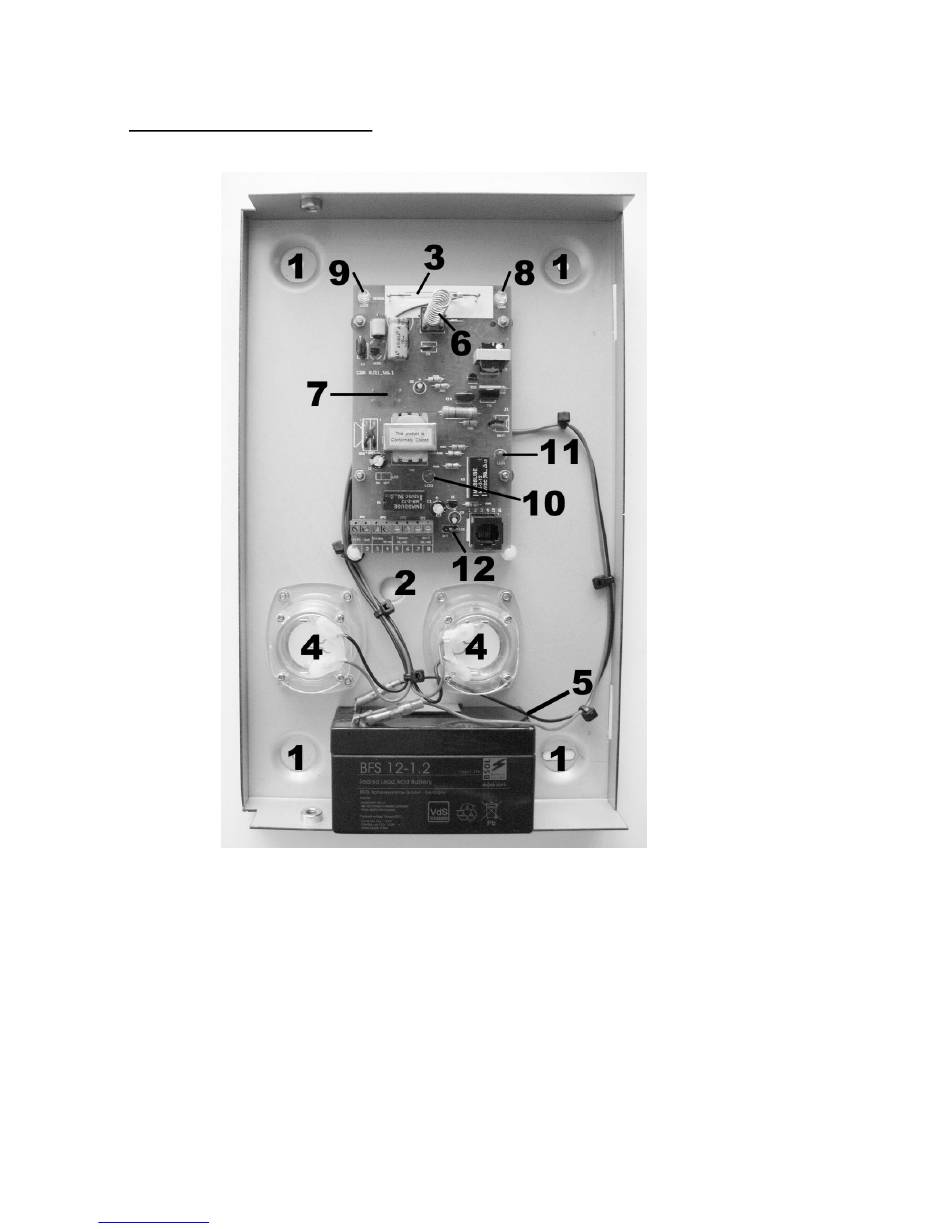

Description of construction
Downloaded from www.Manualslib.com
1 Drill holes for wall fixing
2 Cable feed
3 Xenon strobe
4 Piezo sirens
5 Space for rechargeable battery
6 Tamper contact (cover)
7 Tamper contact (wall)
8 Diagnostics, LED 1
9 Diagnostics, LED 2
10 Diagnostics, LED 3, battery
11 Diagnostics, LED 4, battery charge
12 Jumper for diagnostic LEDs
