DESIGNATION OF PARTS

MS-335.4 U
⑮
⑰
④
⑪
⑯
⑬
⑭
⑮
⑤
⑨
⑫
⑦
⑩
⑬
⑭
⑱
8
⑤
⑫
④
⑩
⑨
⑪
MS-335.4 C

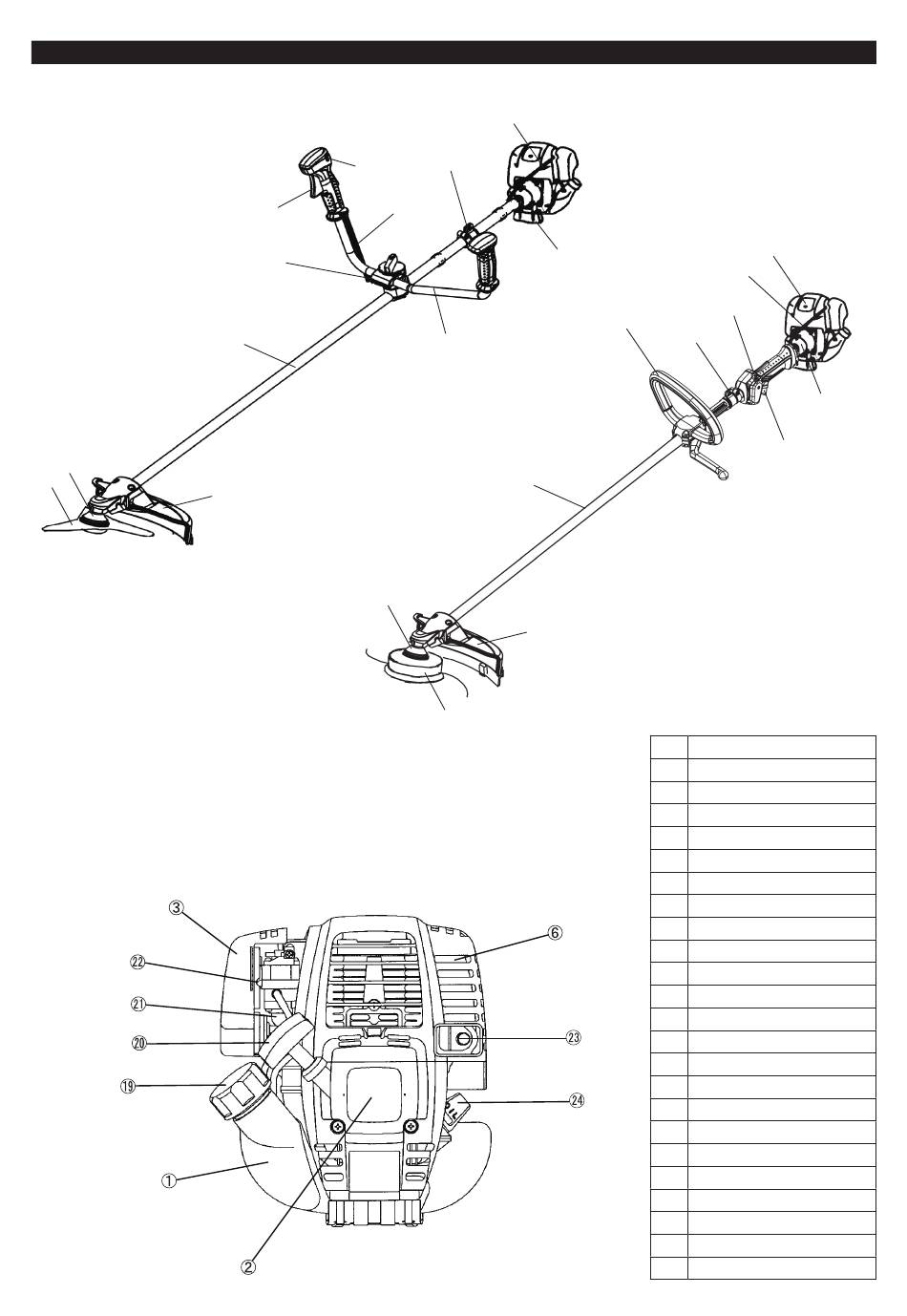

GB DESIGNATION OF PARTS
1 Fuel Tank
2 Rewind Starter
3 Air Cleaner
4 I-O Switch (on/off)
5 Spark Plug
6 Exhaust Muffler
7 Clutch Case
9 Hanger
10 Handle
11 Throttle Lever
12 Control Cable
13 Shaft
14 Protector (Cutting tool guard)
15 Gear Case/Head Case
16 Handle Holder
17 Cutter Blade
18 Nylon Cutting Head
19 Fuel Filler Cap
20 Starter Knob
21 Primer Pump
22 Choke Lever
23 Exhaust Pipe
24 Oil Gauge
