CLIP
8
This LED lights up red if one of the 8 high level inputs (CH1-8) is overdriven. The LED has no function
when an input signal is applied to the Optical input and the Bluetooth™ input. If this LED lights up
reduce the input sensitivity by using the regarding controller Input Sensitivity until the LED goes out.
LINE INPUT (LOW LEVEL)
9
Connect here the preamplifier low level RCA outputs coming from the head unit.
CAUTION: Do NOT use the High Level Input and the Line Input at the same time.

LINE OUTPUT

10
These RCA outputs deliver DSP modified low level preamplifier output signals for additional amplifiers.
Connect each channel according to your sound system setup.
AUX IN
11
These stereo RCA inputs are suited for a auxiliary low level input signal from an external stereo pre-
amplifier source such as a game console or a media player. The input sensitivity adjustable from 2 to
15 V RMS.

INPUT SENSITIVITY

12
With these controllers you can adjust the input sensitivity for each analog input section. This function
is suited to match the output voltage of the connected signal source with the device.

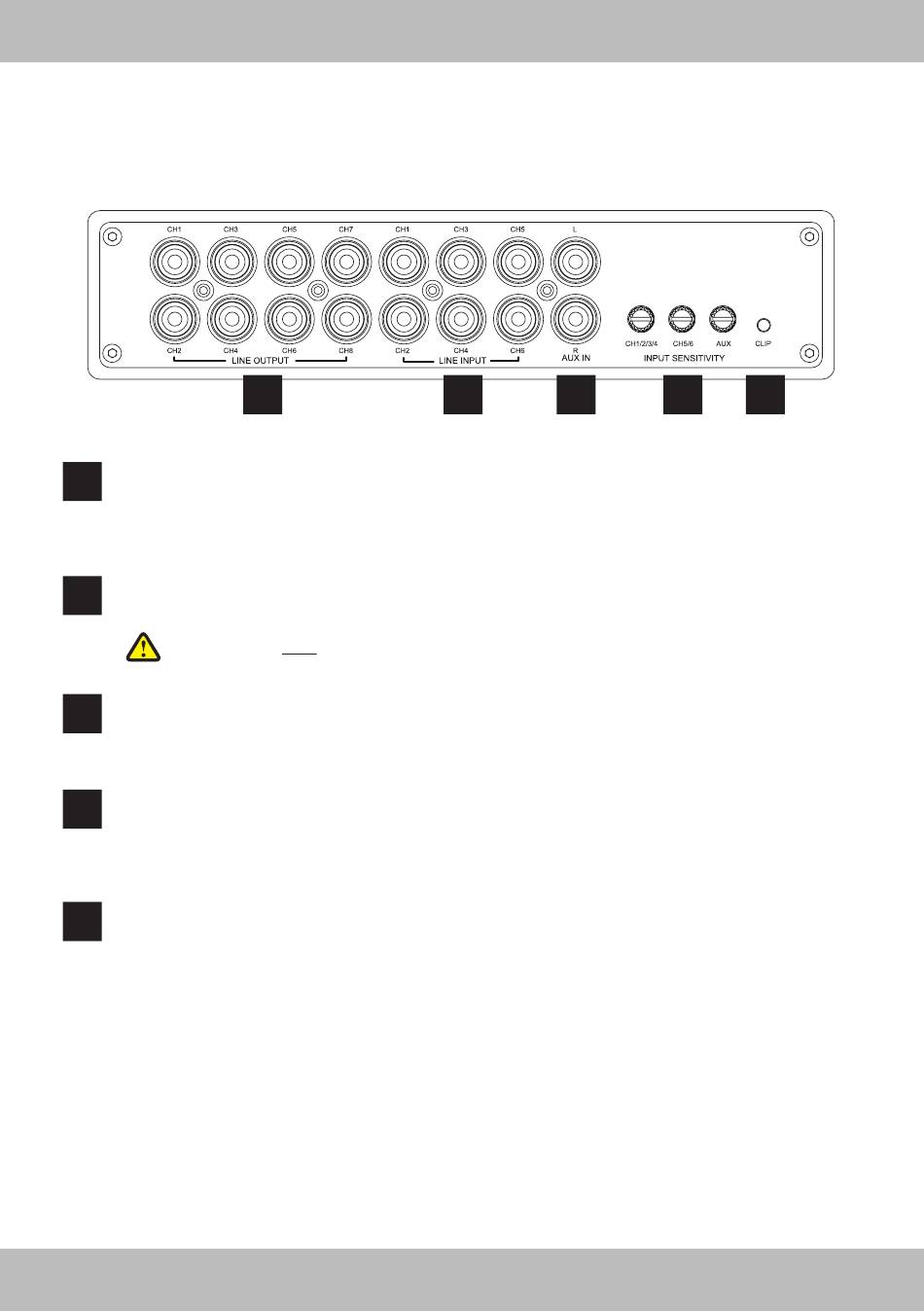

10 9 11
