BD-Sensors-Str.1; 95199 Thierstein
Telefon: +49 (0) 92 35 / 98 11 0 | www.bdsensors.de

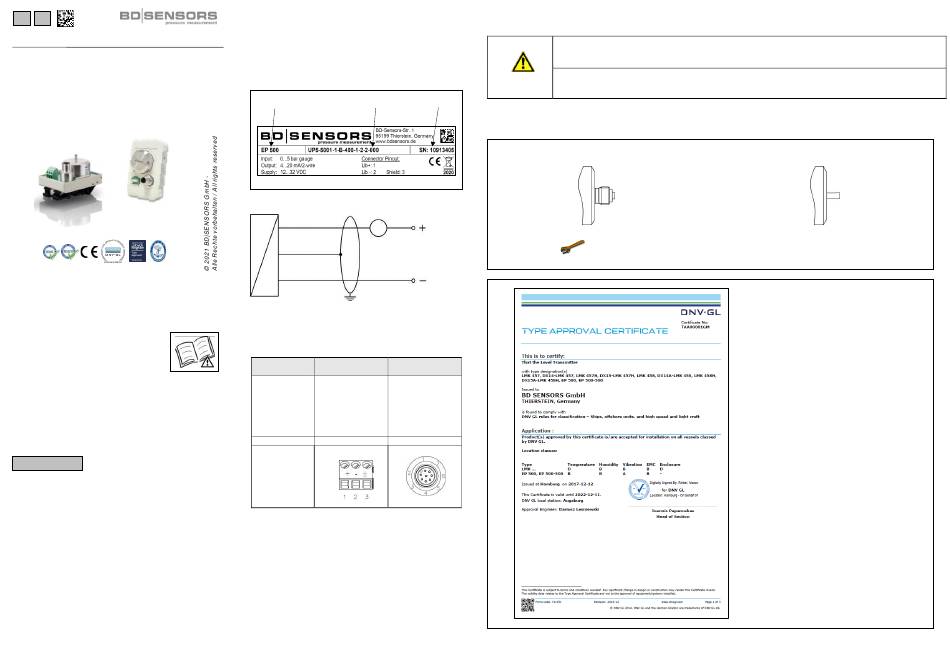

Montageanleitung /
Mounting instructions
Druckmessumformer für Schifffahrt und Offshore /
Pressure Transmitter for Shipbuilding and Offshore
EP 500,
EP 500-500
Option
EP 500-500
VOR GEBRAUCH SORGFÄLTIG LESEN
AUFBEWAHREN FÜR SPÄTERES NACHSCHLAGEN
READ THOROUGHLY BEFORE USING THE DEVICE
KEEP FOR FUTURE REFERENCE
ID: MA_EP500_D-E | Version: 02.2021.0
Diese Montageanleitung stellt einen Auszug
aus der ausführlichen Betriebsanleitung dar.
Laden Sie sich diese auf unserer Homepage
herunter, falls Sie nicht mit dem Produkt
vertraut sind.
These mounting instructions are an excerpt from the complete
operating manual. It may be downloaded from our homepage,
if you are not familiar with the device.
http://www.bdsensors.de
– Technische Änderungen vorbehalten –
– Technical modifications reserved –
English
WARNING
- In order to avoid hazards to operators and
damages to the device, the following instructions have to be
performed by qualified technical personnel.
WARNING
- Adhere to the safety and operating instructions
stated in the operation manual. Effective regulations on occupa-
tional safety, accident prevention as well as national installation
standards and approved engineering techniques must in addi-
tion be complied with.
Limitation of liability and warranty
Failure to observe mounting instructions / operating manual or
technical regulations, improper use and use not as intended,
and alteration of or damage to the device will result in the
forfeiture of warranty and liability claims.
Intended use
Ensure that the medium is compatible with the media-wetted
parts and that the device is suitable for the application without
restrictions. The technical data listed in the current data sheet is
binding.
Product identification
Type designation
Ordering code
Serial number
Wiring diagram
Supply +
p
A
V
S
I
Supply –
NOTE
- For the electrical connection a shielded and twisted
multicore cable has to be used.
Pin configuration
Electrical
Terminal
M12x1 (8-polig),
connections
clamps
metal
Supply +1
1
-
-
4
Supply +2
Supply -
2
2
-
5
Tx
Rx
-
6
GND
-
7
-
1
NC
Shield
3
3
Figure
Mounting
Danger of death from airborne parts, leaking fluid, electric shock
-
Always mount the device in a depressurized and de-energized condition!
-
Operate the device only within the specification! (according to data sheet)
Danger of death from improper installation
DANGER
-
Installation must be performed only by appropriately qualified persons who have read and understood the
operating manual.
NOTE
- For connections acc. to EN 837 use a suitable seal, corresponding to the medium and the pressure input.
NOTE
- The permissible tightening torque depends on the conditions on site (material and geometry of the mounting point). The specified
tightening torque is valid for the transmitter and must not be exceeded!
Anschluss G1/4" nach EN 837
approx. 20 Nm
Schlauchtülle
slip your flexible
tubes (4 mm) onto the tube
nozzles as far as possible
The pressure transmitters EP 500 and
EP 500-500 fulfil the requirements of
DNV▪GL (Det Norske Veritas ▪
Germanischen Lloyd) as standard.
The certificate is available for download
on our homepage:
http://www.bdsensors.de
