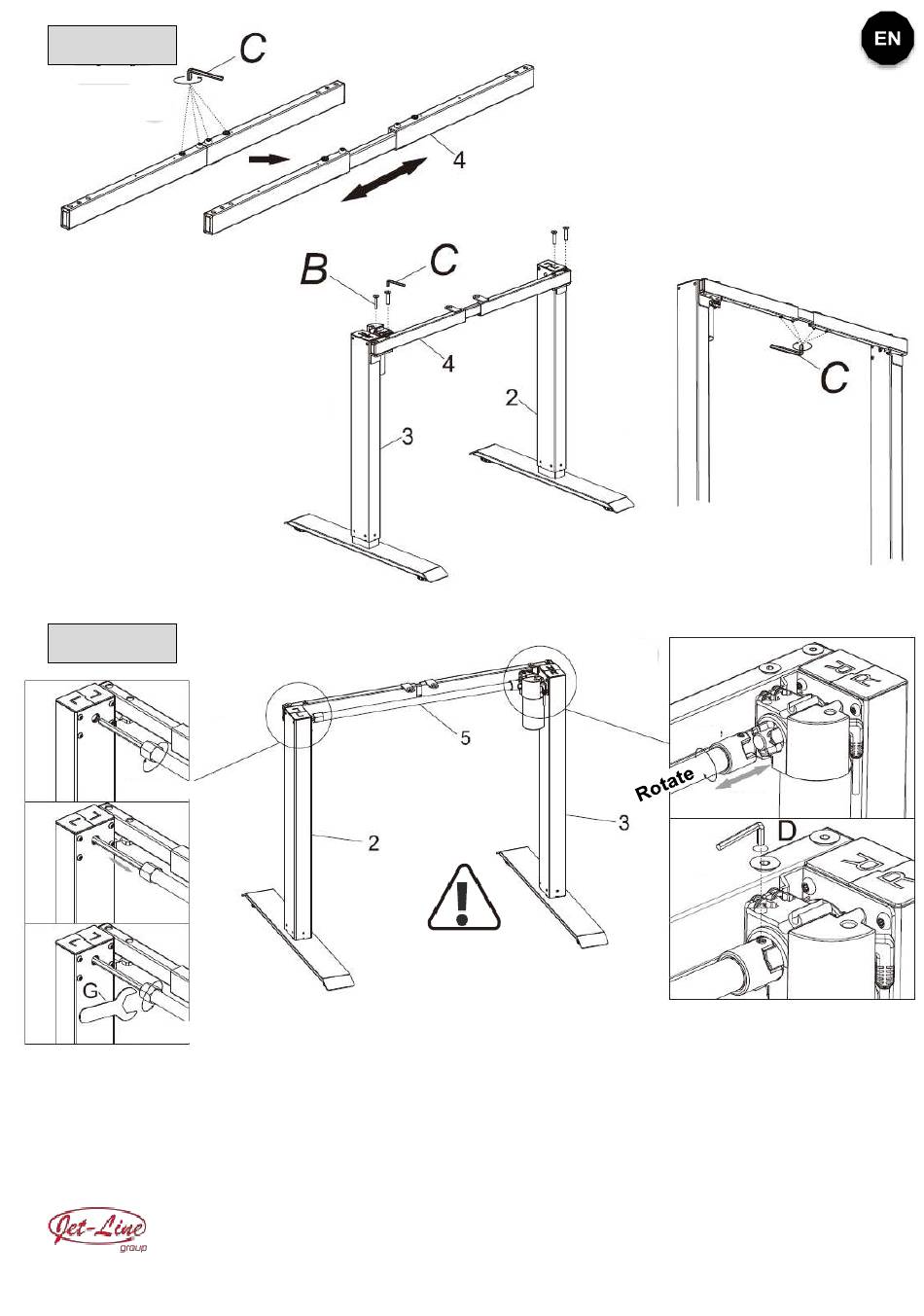

STEP 2
Loosen
2.
Use the Screws (B) and the
Allen Key 5x5 (C) to connect
the Support Beam (4) with the
Pedestals (2) and (3)
STEP 3
Loosen
Insert
Tighten
1.
Stretch
Do not rotate the
Transmission Rod for
more than a third of a turn
Connect the Transmission Rod (5) according to the drawing
with the Columns (2) and (3) and fasten the connection with
Allen Key 2,5x2,5 (D)
Make sure to execute the above-pictured steps in the correct
order; Step 1 (left drawing) first, then Step 2 (right drawing)
1.
Use Allen Key 4x4 (C) to loosen
the Screws (4). Then stretch the
Support Beam (4) so far that it
matches the width of your tabletop
Auseinanderziehen
3.
Use Allen Key 4x4 (C) to tighten the
screws on the Support-Beam (4)
Insert
Fasten
2.
