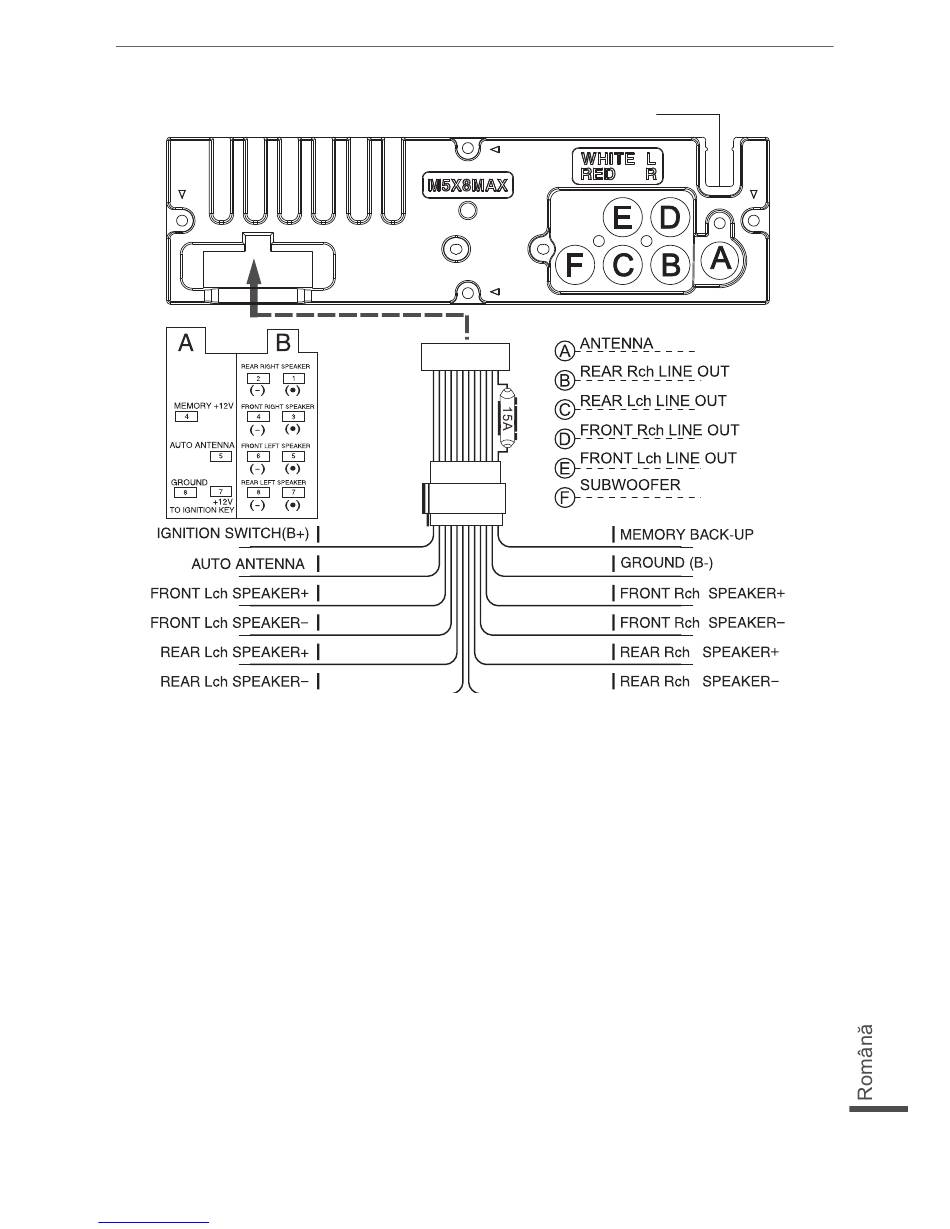

SCHEMA dE CONECTARE

IGNITION SWITCH (B+); RED – BUTON CONTACT (B+); cablu rosu
AUTO ANTENNA, blue – ANTENA AUTO, cablu albastru
FRONT Lch SPEAKER „+" ,WHITE – DIFUZOR FATA Lch „+", cablu alb
FRONT Lch SPEAKER „-„ , WHITE/BLACK– DIFUZOR FATA Lch „-„, cablu alb/negru
REAR Lch SPEAKER „+",GREEN – DIFUZOR SPATE Lch „+", cablu verde
REAR Lch SPEAKER „-„ , GREEN/BLACK – DIFUZOR SPATE Lch „-", cablu verde/negru
YELLOW , MEMORY BACKUP– ALIMENTARE MEMORIE, fir galben (se leaga la +)
BLACK, GROUND– MASA, cablu negru
FRONT Rch SPEAKER „+", GREY – DIFUZOR FATA Rch „+", cablu gri
FRONT Rch SPEAKER „-„, GREY/BLACK – DIFUZOR FATA Rch „-", cablu gri/negru
REAR Rch SPEAKER „+" , VIOLET– DIFUZOR SPATE Rch „+", cablu violet
REAR Rch SPEAKER „-„ ,VIOLET/BLACK– DIFUZOR SPATE Rch „-„, cablu violet/negru
ANTENNA – ANTENA
REAR Rch LINE OUT– IESIRE LINIE Rch SPATE
REAR Lch LINE OUT– IESIRE LINIE Lch SPATE
FRONT Rch LINE OUT– IESIRE LINIE Rch FATA
FRONT Lch LINE OUT– IESIRE LINIE Lch FATA
SUBWOOFER
Downloaded from www.Manualslib.com
RED
BLUE
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
manuals search engine
Manual de utilizare
BLUETOOTH ANTENNA
YELLOW
BLACK
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
