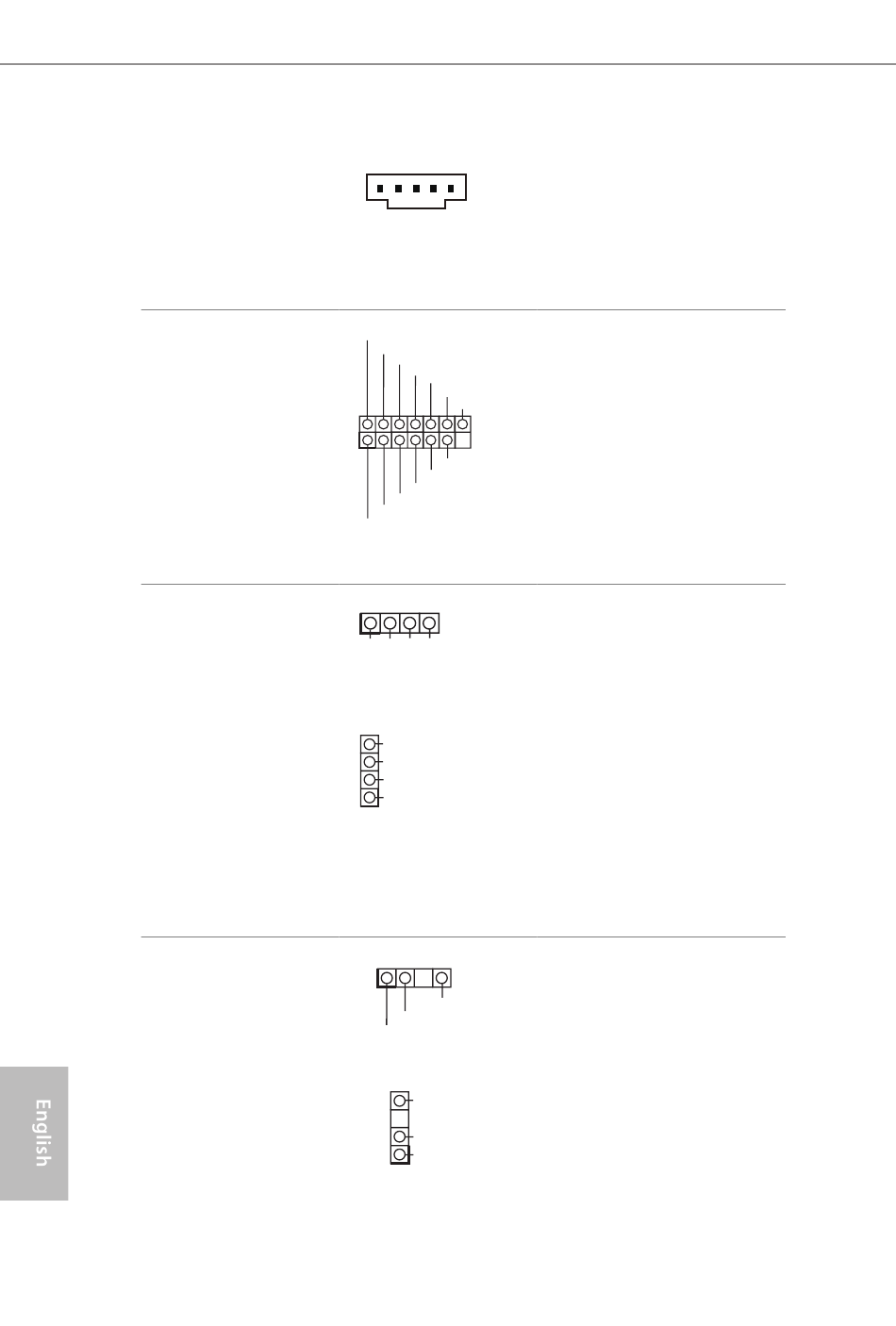

Thunderbolt AIC
Connector
(5-pin TB1)
(see p.1, No. 29)
SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.1, No. 18)
RGB LED Headers
(4-pin RGB_LED1)
(see p.1, No. 26)
(4-pin RGB_LED2)
(see p.1, No. 7)
Addressable LED Headers
(3-pin ADDR_LED1)
(see p.1, No. 25)
(3-pin ADDR_LED2)
(see p.1, No. 8)
24
SPI_DQ3
+3.3V
Dummy
CLK
SPI_MOSI
RST#
TPM_PIRQ
1
SPI_TPM_CS#
GND
RSMRST#
SPI_MISO
SPI_CS0
SPI_DQ2
1
+12V G R B
B
R
G
+12V
1
1
GND
DO_ADDR
VOUT
GND
DO_ADDR
VOUT
1
Please connect a Thunderbolt™
add-in card (AIC) to this
connector via the GPIO cable.
*Please install the Thunderbolt™
AIC card to PCIE4 (default slot).
This connector supports SPI
Trusted Platform Module (TPM)
system, which can securely
store keys, digital certificates,
passwords, and data. A TPM
system also helps enhance
network security, protects digital
identities, and ensures platform
integrity.
RGB LED headers are used to
connect RGB LED extension
cables which allow users to
choose from various LED light-
ing effects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 32 for for
further instructions on this
header.
The headers are used to connect
Addressable LED extension ca-
bles which allow users to choose
from various LED lighting
effects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 33 for
further instructions on this
header.
