EDS 820 IO-Link
12

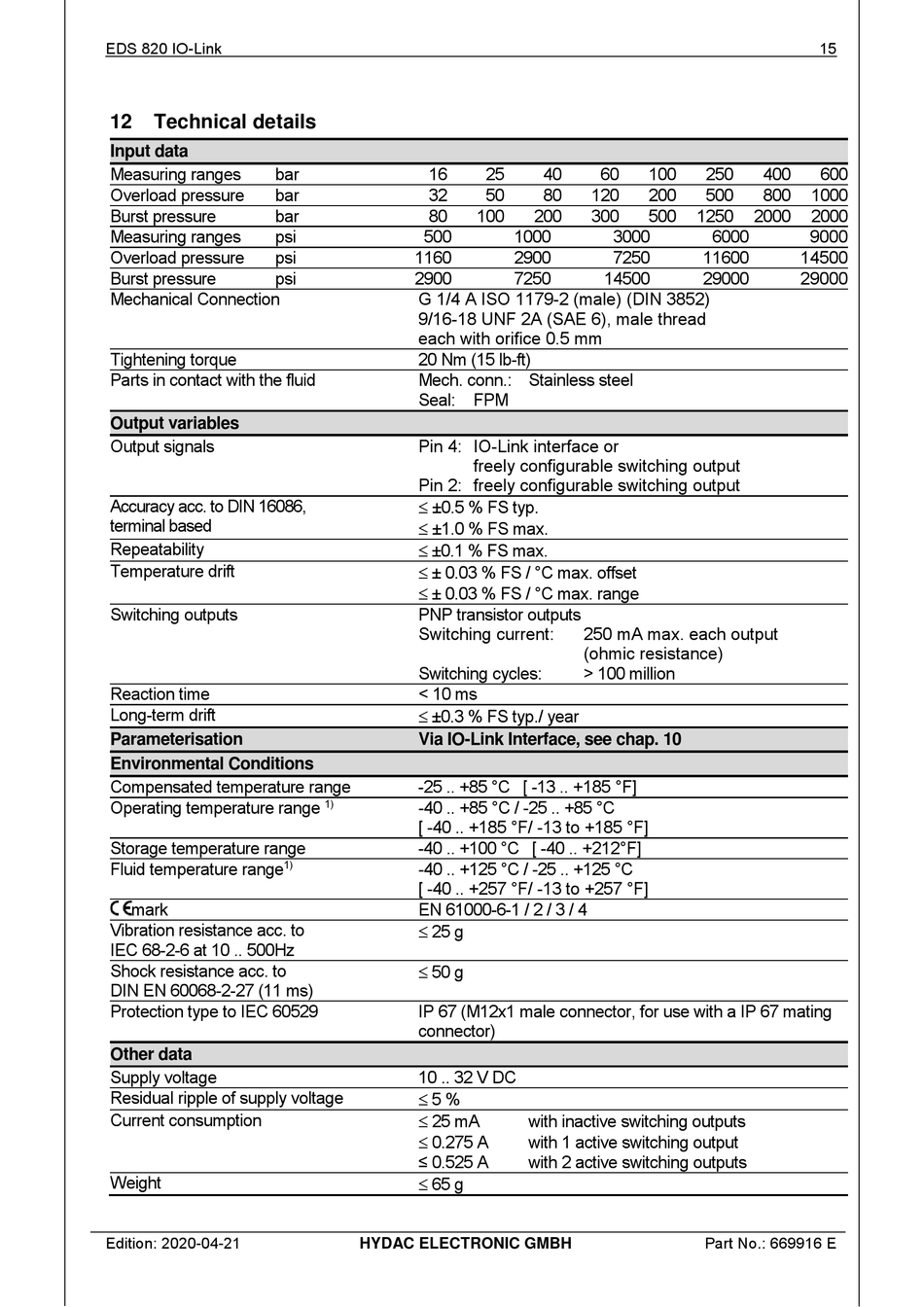

Technical details

Input data
Measuring ranges bar
Overload pressure bar
Burst pressure bar
Measuring ranges psi
Overload pressure psi
Burst pressure psi
Mechanical Connection
Tightening torque
Parts in contact with the fluid
Output variables
Output signals
Accuracy acc. to DIN 16086,
terminal based
Repeatability
Temperature drift
Switching outputs
Reaction time
Long-term drift
Parameterisation
Environmental Conditions
Compensated temperature range
Operating temperature range
Storage temperature range
Fluid temperature range
mark
Vibration resistance acc. to
IEC 68-2-6 at 10 .. 500Hz
Shock resistance acc. to
DIN EN 60068-2-27 (11 ms)
Protection type to IEC 60529
Other data
Supply voltage
Residual ripple of supply voltage
Current consumption
Weight
Edition: 2020-04-21
16
32
80
500
1160
2900
G 1/4 A ISO 1179-2 (male) (DIN 3852)
9/16-18 UNF 2A (SAE 6), male thread
each with orifice 0.5 mm
20 Nm (15 lb-ft)
Mech. conn.: Stainless steel
Seal: FPM
Pin 4: IO-Link interface or
Pin 2: freely configurable switching output
 ±0.5 % FS typ.
 ±1.0 % FS max.
 ±0.1 % FS max.
 ± 0.03 % FS / °C max. offset
 ± 0.03 % FS / °C max. range
PNP transistor outputs
Switching current:
Switching cycles:
< 10 ms
 ±0.3 % FS typ./ year
Via IO-Link Interface, see chap. 10
-25 .. +85 °C [ -13 .. +185 °F]
1) -40 .. +85 °C / -25 .. +85 °C
[ -40 .. +185 °F/ -13 to +185 °F]
-40 .. +100 °C [ -40 .. +212°F]
1) -40 .. +125 °C / -25 .. +125 °C
[ -40 .. +257 °F/ -13 to +257 °F]
EN 61000-6-1 / 2 / 3 / 4
 25 g
 50 g
IP 67 (M12x1 male connector, for use with a IP 67 mating
connector)
10 .. 32 V DC
 5 %
 25 mA
 0.275 A
≤ 0.525 A
 65 g
HYDAC ELECTRONIC GMBH
25 40 60
50 80 120
100 200 300
1000 3000
2900 7250
7250 14500
freely configurable switching output
250 mA max. each output
(ohmic resistance)
> 100 million
with inactive switching outputs
with 1 active switching output
with 2 active switching outputs
15
100 250 400 600
200 500 800 1000
500 1250 2000 2000
6000 9000
11600 14500
29000 29000
Part No.: 669916 E
