Installation of the hands-free car kit

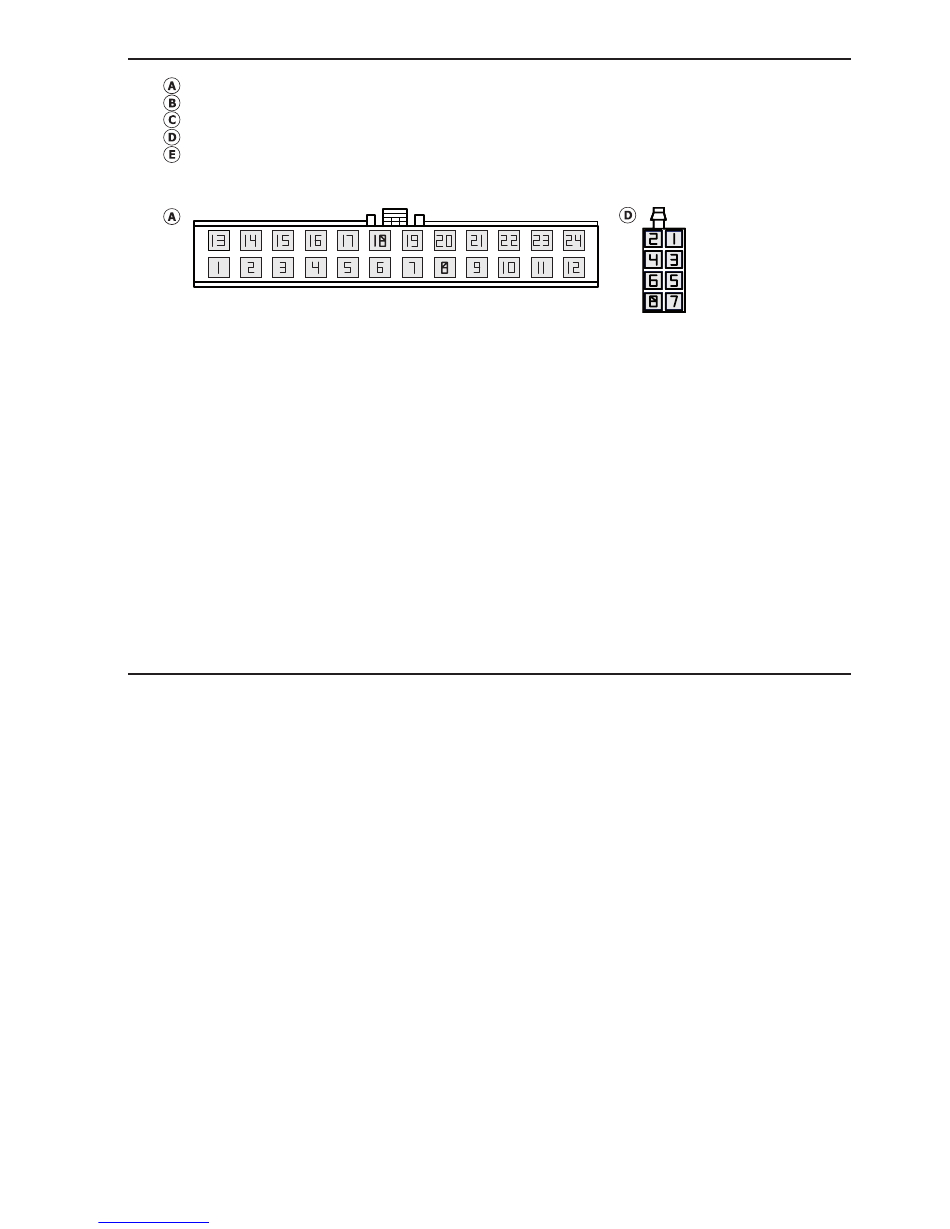

- Micro Molex 24 - ISO - connection to the electronic box (HFCK)
- connection to the vehicle's speakers
- connection to the vehicle's power supply
- connection to the car radio
- connection to the car radio
1 - C RR- 13 - C RR+
2 - C RF- 14 - C RF+
3 - C LF- 15 - C LF+
4 - C LR- 16 - C LR+
5 - R LR- 17 - R LR+
6 - R LF- 18 - R LF+
7 - R RF- 19 - R RF+
8 - R RR- 20 - R RR+
9 - LINE R+ 21 - LINE R-
10 - LINE L+ 22 - LINE L-
11 - R-Mute 23 - Ignition
12 - Ground 24 - Power
Installation of the hands-free car kit
manuals search engine
1 - Mute 3
2 - Mute 2
3 - Mute 1
4 - Ignition
5 - Antenna
6 - Illumination
7 - Power
8 - Ground
