Mounting
Before mounting this product, read the

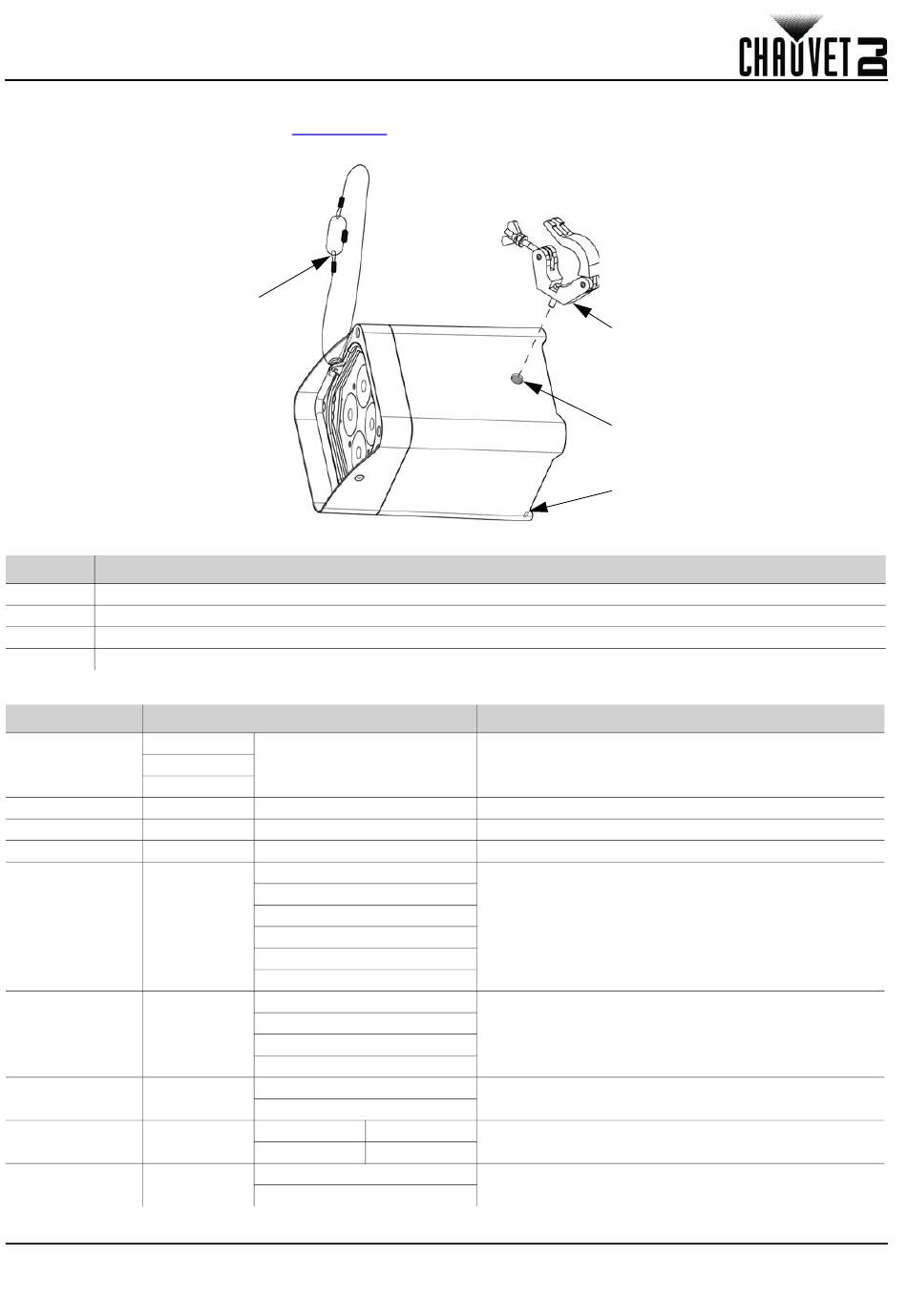

Mounting Diagram
Safety Cable

Control Panel Description

Button Function
<MENU> Exits from the current menu or function
<UP> Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN> Navigates downwards through the menu list and decreases the numeric value when in a function
<ENTER> Enables the currently displayed menu or sets the currently selected value into the selected function
Menu Map
Mode
DMX Mode
12CH
Preset Colors
Auto Programs
Speed
Custom Color
Mixing
Dimmer Mode
Infrared Mode
Wireless DMX
Passcode
PASS
Mode
3
QUICK REFERENCE GUIDE
Safety Notes.
Programming Levels
6-CH
8-CH d 1–512
C-- C 1–63
P-- P 1–4
S-- S 1–100
r 0–255
b 0–255
g 0–255
U--
A 0–255
W 0–255
P 0–255
OFF
dIM1
dIM
dIM2
dIM3
SEt
OFF
drCH
S-tr
dtCH
OFF
Description
Sets DMX personality and starting address
Selects a preset color
Sets auto program 1–4
Adjusts the auto program speed
Adjust the red, green, blue. amber, white, and UV
levels to create custom colors
Sets the dimmer curve: dIM1 (fast) to dIM3 (slow), or
oFF
ON
Turns infrared on or off
dr 1–16
Turns on wireless DMX and sets transmitter or
receiver channel
dt 1–16
ON
Locks the display. Passcode: <UP>, <DOWN>, <UP>,
<DOWN>, <ENTER>.
Mounting Clamp
M12 Threaded Mounting Hole
Kensington Security Slot
Freedom Flex H4 IP QRG Rev. 1
