3 | Safety information
Only use the device if it is completely free of faults, and with safety
and awareness in mind. If warnings or symbols are attached to the
luminaire, they must not be removed.
4 | Assembly / Mounting
Check the LED luminaire before installation to ensure it is complete and shows no
signs of damage. Do not use the luminaire or accessories if they are damaged, as
there is a risk of injury.
The LED luminaire comes fully assembled.The luminaire is attached via the delivered
holder made of detectable PP (holder and zip ties) or via optional mounting hardware:
INROLED_50 spring clip, steel galvanized, pair
INROLED_50 luminaire bracket, FDA conform, pair
Spare part: INROLED_50 zip ties, F+B, detectable PP, blue, pair 210200-13
When mounting the luminaire, make sure that the luminaire is
fastened securely and stably. If the luminaire falls down, its weight
poses a risk of injury!
5 | Connection
Suitable connection material, cables and accessories can be found in the accessory
range of LED2WORK.

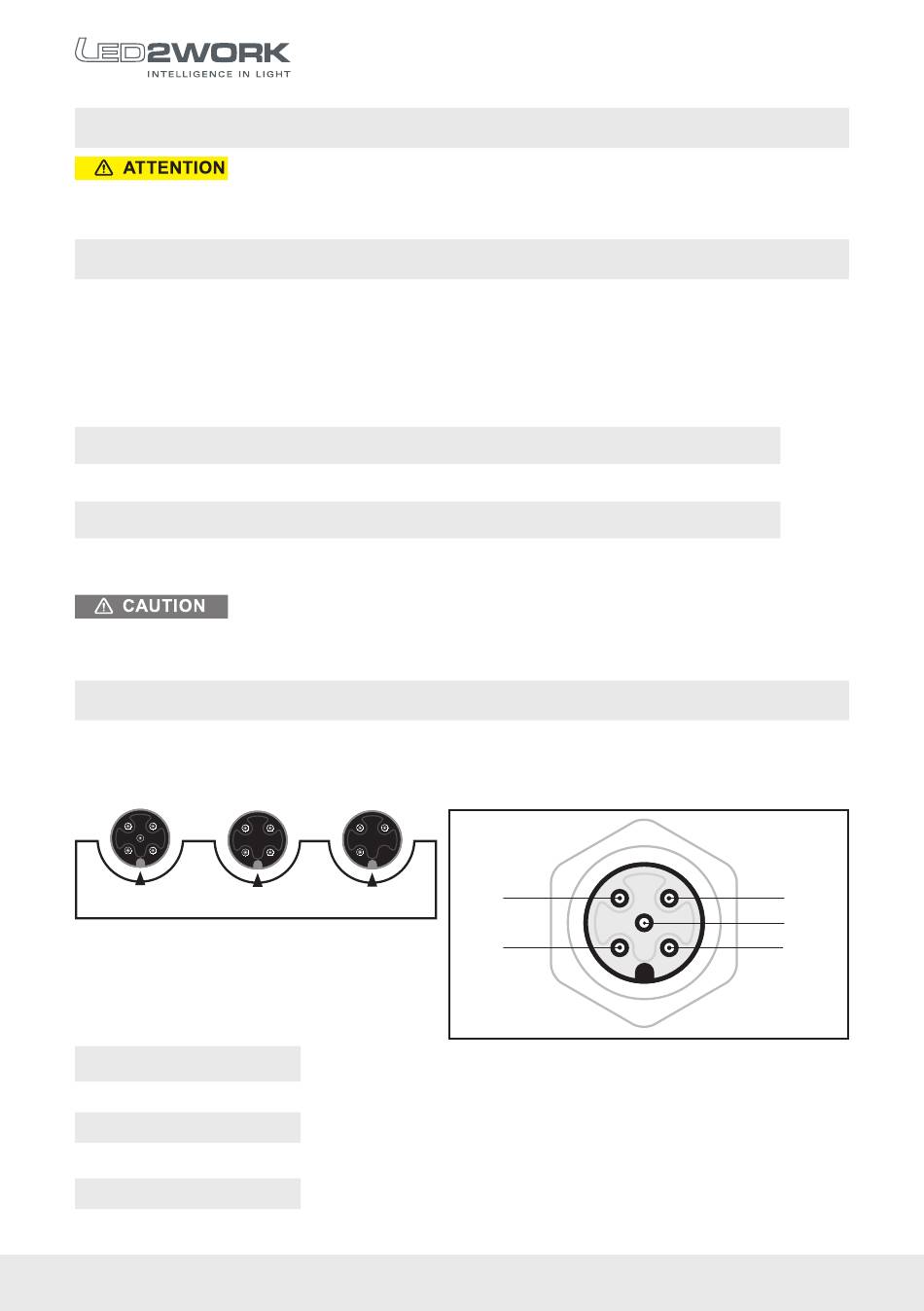

Possible variants of the M12 connector
PIN assignment
INROLED_50 Ecolab DC
PIN 1
=
24V DC
PIN 2
=
not used
PIN 3
=
GND
PIN 4
=
24V DC
PIN 5
=
not used
10 | BA INROLED_50 ECOLAB 24V DC . INROLED_50 ECOLAB RGB-W . BA 11/2020
4
1
Schematic drawing of M12 plug
PIN 3 = 0V DC. 24V DC for supply can be connected to
PIN 1 or PIN 4. It is not necessary to assign both PINs
(PIN 1 and PIN 4) at once!
Item no.
210200-17
210200-09
3
5
2
