AOP COMPAC T OZONE + UV-C LOW PRESSURE
AOP COMPAC T OZONE + UV-C SALT WATER LOW PRESSURE

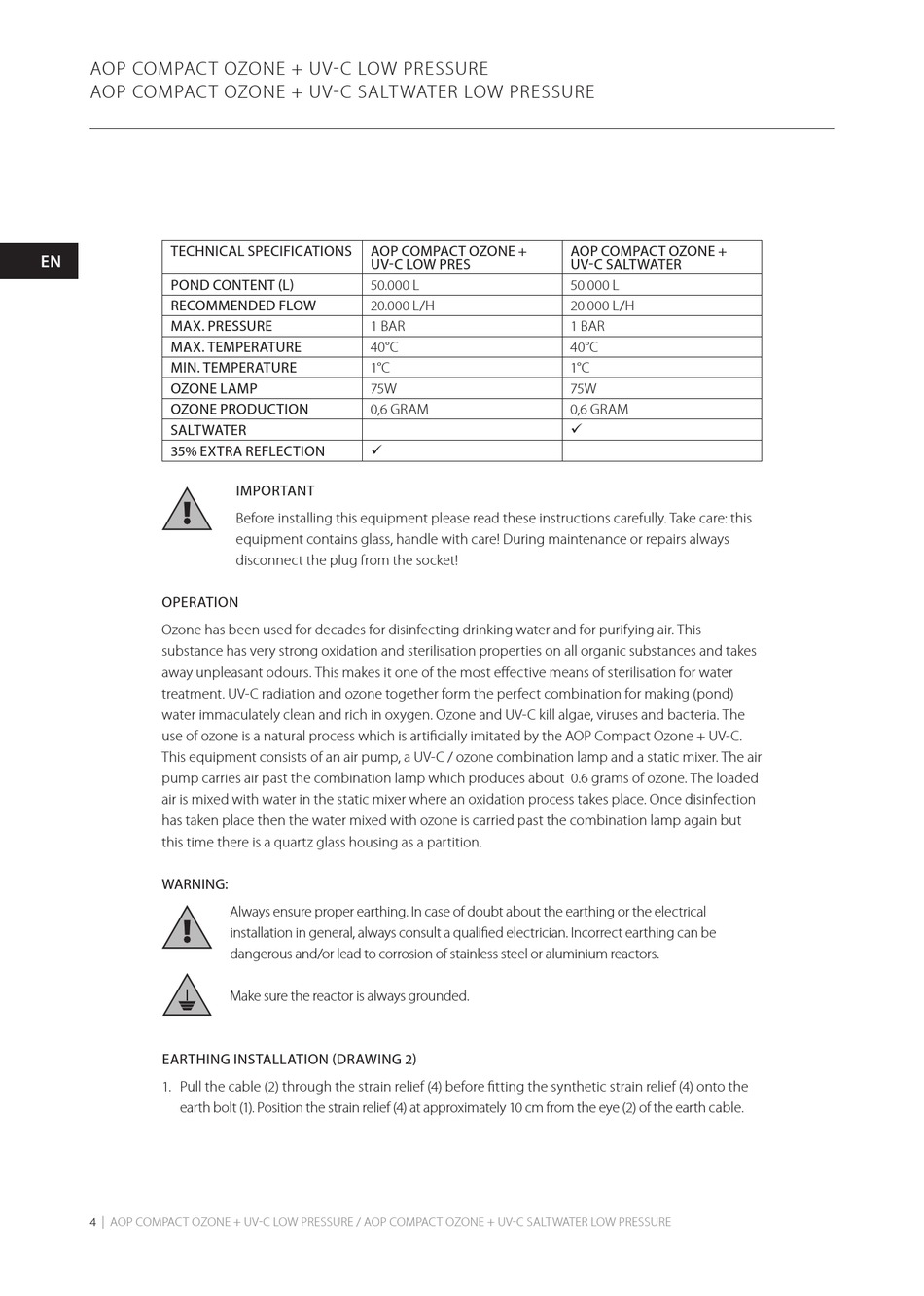

TECHNICAL SPECIFICATIONS
EN
POND CONTENT (L)
RECOMMENDED FLOW
MAX. PRESSURE
MAX. TEMPERATURE
MIN. TEMPERATURE
OZONE LAMP
OZONE PRODUCTION
SALTWATER
35% EXTRA REFLECTION

OPERATION

Ozone has been used for decades for disinfecting drinking water and for purifying air. This
substance has very strong oxidation and sterilisation properties on all organic substances and takes
away unpleasant odours. This makes it one of the most effective means of sterilisation for water
treatment. UV-C radiation and ozone together form the perfect combination for making (pond)
water immaculately clean and rich in oxygen. Ozone and UV-C kill algae, viruses and bacteria. The
use of ozone is a natural process which is artificially imitated by the AOP Compact Ozone + UV-C.
This equipment consists of an air pump, a UV-C / ozone combination lamp and a static mixer. The air
pump carries air past the combination lamp which produces about 0.6 grams of ozone. The loaded
air is mixed with water in the static mixer where an oxidation process takes place. Once disinfection
has taken place then the water mixed with ozone is carried past the combination lamp again but
this time there is a quartz glass housing as a partition.
WARNING:
EARTHING INSTALLATION (DRAWING 2)
1. Pull the cable (2) through the strain relief (4) before fitting the synthetic strain relief (4) onto the
earth bolt (1). Position the strain relief (4) at approximately 10 cm from the eye (2) of the earth cable.
4 | AOP COMPACT OZONE + UV-C LOW PRESSURE / AOP COMPACT OZONE + UV-C SALTWATER LOW PRESSURE
AOP COMPACT OZONE +
UV-C LOW PRES
50.000 L
20.000 L/H
1 BAR
40°C
1°C
75W
0,6 GRAM

IMPORTANT
Before installing this equipment please read these instructions carefully. Take care: this
equipment contains glass, handle with care! During maintenance or repairs always
disconnect the plug from the socket!
Always ensure proper earthing. In case of doubt about the earthing or the electrical
installation in general, always consult a qualified electrician. Incorrect earthing can be
dangerous and/or lead to corrosion of stainless steel or aluminium reactors.
Make sure the reactor is always grounded.
AOP COMPACT OZONE +
UV-C SALTWATER
50.000 L
20.000 L/H
1 BAR
40°C
1°C
75W
0,6 GRAM

