pROgRAM The eSC

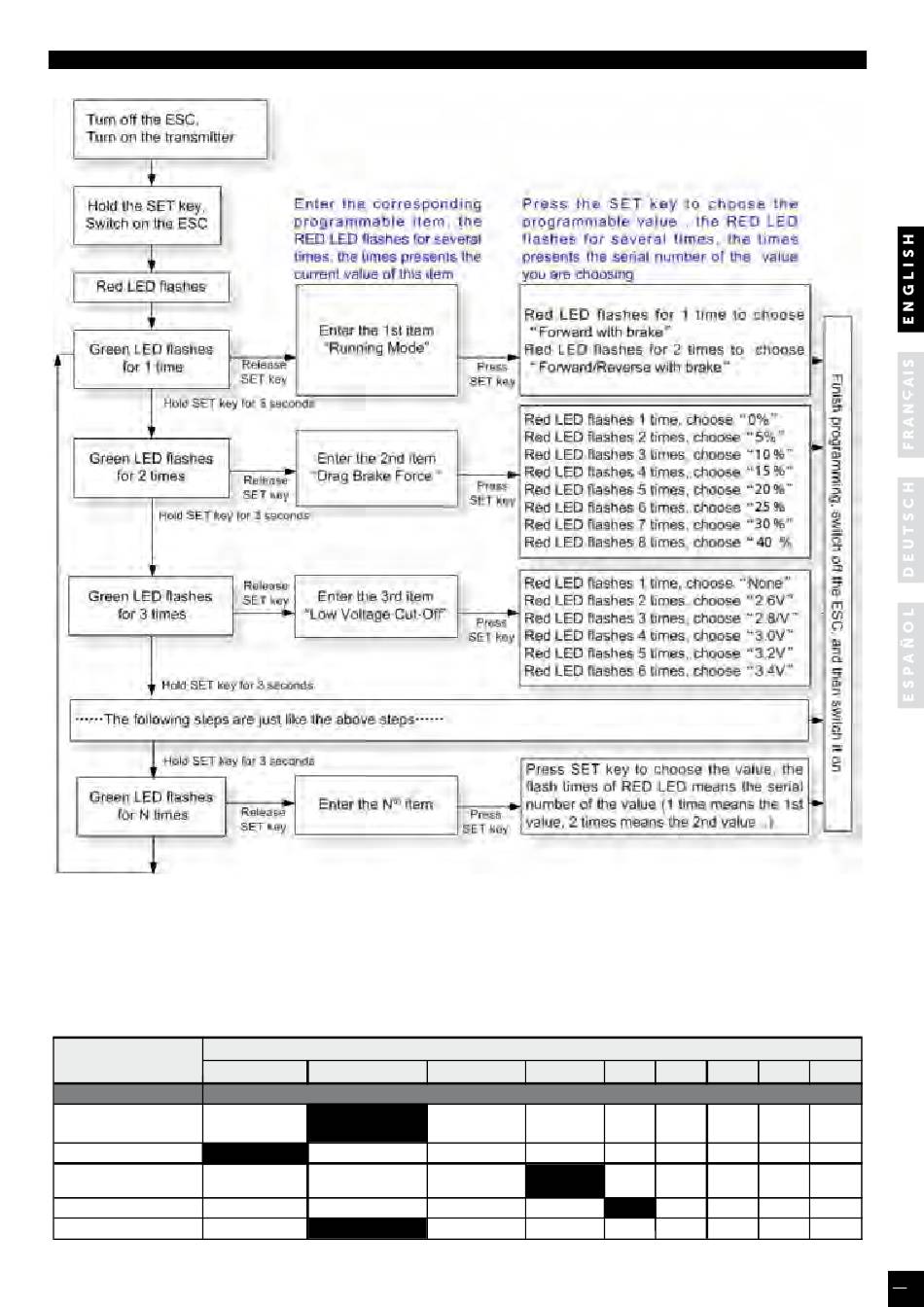

1. Program Method
note3: • In the program process, the motor will emit "Beep" tone at the same time when the LED is flashing.
• If the "N" is bigger than the number "5", we use a long time flash and long "Beep---" tone to represent "5", so it is
easy to identify the items of the big number.
For example, if the LED flashes as the following:
"A long time flash + a short time flash" (Motor sounds "Beep---Beep") = the No. 6 item
"A long time flash + 2 short time flash" (Motor sounds "Beep---BeepBeep") = the No. 7 item
"A long time flash + 3 short time flash" (Motor sounds "Beep---BeepBeepBeep") = the No. 8 item ...... And so on.
Programmable Items list
(italic texts in the above form are the default settings)
Programmable
Items

Basic Items

Forward Only
1. Running Mode
with Brake
2. Drag Brake Force
3. Low Voltage
Non-Protection
Cut-Off Threshold
4. Start Mode (Punch)
5. Max Brake Force
1 2
Forward/Reverse
with Brake
0% 5%
2.6V/Cell
Level1 Level2
50%
25 %
Programmable Value
3 4
10% 20% 40%
3.0V 3.2V
2.8V/Cell
/Cell
/Cell
Level3 Level4 Level5
75% 100% Disable
5 6 7 8
60% 80% 100%
3.4V
/Cell
Level6 Level7 Level8 Level9
9
