Installing the Vehicle Cradle
4
Downloaded from www.Manualslib.com

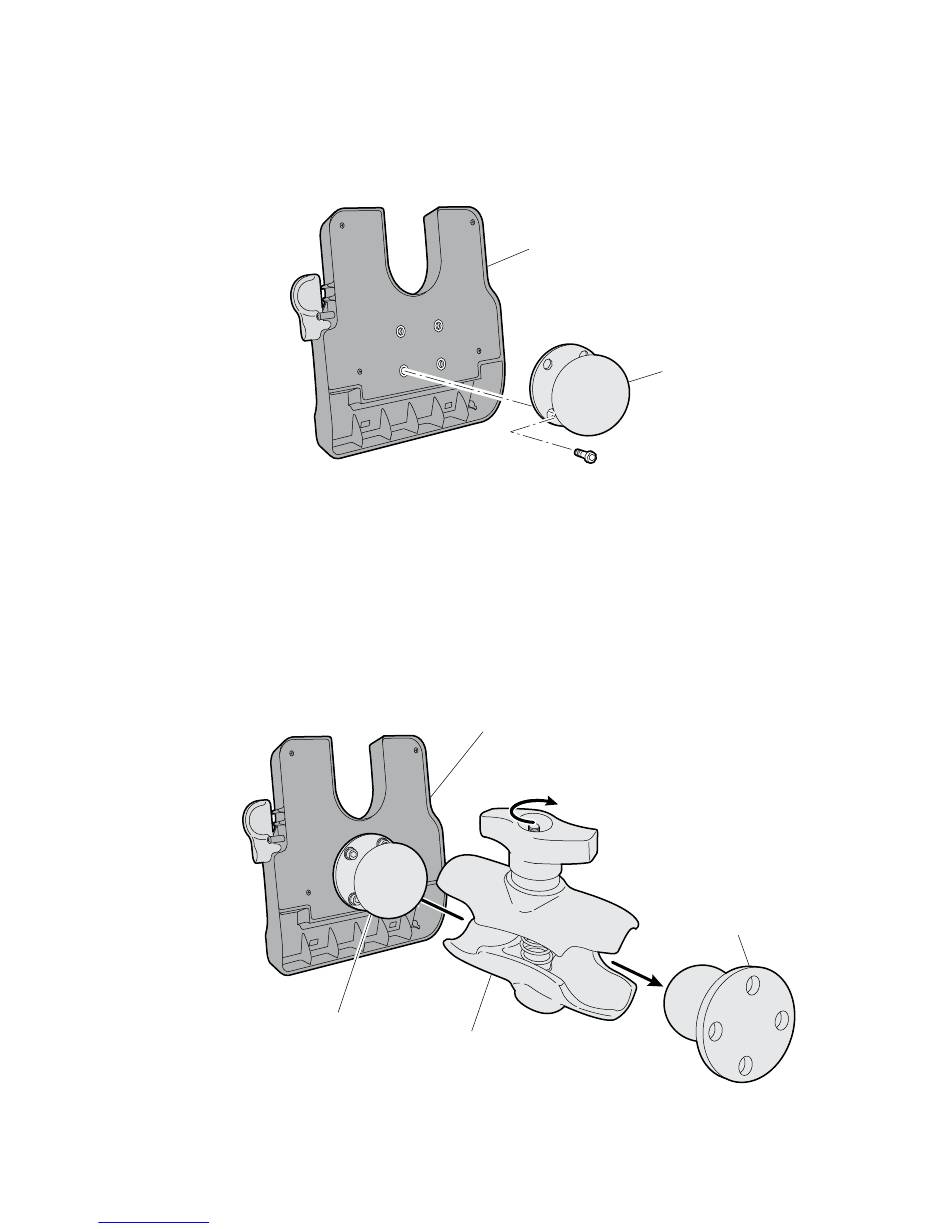

1 Attach the RAM cradle base to the vehicle cradle using the
four button head hex screws and the hex key.
2 Attach the RAM vehicle base to your vehicle using the four ¼-
inch-flathead hex screws and nuts.
3 Attach the vehicle cradle to the RAM vehicle base by placing
the mounting arm over the two bases and then tightening
the mounting arm.
Cradle
base
manuals search engine
Vehicle
cradle
Hex screw
(4 places)
Vehicle
cradle
Mounting arm
Cradle base
Vehicle
base
