User Manual

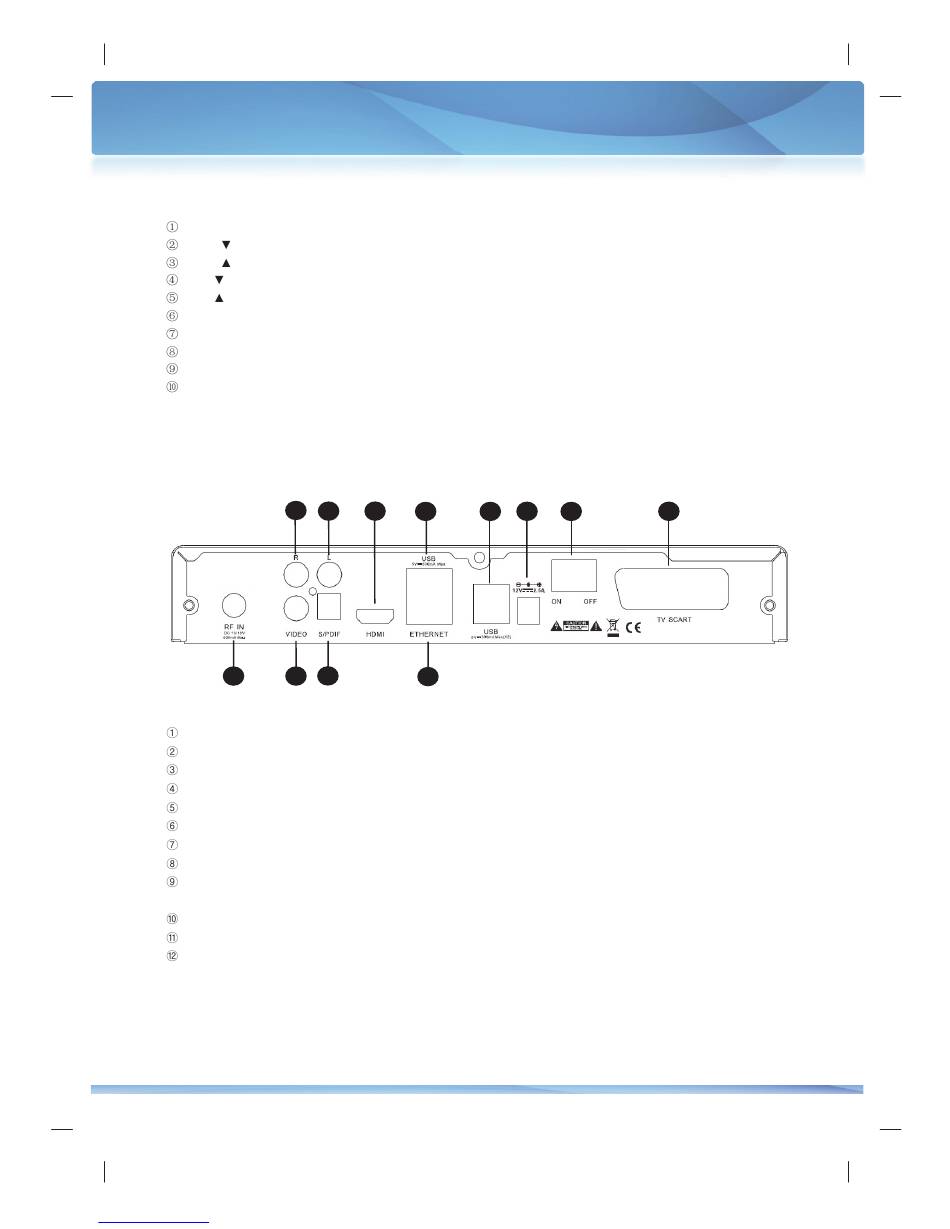

The Set top box has a wide range of connections on the back.
Check what connections your television has in comparison with the digital receiver.
Note: The image shown may differ from the actual product.
Downloaded from www.Manualslib.com
Power: To switch Set top box in and out of standby mode.
VOL : Volume control
VOL : Volume control
CH : Switches channel
CH : Switches channel
LED: Power indicator
IR in: Receiver of Remote Control
Front display: Displays the current service in operation mode.
USB: Connect a USB storage device
Smartcard reader slot: Smartcard slot is provided
1
2 3
9 10 11
AUDIO R: Stereo audio output socket for the television set or the audio-video receiver (red).
AUDIO L: Stereo audio output socket for the television set or the audio-video receiver (white).
HDMI: Audio and video output socket for the high definition television set.
USB: Connect a USB storage device
USB: Connect a USB storage device
DC IN: Connect the detachable DC power adapter
POWER ON/OFF SWITCH: Control power on and off.
TV SCART: Audio and video output socket for the television set.
RF IN (DISH IN): Satellite broadcasting signal input socket for the tuner
(Current: Max.400mA with overload protection).
VIDEO: Composite video output socket for the television set (yellow).
S/PDIF OPTICAL: Optical-type digital audio output socket for the audio-video receiver.
ETHERNET: Local area network port.
manuals search engine
4 5 6 7
12
6
Full HD Hybrid Set top box
