Full HD Hybrid Set top box
2)
A.
For the sake of the best picture quality, especially for digital TV, HDMI connection is recommended. Most HDTVs
have HDMI connectors to ensure the highest picture quality. IN the rear panel of Set top box one HDMI
connector is available for this purpose. Connect your TV to Set top box using a HDMI cable as follows.
B.
This secondly recommended TV connection for TV is via Composite cable. Set top box provides Composite
video has normally three connectors at the both end; one Video (Yellow) and two Audio (White / Red). Connect
your TV to Set top box as follows. To use the audio amplifier connect S/PDIF cable instead of two Audio cables.
C.
In case your TV is analogue TV, SCART cable is the most common method. Connect your TV to Set top box
using SCART cable as follows.
Downloaded from www.Manualslib.com

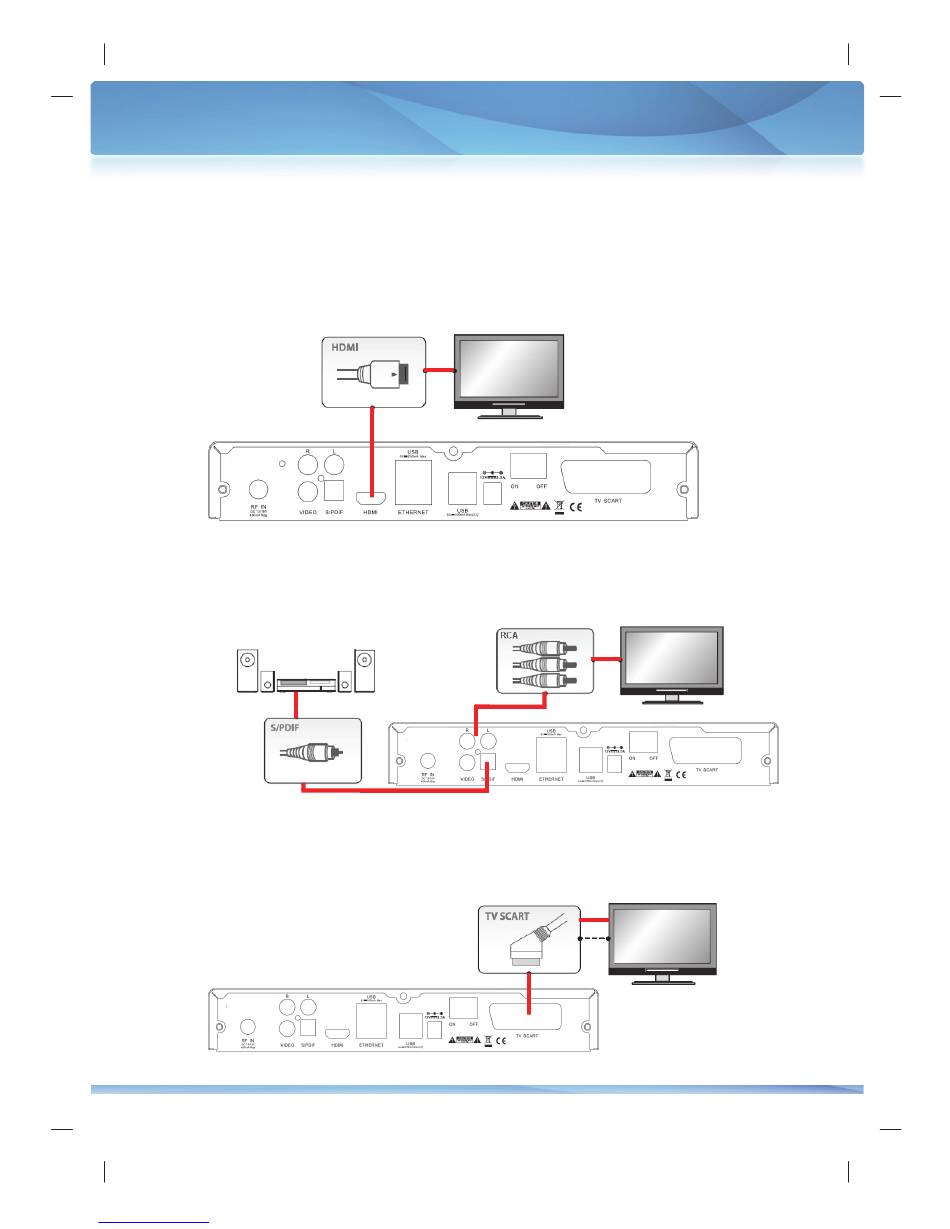

Connecting the TV

Connecting TV via HDMI cable
Connecting TV via Component Cable and S/PDIF Cable
Connecting TV via SCART cable (with SCART model only)
