Lighting Technologies GLOSS LED 10 Montageanleitung Seite 7

Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

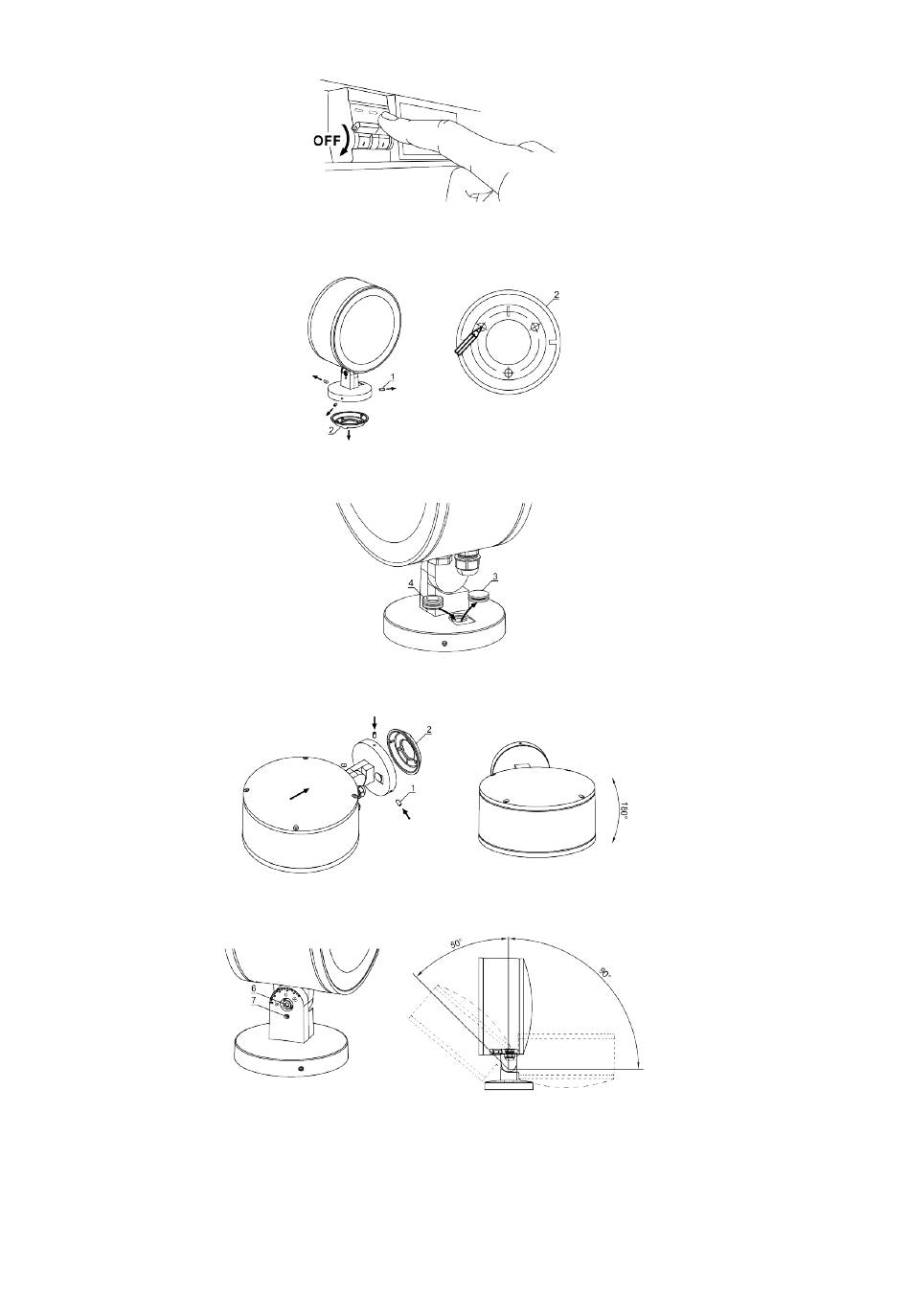

2. Switch mains power off. Unpack the luminaire.
3. Release 3 lock screws (1), remove base (2) from the luminaire. Place the base on bearing
surface and make markings. According to the marks made fix the base (2) to bearing surface.
4. For hidden wiring remove plug (4) from rotary bracket (3) and place bushing (5) on its place, the
busing is included in delivery set. Next put luminaire wire through the bushing (5).
5. Attach the luminaire to the base (2) and lock it in desired position with 3 lock screws (1),
tightening torque 3.5 Nm
6. Release screws (6) and (7). Adjust luminaire position. Tighten screws (6) and (7) with 5 Nm and
3.5 Nm of torque accordingly
7
