APPENDIX T568B CONNECTION STANDARD
The cable exists in both stranded and solid conductor forms. The connector and cable topology is
defined by TIA/EIA-568-B. "RJ-45" connectors are used for connecting category CAT-5 cable.
The connection according T568B schema is a straight trough connection (pin 1 to 1, pin 2
to 2, etc).

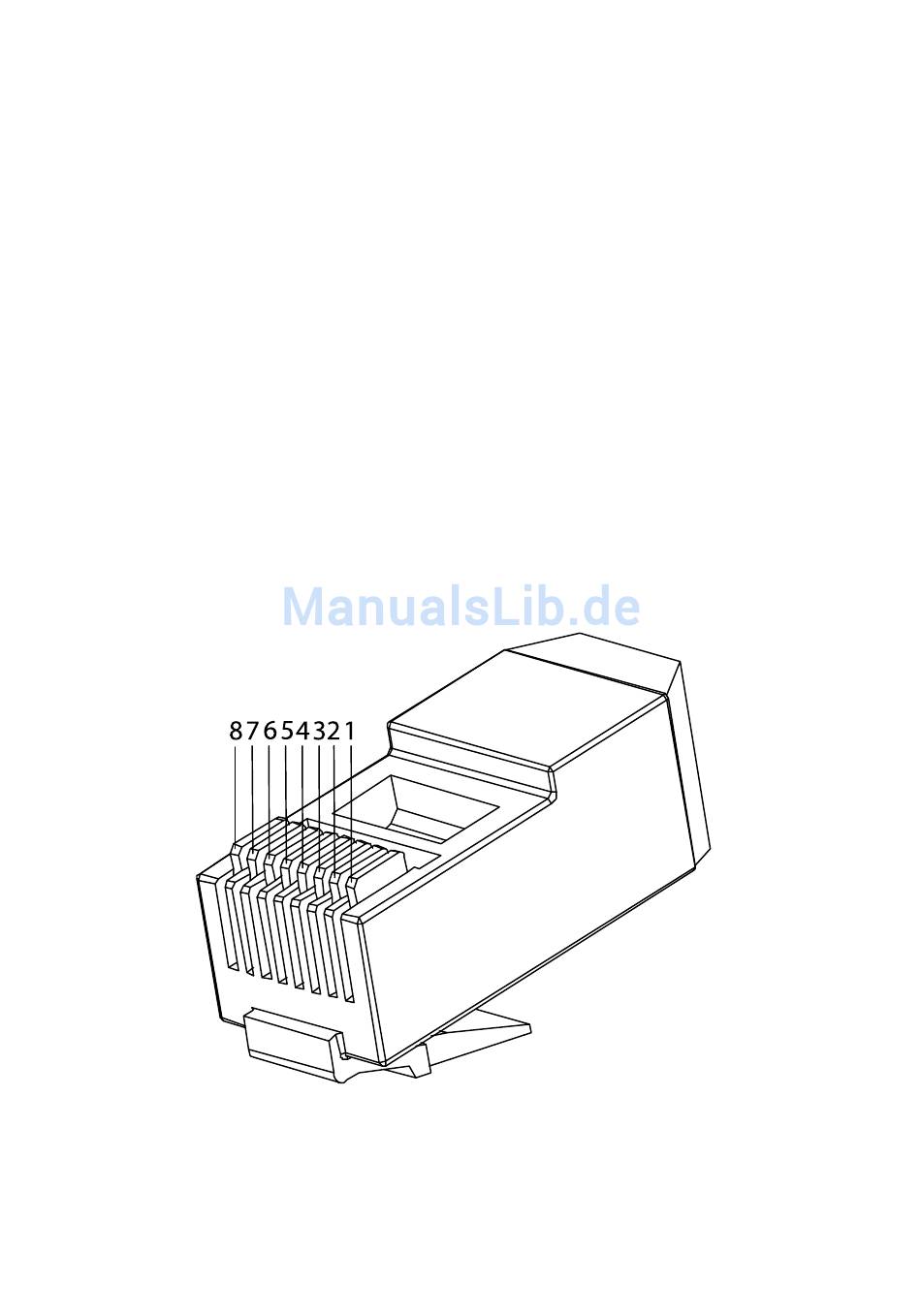

RJ-45 Pin
1 _______ White/Orange _______ 1
2 _______ Orange ____________ 2
3 _______ White/Green ________ 3
4 _______ Blue _______________ 4
5 _______ White/Blue _________ 5
6 _______ Green _____________ 6
7 _______ White/Brown _______ 7
8 _______ Brown _____________ 8
MegaView60/61™
RJ-45 Pin
