Operating Instructions
Precision Mechanic Vice, 360°
Item No. 1897813
Intended Use
This product can be clamped to a suitable work surface and is intended for light work such as hobbyists,
metalwork and jewelry. A ball joint rotates and locks at different angles to help position the work piece. The
vertical and horizontal V-grooved jaws come with removable rubber pads to protect delicate surfaces from
marring.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product
for purposes other than those described above, the product may be damaged. In addition, improper use can
result in other hazards. Read the instructions carefully and store them in a safe place. Make this product
available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company names and
product names are trademarks of their respective owners. All rights reserved.
Delivery Content
• Vice
Up-to-date Operating Instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the
QR code shown. Follow the instructions on the website.
Explanation of Symbols
The symbol with the exclamation mark in the triangle is used to indicate important information in
these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety Instructions
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee.
a) General Information
• The product is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become dangerous playing
material for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity,
moisture, steam and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and protect it
from any accidental use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
• Consult an expert when in doubt about the operation, safety or connection of the product.
• Maintenance, modifications and repairs must only be completed by a technician or an
authorised repair centre.
• If you have questions which remain unanswered by these operating instructions, contact our
technical support service or other technical personnel.
b) Vice
• Do not remove the rubber gaiter boot, it helps keeps dirt and debris away from the ball joint.
This product must be mounted to a solid surface capable of supporting the vice and work
piece.
• Check that the worksurface can support the maximum load from the vice.
• Make sure the work piece is securely held in place before beginning any work.
• Do not try to increase the clamping force by adding an extension to any of the handles. Over
tightening may damage the worksurface, clamped object and vice. Use the minimum clamping
force required to do the job.
• DO NOT OVERREACH. Keep proper footing and balance at all times.
• USE EYE AND HAND PROTECTION. Wear approved safety impact goggles and work gloves
during use.
• Operating instructions

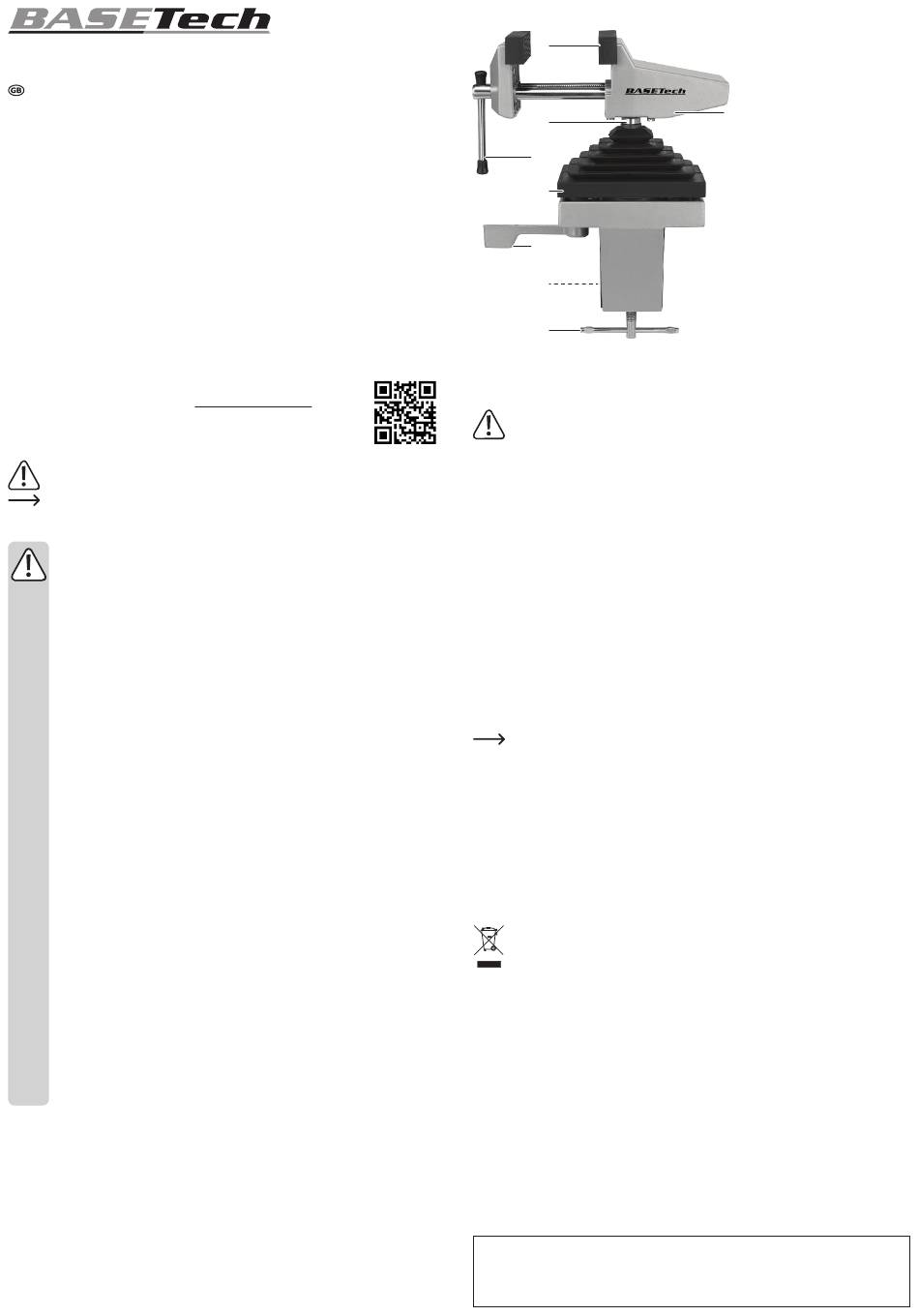

Operating Elements
1
2
3
4
5
6
7
Operation
a) Rubber Jaw Pads
Use the rubber jaw pads to help prevent scratching or marring of delicate work pieces.
Do not use the rubber pads to grip objects that may get hot during work e.g. soldering and
brazing. The heat may cause the pads to deform or burn.
• The rubber jaw pads are designed to fit over the metal jaws (1).
• They should be used to protect delicate work pieces from getting scratched or marred, and to improve
grip.
b) Clamping the Vice
• Unwind the clamp screw handle (7) until clamp is wide enough to fit onto the work surface.
• Slide the clamp as far as you can onto the work surface checking that the clamp jaws make good contact
with the surface.
• Tighten the screw handle (7) to secure the vice to the work surface.
c) Clamping the Work Piece
• Unwind the slide screw handle (3) to open the jaws (1).
• Line the work piece up between the jaws.
• Wind the slide screw handle (3) until the jaws make good contact with the work piece.
• Check that the work piece is securely clamped, and the maximum surface area of the jaws support the
object.
d) Vice Swivel
• Turn the swivel lever (5) anticlockwise to unlock the swivel arm.
To help release the swivel when unlocked, you may need to release the holding tension by
nudging the vice body (8) with the palm of your hand.
• Adjust the swivel arm (2) as needed.
• Tighten the swivel lever (5) to lock the position.
Care and Cleaning
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can cause
damage to the housing and malfunctioning.
• Clean the product with a dry, fibre-free cloth.
• Keep the vice dry.
Disposal
At the end of its service life, dispose of the product in accordance with applicable regulatory
guidelines. You thus fulfill your statutory obligations and contribute to the protection of the
environment.
Technical Data
Vice body material ................................ Aluminium
Swivel ................................................... 360°
Jaw width .............................................. 70 mm
Jaw opening ......................................... 65 mm (55 mm with jaw pads)
Throat depth ......................................... 41 mm
Clamp jaw ............................................. max. 47 mm
Jaw pad size ......................................... 70 x 20 mm
Operating / storage conditions .............. 0 to +40°C, 10 – 90% relative humidity
Dimensions (W x H x D) ....................... 147 x 130 x 305 mm
Weight .................................................. 1.6 kg
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights
including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication
represents the technical status at the time of printing.
Copyright 2019 by Conrad Electronic SE.
8
1
Jaw (with rubber pads)
2
Swivel arm
3
Slide screw handle
4
Rubber gaiter boot
5
Swivel lever
6
Clamp shaft with pressure pad tip
7
Clamp screw handle
8
Vice body
*1897813_v2_0819_02_dh_m_en
