Please read these operating instructions carefully prior to
operating the unit and keep them for later use.

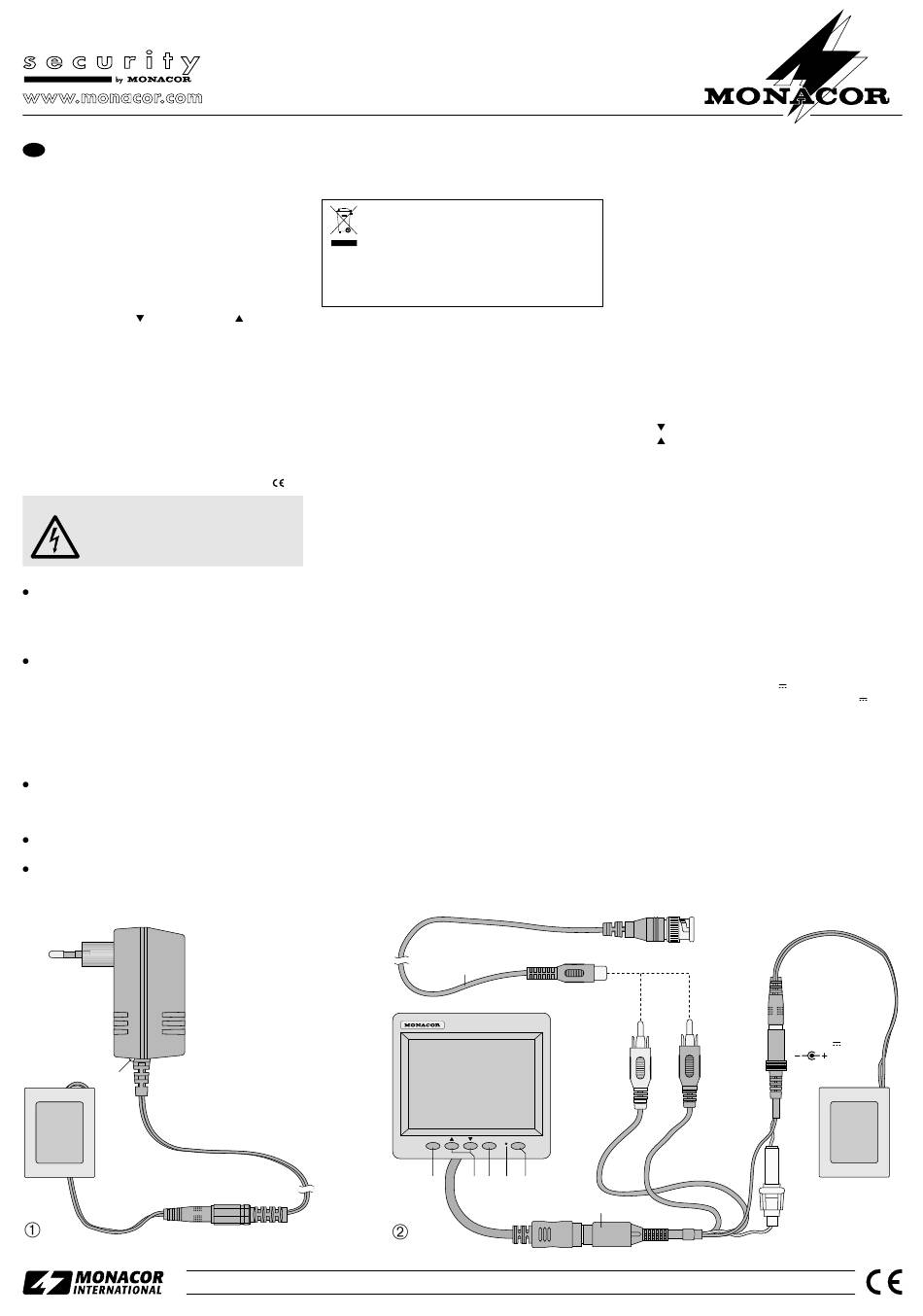

1 Operating Elements and Connections
1 Charging LED:
red = rechargeable battery is being charged,
green = charging is terminated
2 Adapter cable for connection of a video source with
BNC video output to one of the video inputs
3 Key for switching between the video inputs
4 Keys for reducing ( ) and increasing ( ) the bright-
ness of the picture
5 Key for switching between mirror-inverted and normal
picture display
6 POWER LED
7 Key for switching on and off
8 Adapter cable with phono plugs for the video inputs
and an inline jack for the power supply
2 Safety Notes
The units (monitor and charger) correspond to all required
directives of the EU and are therefore marked with
WARNING
The charger is supplied with hazardous
mains voltage. Leave servicing to skilled
personnel only. Inexpert handling may
cause an electric shock hazard.
It is essential to observe the following items:
The monitor set is suitable for indoor use only. Protect
the components of the set against dripping water and
splash water, high air humidity, and extreme tempera-
tures (admissible ambient temperature range -10 °C to
+50 °C).
Do not set the monitor into operation, and immediately
disconnect the charger from the mains socket if
1. there is visible damage to the units or to the re-
chargeable battery,
2. a defect might have occurred after a drop or similar
accident,
3. there are malfunctions.
The defective units must in any case be repaired by
skilled personnel.
For charging the rechargeable battery only use the
supplied charger. Never throw the battery into the fire
and protect it against mechanical damage (e. g. due to
being dropped)!
For cleaning only use a dry, soft cloth, by no means
chemicals or water.
No guarantee claims for the set and no liability for any
resulting personal damage or material damage will be
100 – 240 V~
1
LI-ION BATTERY
®
Copyright
CCTV-2TEST
accepted if the units or the rechargeable battery are
used for other purposes than originally intended, if they
are not correctly connected, operated, or not repaired in
an expert way.
If the units are to be put out of operation defini-
tively, take them to a local recycling plant for dis-
posal which is not harmful to the environment.
Never put the rechargeable battery into the household
rubbish but only take it to a special waste disposal (e. g.
directly back to your retailer or take it to a public collec-
tive container).
3 Applications
This monitor set is ideally suited for the mobile use, e. g. for
testing the components of a surveillance system. The set
includes: a TFT LCD colour monitor with 2 video inputs
and switchable picture display (normal/mirror-inverted),
2 connection cables, a lithium ion battery for the power
supply of the monitor, a charger for the rechargeable
battery, and a nylon bag with window. The bag is supplied
with 2 carrying straps and a cuff which can be used to fix
the bag to the arm by means of Velcro fasteners. This way
both hands are free e. g. to adjust a camera, and at the
.
same time the display of the monitor can clearly be viewed.
4 Setting into Operation
The monitor is accommodated in the front compartment of
the bag, the rear compartment includes the adapter cable
(8) with phono plugs and power supply inline jack and the
rechargeable battery connected to the cable; the monitor
is connected via a mini DIN inline jack to the adapter cable
→ fig. 2.
1) Prior to setting into operation, recharge the recharge-
able battery (fig. 1):
a Disconnect the battery from the adapter cable and
connect it to the charger.
b Connect the charger to a socket (100 – 240 V~,
50/60 Hz). During charging, the charging LED (1)
shows red.
c If the charging LED shows green, the battery is fully
charged. Then disconnect the battery from the
charger, and disconnect the charger from the socket.
2) Connect the recharged battery to the inline jack of the
adapter cable again and put it into the bag.
3) Connect the phono plugs led out on the rear side of the
bag to the video outputs of the signal sources (e. g.
cameras): the yellow plug (video input 1) to the video
output of the first signal source, the black plug (video
input 2) to the video output of the second signal source.
If the signal source has a BNC video output, con-
nect this output via the BNC adapter cable (2) to the
respective video input.
©
by MONACOR INTERNATIONAL GmbH & Co. KG, Bremen, Germany. All rights reserved.
Order No. 18.0630
2
®
3.5 INCH TFT LCD COLOR VISION
Video 1
yellow
V1/V2
V1/V2
Bright
N/R
POWER
3
4 5 6 7
8
4) For hanging the bag around your neck or shoulder,
attach one strap or both straps to the lateral metal
loops of the bag as desired. For attaching the bag to
the arm with the cuff, proceed as follows:
a Fold the cover of the bag backward and attach it to
the Velcro strip on the rear side of the bag. Now the
inside of the cover provided with a large Velcro sur-
face forms the rear side of the bag.
b The cuff is fixed to the bag by means of its central
Velcro surface and its four Velcro flaps: Attach the
Velcro surface to the rear side of the bag and guide
the flaps forward and fix them to the two Velcro
strips next to the window.
c Place the cuff around the forearm and close it with
the Velcro fastener.
5) To switch on the monitor, press the POWER switch (7);
the POWER LED (6) lights up.
6) It is possible to switch between the two video inputs
with the key V1/V2 (3).
7) Adjust the picture brightness with the arrow keys (4):
key
: picture becomes darker,
key
: picture becomes brighter
8) It is possible to switch between mirror-inverted and nor-
mal display with the key N/R (5).
9) To switch off the monitor, press the POWER switch, the
POWER LED will be extinguished.
Note: As the monitor has a low current consumption
even if it is switched off, it should be disconnected
from the battery after operation so that the battery
will not unnecessarily be discharged.
5 Specifications
Diagonal screen size: 8.8 cm (3.5")
Colour system: . . . . . PAL/NTSC (automatic switching)
Resolution: . . . . . . . . hor. 480 x vert. 234 pixels
2 video inputs: . . . . . 1 Vpp/75 Ω
Ambient temperature: -10 °C to +50 °C
Power supply: . . . . . 12 – 14 V , 300 mA via supplied
lithium ion battery (12.6 V
1100 mAh, charging time approx.
2 – 3 hours via supplied charger)
Dimensions: . . . . . . . 90 x 83 x 25 mm
Weight: . . . . . . . . . . . 590 g (complete set)
Connections
video 1 and 2: . . . . phono plug (1 adapter cable with
BNC inline jack is supplied)
power supply: . . . . low-voltage inline jack for a plug
with the dimensions 5.5/2.1 mm
(Ø outside/inside),
inside contact = positive pole
Subject to technical modification.
