Intended Use - TREND WORKTOP TRUE CUT Übersetzung Der Originalanleitung

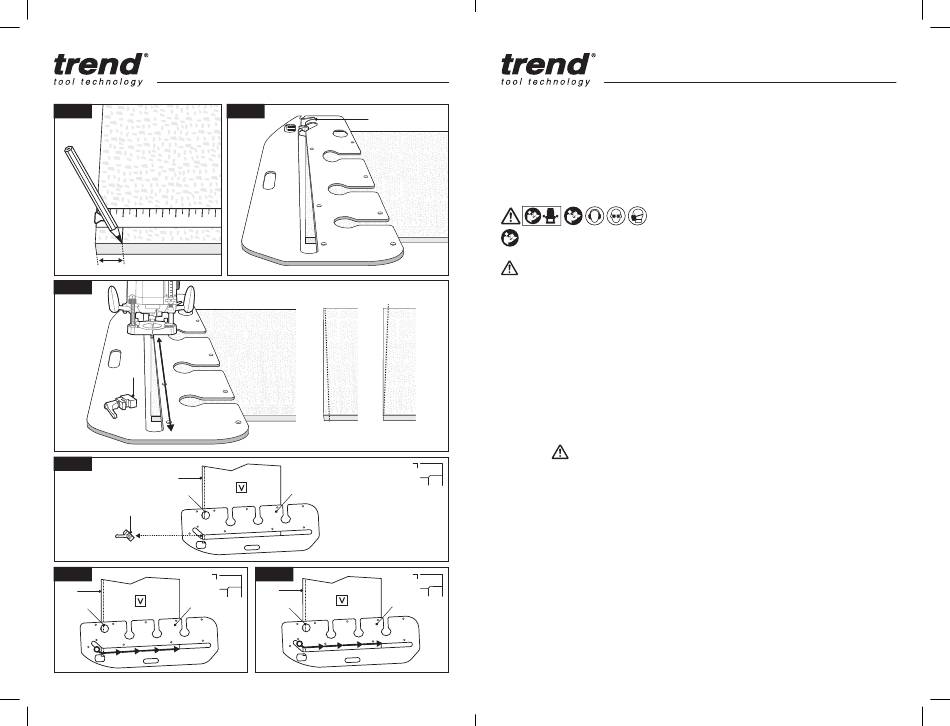

Fig. 5c
1 2 3 4 5 6 7
Fig. 6
E
RH
Fig. 7a
PF
CL
E
RH
F7c)
Fig. 7b
PF
CL CL
WORKTOP TRUE CUT
Fig. 5d
E
8 9
CL
RH
Fig. 7c
RH
PF
CL
PF
CL
E
- 4 - - 4 -
EN – WORKTOP TRUE CUT
Thank you for purchasing this Trend product,
we hope you enjoy many years of creative
and productive use.
Please remember to return your guarantee
card within 28 days of purchase.
The following symbols are used throughout
this manual:
Refer to the instruction manual of your
power tool.
Denotes risk of personal injury, loss
of life or damage to the tool in case of non-
observance of the instructions in this manual.
This unit must not be put into service until it
has been established that the power tool to
be connected to this unit is in compliance
with 2006/42/EC (identified by the CE marking
on the power tool).

INTENDED USE

This device is intended for use with a Trend
12mm thick worktop jig, plunge router with
suitable guide bush and router cutter fitted to
rout an out of square worktop joint in laminate
covered particle board, natural timber and
other solid surface materials.
SAFETY
RH
Please read and understand the safety points
in these instructions as well as you power tool
instructions.
PF PLEASE KEEP THESE
CL INSTRUCTIONS IN A SAFE PLACE.
E
Safety Points
1. Disconnect power tool attachment from
power supply when not in use, before
RH
servicing, when making adjustments
and when changing accessories such as
CL cutters. Ensure switch is in "off" position
and cutter has stopped rotating.
PF
2. Read and understand instructions
CL CL
supplied with power tool, attachment
and cutter.
E
EN - WORKTOP TRUE CUT
3. Current Personal Protective Equipment
(PPE) for eye, ear and respiratory
protection must be worn. Keep hands,
hair and clothes clear of the cutter.
4. Before each use check cutter is sharp
and free from damage. Do not use if
cutter is dull, broken or cracked or if any
damage is noticeable or suspected. Only
use tools for woodworking to EN847
safety standard. Ensure cutting tool is
suitable for application.
5. The maximum speed (nmax) marked on
tool or in instructions or on packaging
shall not be exceeded. Where stated, the
speed range should be adhered to.
6. Insert the shank into the router collet
at least all the way to the marked line
indicated on the shank. This ensures
at least 3⁄4 of the shank length is held
in collet. Ensure clamping surfaces are
clean.
7. Check all fixing and fastening nuts, bolts
and screws on power tool, attachment
and cutting tools are correctly
assembled, tight and to correct torque
setting before use.
8. Ensure all visors, guards and dust
extraction is fitted.
9. The direction of routing must always
be opposite to the cutter's direction of
rotation.
10. Do not switch power tool on with the
cutter touching the workpiece.
11. Trial cuts should be made in waste
material before starting any project.
12. Repair of tools is only allowed according
to tool manufacturers instructions.
13. Do not take deep cuts in one pass, take
shallow passes to reduce the side load
applied to the cutter.
CL
14. User must be competent in using
woodworking equipment before using
our products. Dress properly, no loose
clothing/jewellery, wear protective hair
covering for long hair.
15. Consider working environment before
using tools. Ensure working position is
comfortable and component is clamped
securely. Keep proper footing and
balance at all times. Check work area for
CL obstructions. Keep control of power tool
at all times.
