4-bay RAID System with LCM Panel
3

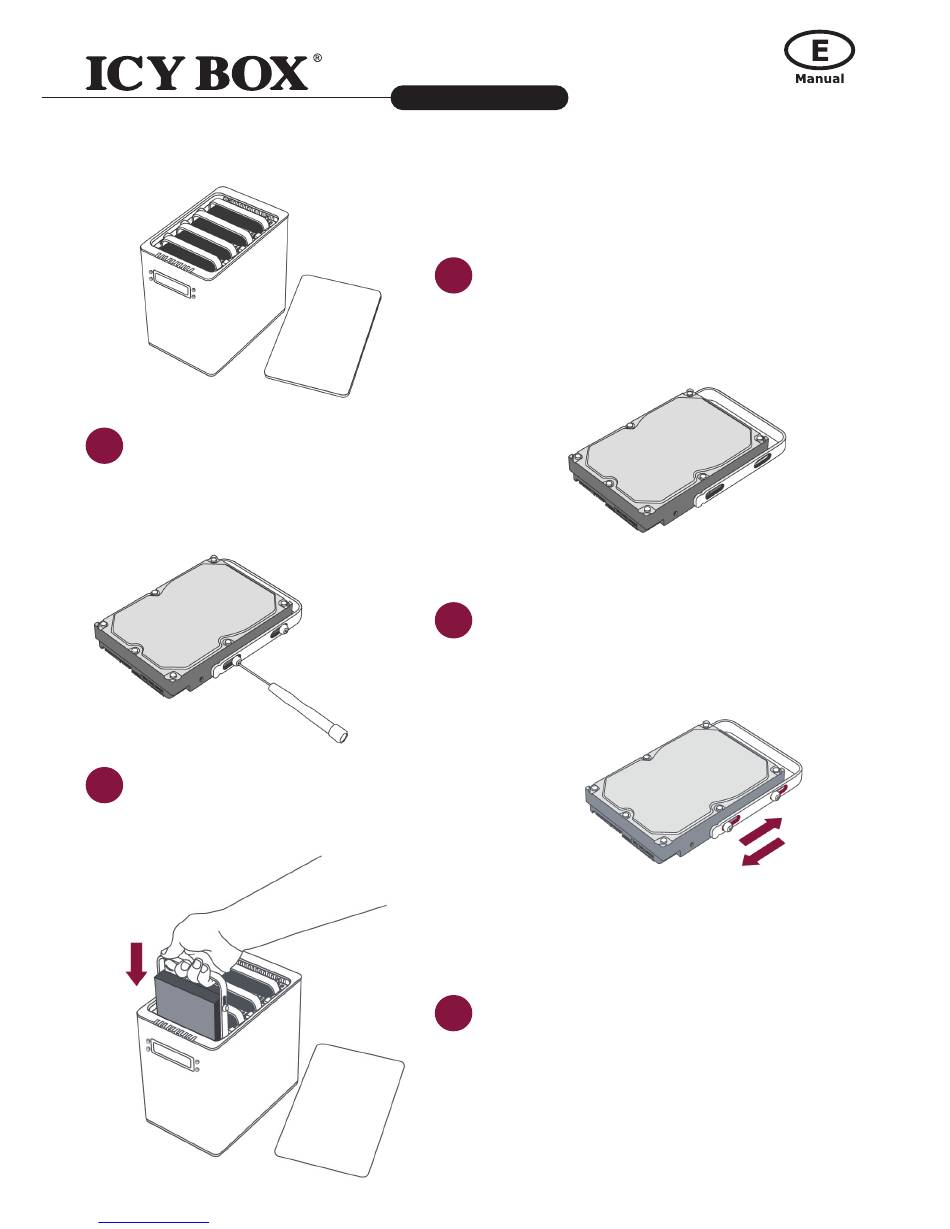

Position the handle to the HDD end, which is
facing away from the interface connectors, and
align it with the screw hole openings.
5
Finally, test slide the handle to make sure that the
holes glide smoothly on the screw guides. Repeat
the same procedures for the rest of HDDs.
Downloaded from www.Manualslib.com manuals search engine
IB-RD3264+USE2
2
Take out the handles from the RAID System itself
and locate the HDD screws in the packaging box.
4
Fasten the handle onto the HDD by inserting and
tightening the screws on both ends of the handle.
6
Align the handle with the guide rails and slide the
HDD into the indicated slot. Firmly push down-
ward until a "thump" sound is heard. Repeat the
same procedures for the rest of HDDs.
7 7
