C H a I n r I n G I n s T a l l a T I o n
If you are replacing worn rings with a new pair of the same model, or replacing with SRAM Red TT
chainrings, re-calibration is not required.
Your zero offset values will be different than those you have previously noted.
When installing chainrings you must align the chainring tabs so they are in line with the crankarm.
Tighten the chainring bolts according to the manufacturer's instruction. Tighten SRAM steel chainring
bolts to 10 N•m (88.5 in-lb).

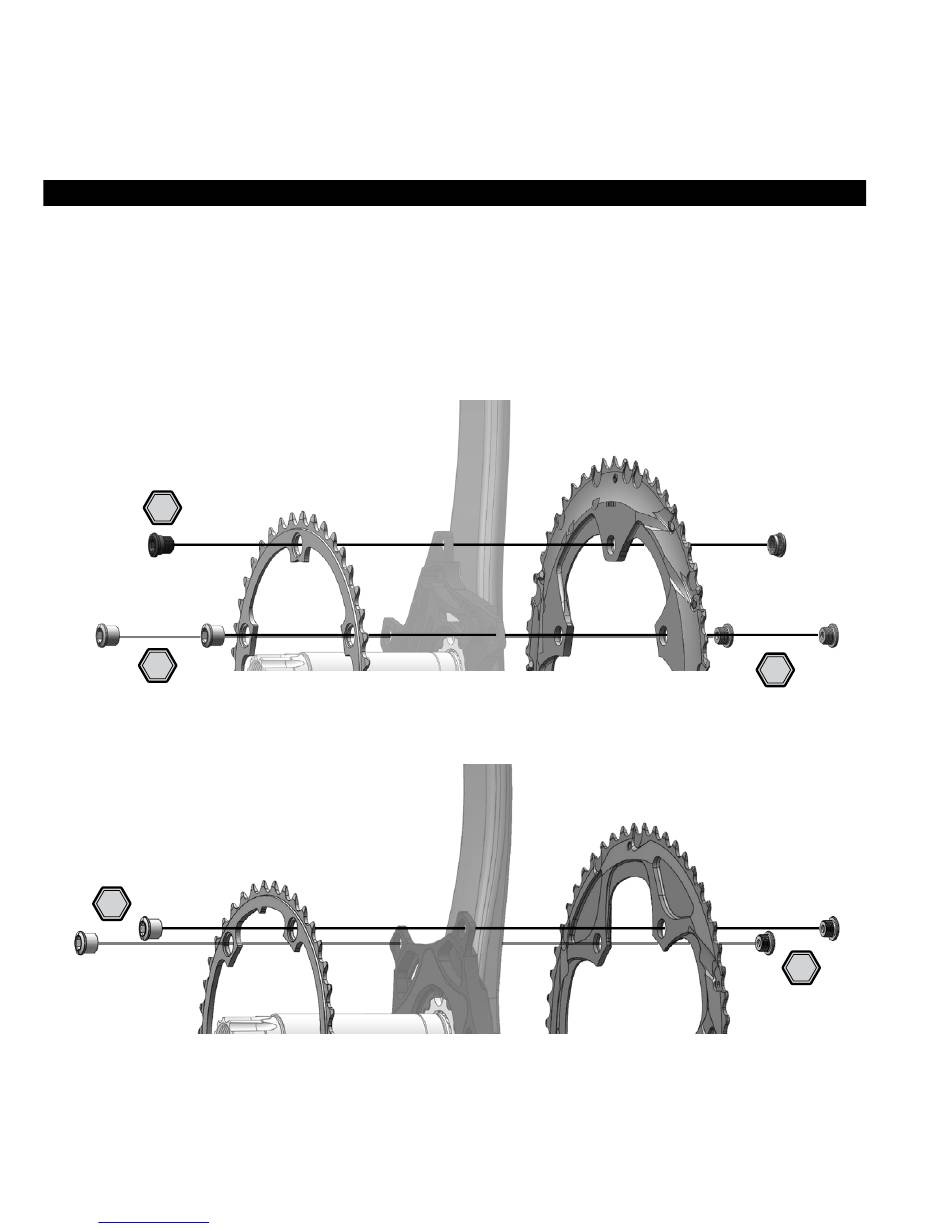

Hidden bolt crank
5
6
non-hidden bolt crank
6
14

CHAINRING INstAllAtIoN

Downloaded from www.Manualslib.com manuals search engine
Knurled edge
Chainring bolt
5
5
