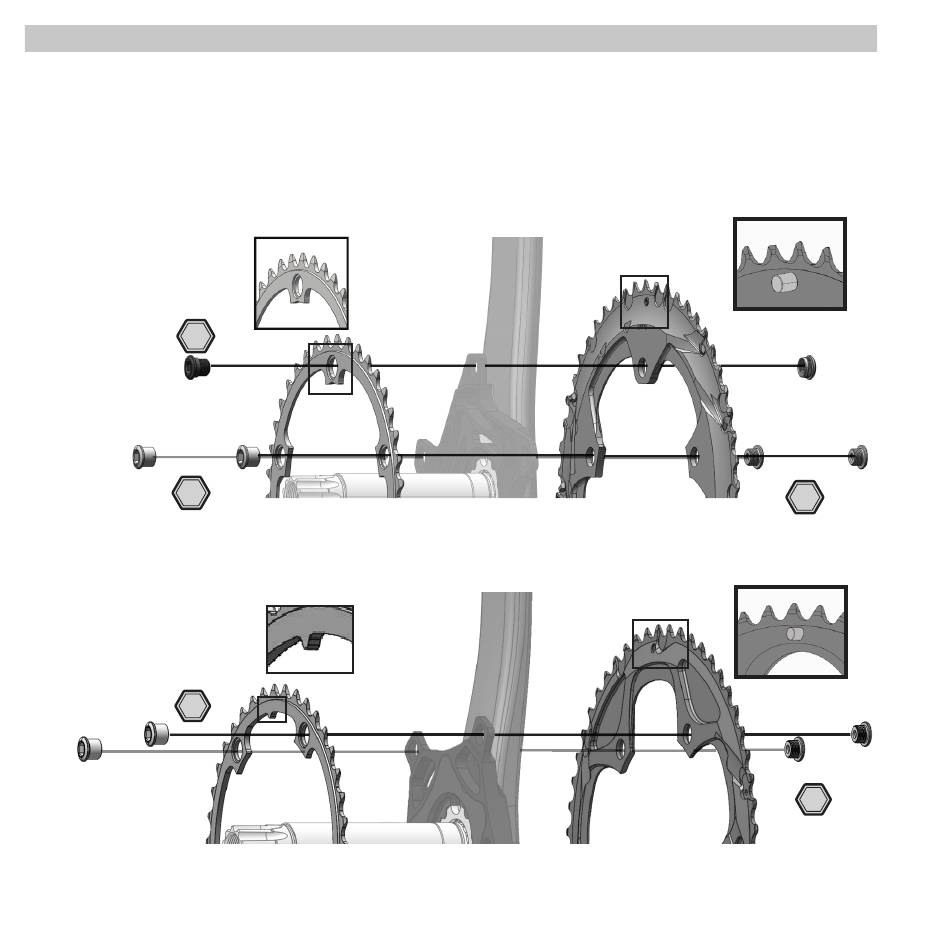

C H A I N R I N G I N S T A L L A T I O N
When installing chainrings you must align the chainring tabs and derailment pin so they are in line with the
crank arm.
Tighten the SRAM steel chainring bolts to 10 N·m (88.5 in-lb). Tighten other chainring bolts according to
the manufacturer's instruction.
Hidden bolt crank
5
6
Non-hidden bolt crank
6
16

CHAINRING INSTALLATION

Knurled Edge
Chainring bolt
5
5
