EN Controlmini, Short Guide
2.

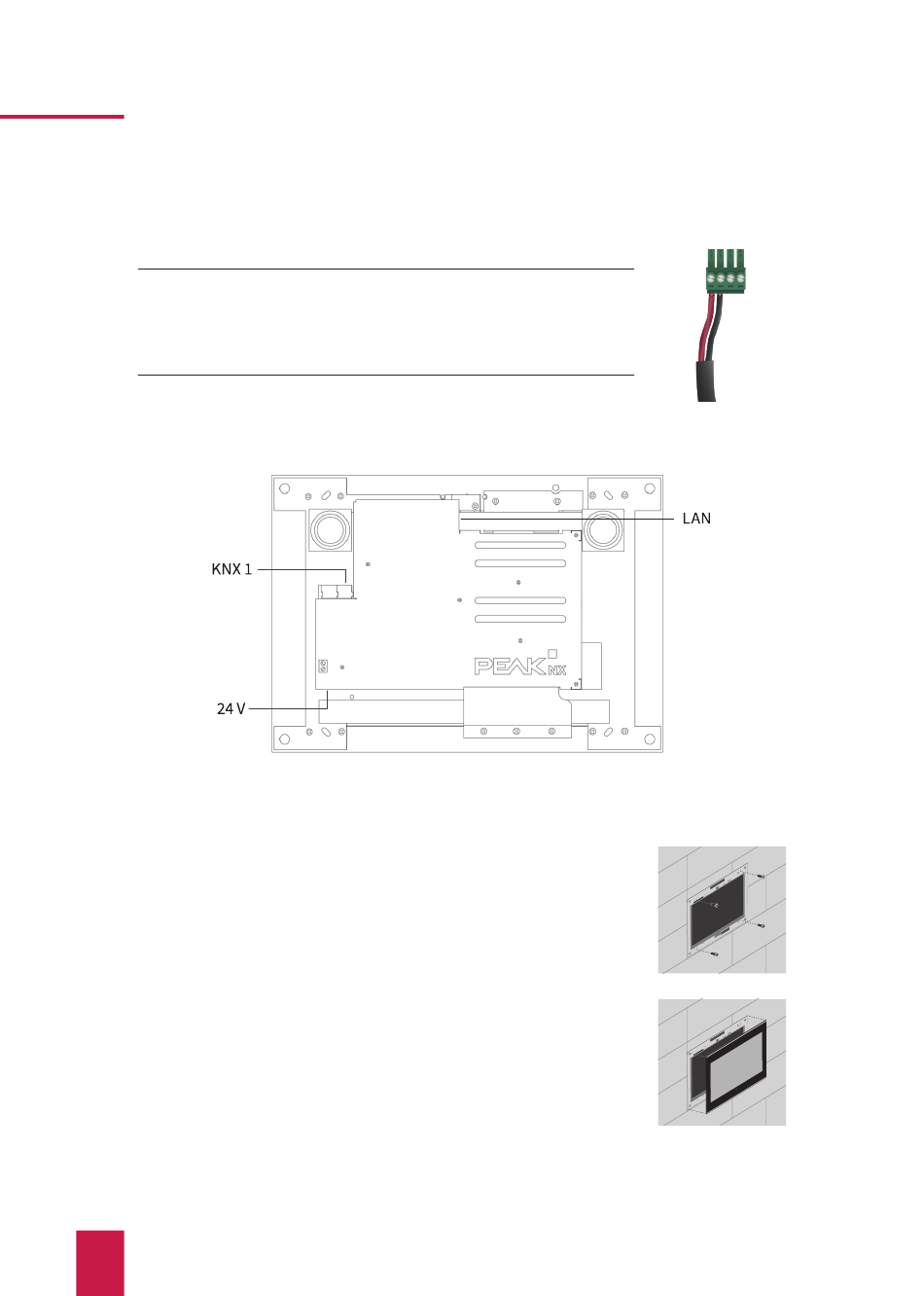

Plug the KNX cable with the colors red (+) and black (-) into the KNX-terminal 1, as
indicated on the panel.
Note:
It is recommended to use a 24 V DC power supply unit for the DIN
rail (PNX-019-A18-00039). If the power supply unit is to be installed in the
flush-mounted box, please refer to the instructions in the manual on the
supplied USB stick.
3.
Attach the cable wires to the supplied plug-in terminal and slide it
into the panel. Pay attention to the polarity.
Fastening the Panel
1.
Install the panel in the flush-mounted box. Therefore, use the
four countersunk screws (M3x12) for fixing it in the corresponding
holes, chapter Touch panel elements: No. 3.
2.
Place the glass cover with the magnetic holders into the four
intakes (position No. 1) provided and continue until the glass rests
against all four corners of the touch screen.
3.
Ensure that the opening for the camera is positioned on the upper
screen.
16
