Peak Controlmini Kurzanleitung Seite 14

EN Controlmini, Short Guide
Avoid damage to the panel!
■
The panel may only be installed in landscape format and parallel to the wall to ensure
ventilation of the computer in the panel by convection.
Preparation
Note:
We recommend hedging the panel, since in rare cases the panel must be taken completely
from the power supply.
Necessary accessories for the installation of the panel:
■
Flush-mounted box (PNX-018-A17-00023) or surface-mounted frame (PNX 018-A18-00041)
■
Power supply unit 24 V DC for DIN rail (PNX-019-A18-00039)
or
■
Power supply unit 24 V DC for the flush-mounted box (PNX-019-A19-00071)
■
Glass cover

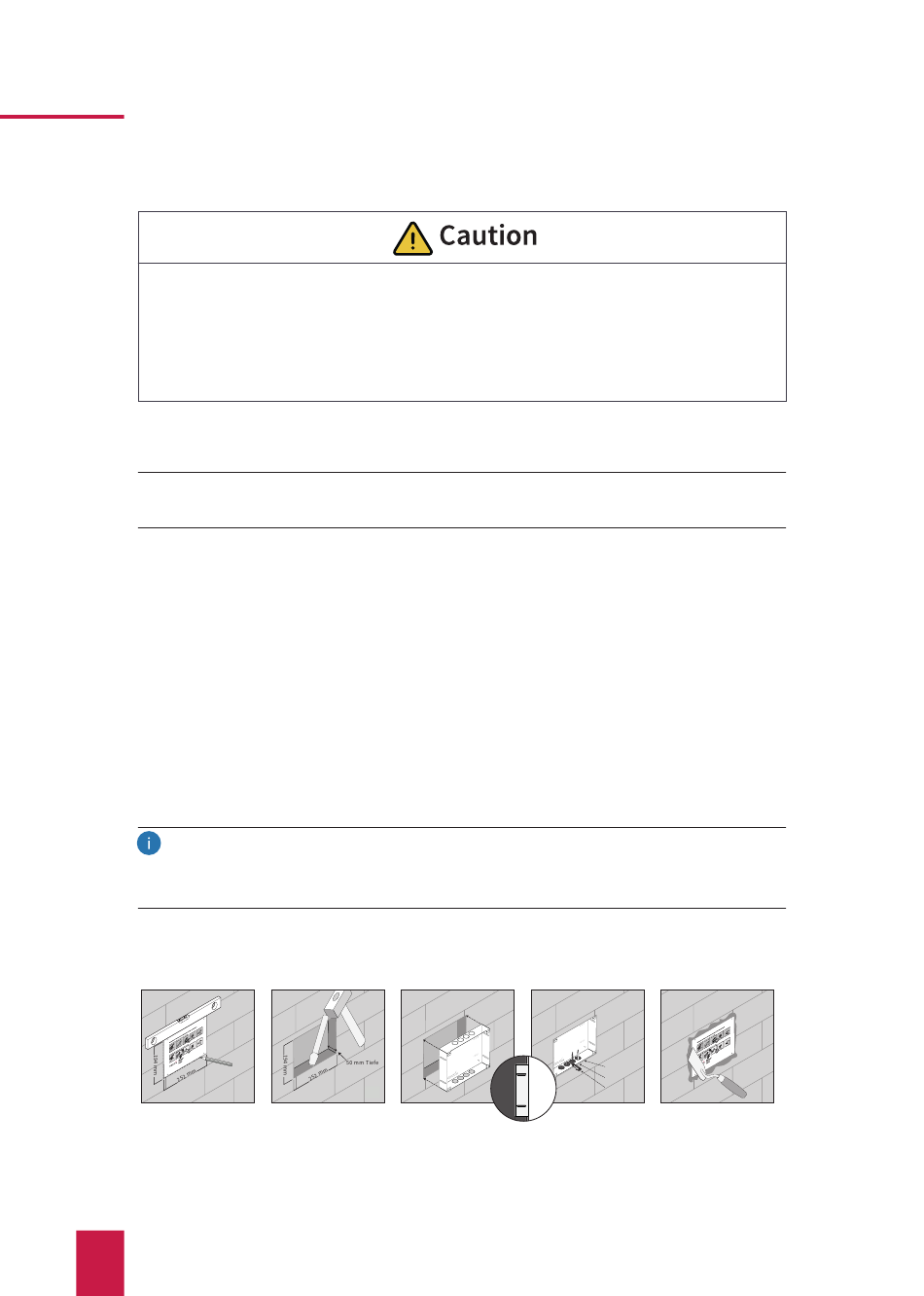

Flush-mounted installation
Tip: Choose the installation height of the panel according to the height of the primary user
so that the top edge of the panel is at his/her eye level. A slightly lower screen prevents
fatigue of the arms during operation.
Installation in brickwork
Mauerwerkinstallation/Brickwork-Installation
Hohlwandmontage/Cavity Wall Installation
14
Beide Holzklötze in der Wand befestigen.
Fit the two wooden fillets inside the wall.
Die Schablone schützt vor Schmutz.
The stencil board protects from dirt.
KNX
24 V
LAN
50 mm
Bündig zur Wand
Box flush with wall
Die Schablone schützt vor Schmutz.
The stencil board protects from dirt.
KNX
24 V
LAN
50 mm
Bündig zur Wand
Box flush with wall
