1.
Make a recess of H x W x D: 194 x 252 x 50 mm in the wall. Therefore, use the template
provided. The flush-mounted box must later be flush with the wall.
2.
Depending on the cable position, press the circular plates at the top or bottom out of
the box and insert the supplied self-sealing grommets to prevent damage to the cable.
3.
When inserting the flush-mounted box, route the supply and communication cables
(Ethernet, KNX) through different holes in the flush-mounted box to avoid possible
Mauerwerkinstallation/Brickwork-Installation
interference.
4.
Use the template as a splash guard during the filling of the edges.

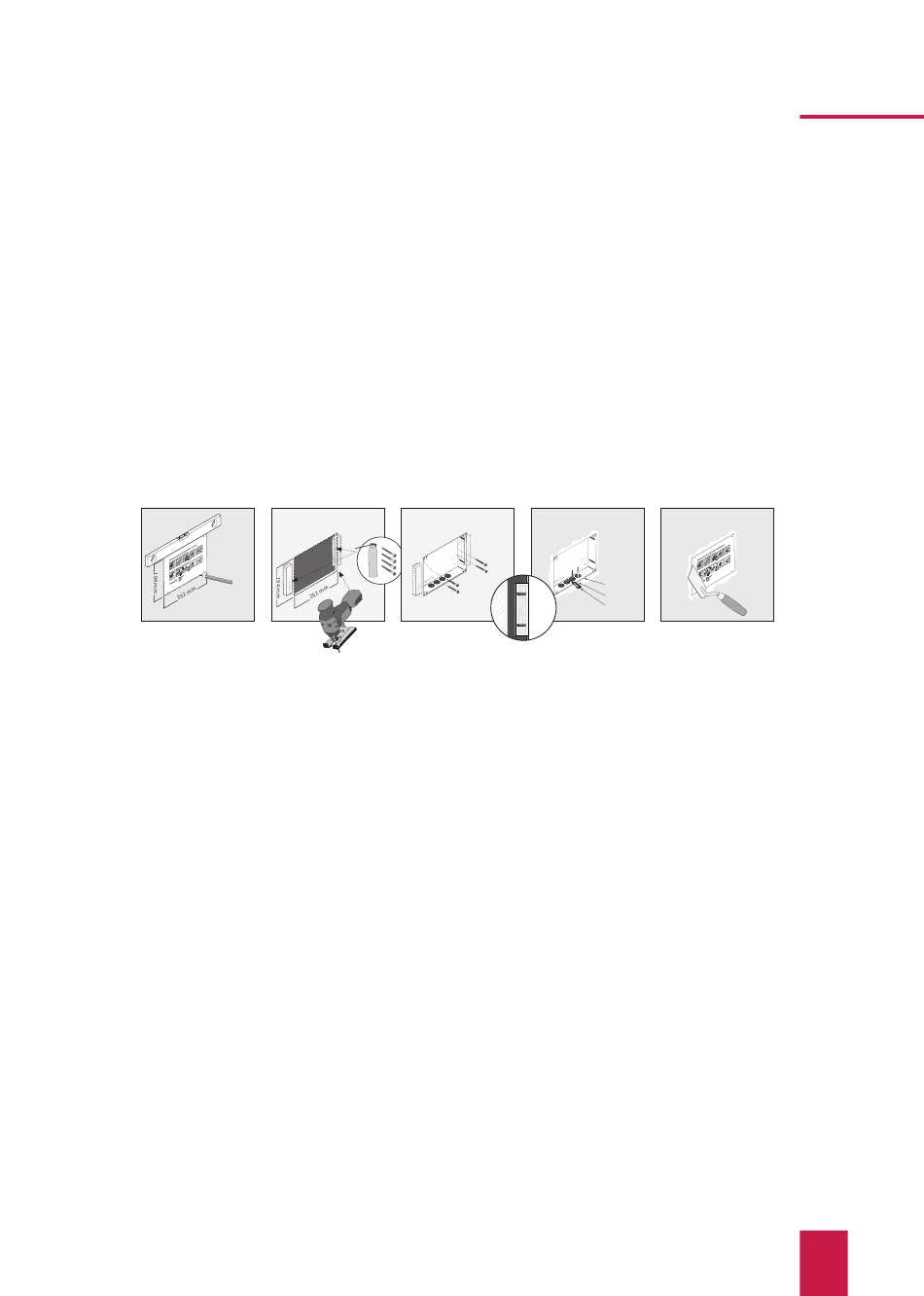

Installation in a cavity wall
Hohlwandmontage/Cavity Wall Installation
Beide Holzklötze in der Wand befestigen.
Fit the two wooden fillets inside the wall.
1.
Make a recess of H x W: 194 x 252 mm in the wall. Therefore, use the template supplied.
The flush-mounted box must later be flush with the wall.
2.
Glue or screw the two wooden blocks supplied into the cavity wall.
3.
Depending on the cable position, press the circular plates at the top or bottom out of
the box and insert the supplied self-sealing grommets to prevent damage to the cable.
4.
When inserting the flush-mounted box, route the supply and communication cables
(Ethernet, KNX) through different holes in the flush-mounted box to avoid possible
interference.
5.
Screw the flush-mounted box on the sides to the wooden blocks using the four screws.
6.
Use the template as a splash guard during the filling of the edges.
Other assembly instructions
Further instructions for mounting the surface-mounted version or fixing with the help of
adapters are supplied with the respective surface-mounted frame or adapter.
Connecting and mounting the panel
1.
Connect the Ethernet cable to the panel.
EN Controlmini, Short Guide
Die Schablone schützt vor Schmutz.
The stencil board protects from dirt.
KNX
24 V
LAN
50 mm
Bündig zur Wand
Box flush with wall
Die Schablone schützt vor Schmutz.
The stencil board protects from dirt.
KNX
24 V
LAN
50 mm
Bündig zur Wand
Box flush with wall
15
