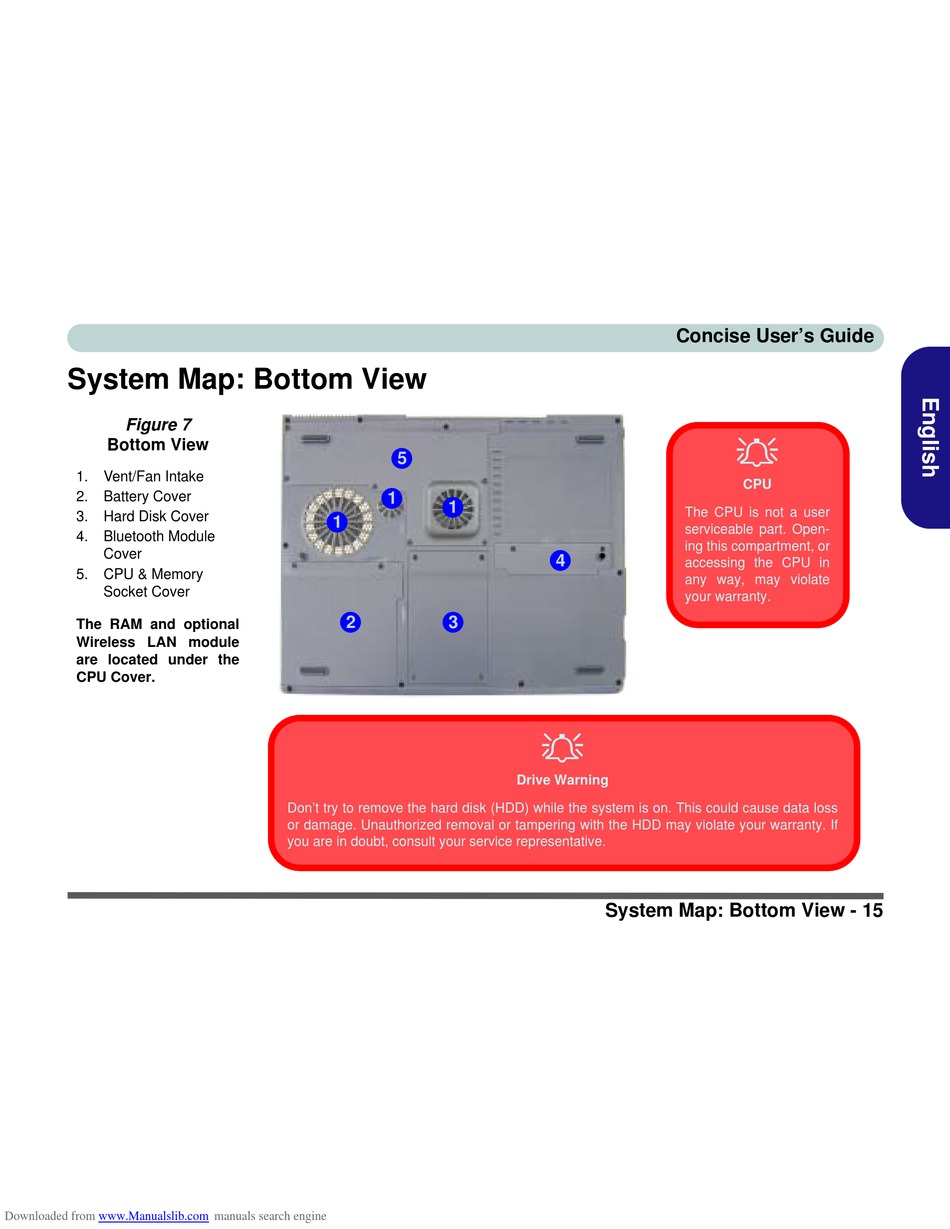

System Map: Bottom View

Figure 7
Bottom View
1. Vent/Fan Intake
2. Battery Cover
3. Hard Disk Cover
4. Bluetooth Module
Cover
5. CPU & Memory
Socket Cover
The RAM and optional
Wireless LAN module
are located under the
CPU Cover.
Downloaded from www.Manualslib.com
1
1
2
Don't try to remove the hard disk (HDD) while the system is on. This could cause data loss
or damage. Unauthorized removal or tampering with the HDD may violate your warranty. If
you are in doubt, consult your service representative.
manuals search engine
5
1
4
3
!
Drive Warning
Concise User's Guide
!
CPU
The CPU is not a user
serviceable part. Open-
ing this compartment, or
accessing the CPU in
any way, may violate
your warranty.
System Map: Bottom View - 15
