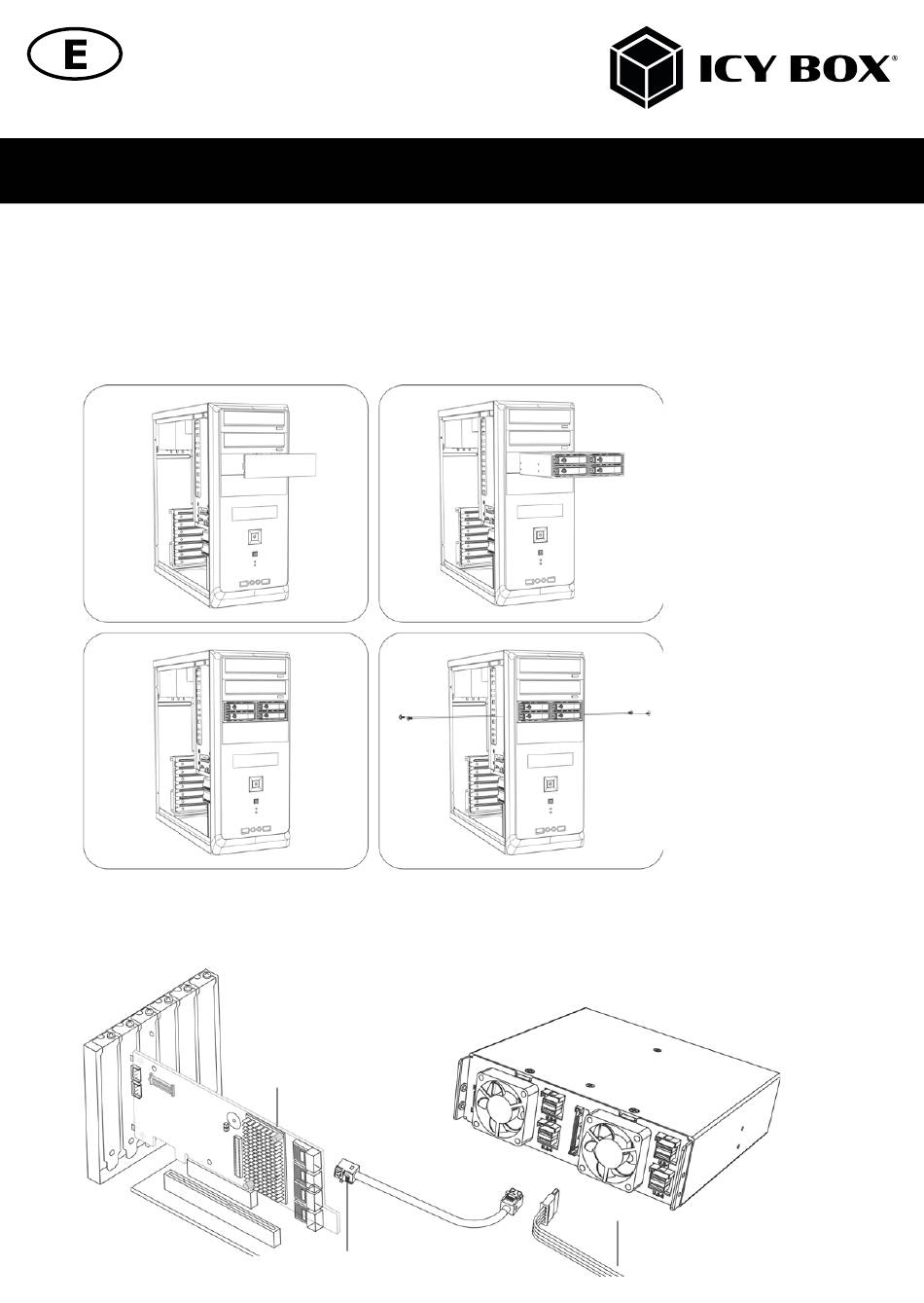

Hardware installation
1.
Turn OFF the PC and any other connected peripheral devices.
2.
Unplug the power cable from the back of the PC and remove the cover of your PC.
3.
Remove the panel from the available 5.25" bay.
4.
Insert the Backplane into the bay and fix it with 2 screws on each side.
5.
Connect the four Mini SAS HD host connectors of the housing to your U.2 connectors on your
mainboard or PCIe adapter cards.
6.
Connect a SATA 15 pin power cable to the SATA power connector on the back of the housing.
Manual IB-2242U2K
PCI/PCIE MiniSAS
card (SFF-8643
interface)
MiniSAS HD cable
SATA Power cable
