DESCRIPTION OF THE DEVICE
Features
Compact axial blower with DMX interface
• Wind machine with DMX interface for stage and touring applications
• Compact metal enclosure with brackets for road use
• Standing or hanging mounting possible
• Great effect when used e.g. with fog, snow and bubble machines
• Control via rotary control or via integrated DMX interface
• Addressing via control panel with 4-digit LED display
• Low power consumption
• Locking possibility at the brackets
• Power connection via P-Con jack and included power cable with safety plug
• Feed-through output allows to power up to 8 devices
• DMX control via any standard DMX controller

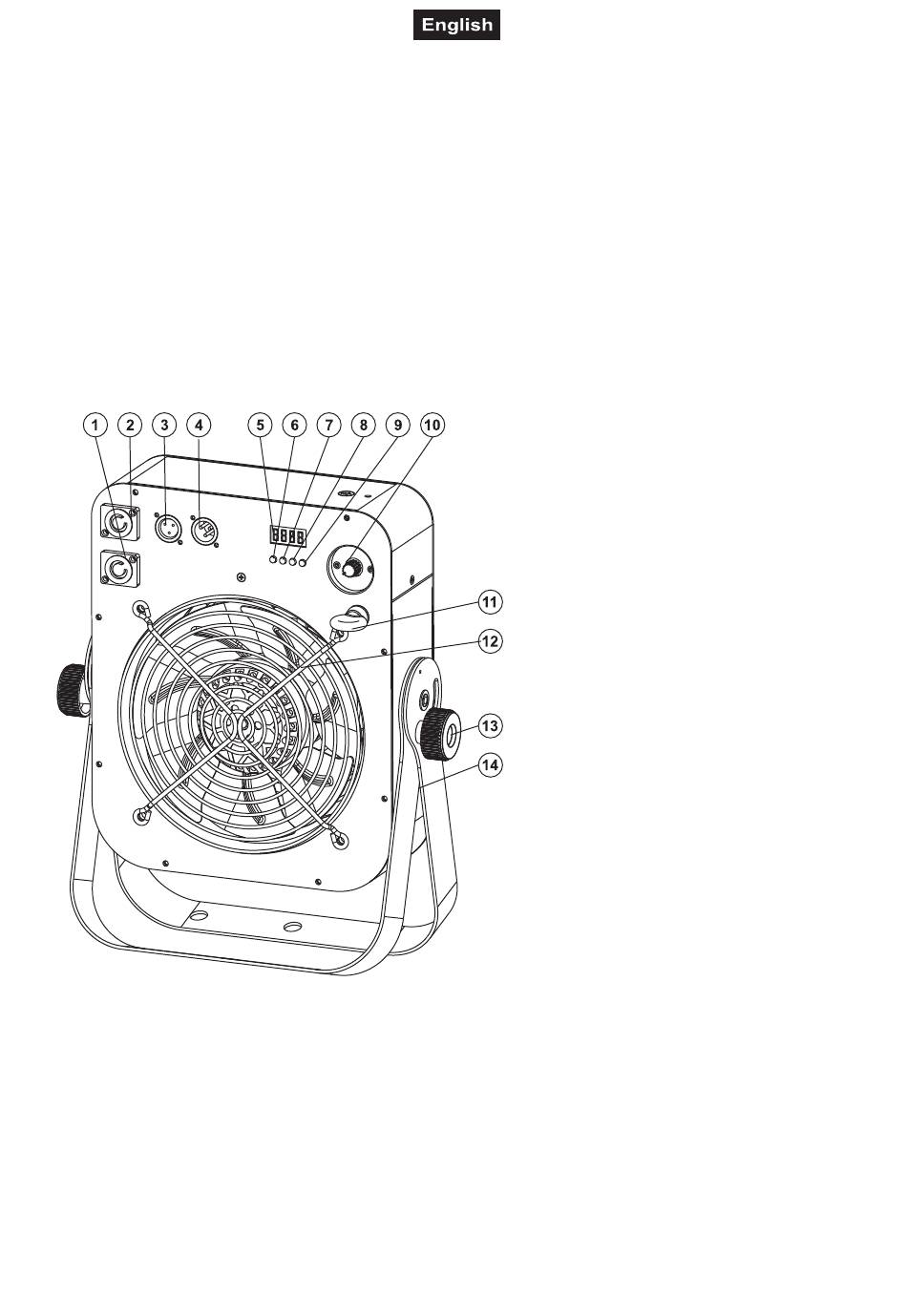

Overview
INSTALLATION
Rigging
The device can be installed on the ground or on the wall or ceiling.
Install the device out of the public area.
Only install the machine on scratch resistant surfaces. The device must only be installed absolutely planar at
a vibration-free, oscillation-free and fire-resistant location.
The operational surroundings must be free from solid or liquid easy-to-move objects, which could be tilted,
absorbed or accelerated by the air flow.
(1) Power output
(2) Power input
(3) 3-pin DMX output
(4) 3-pin DMX input
(5) Display
(6) Menu button
(7) Up button
(8) Down button
(9) Enter button
(10) Rotary control wind speed
(11) Attachment eyelet
(12) Ventilator/ventilation grille
(13) Fixation screw
(14) Floor stand/mounting bracket
17/24
00108703, Version 1.0
