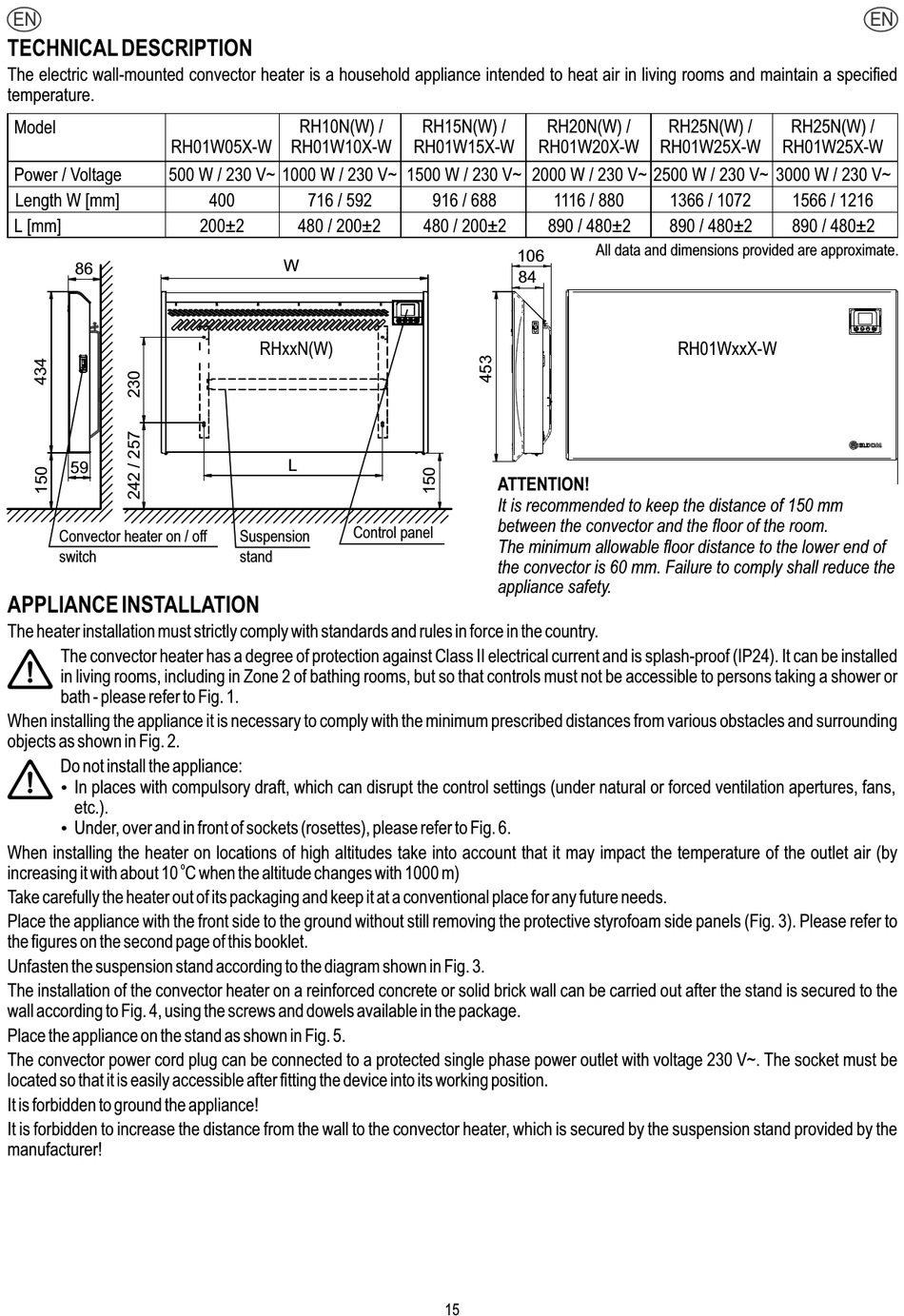

TECHNICAL DESCRIPTION

The electric wall-mounted convector heater is a household appliance intended to heat air in living rooms and maintain a specified
temperature.
Model
RH01W05X-W
Power / Voltage 500 W / 230 V~
Length W [mm]
L [mm]
86
59
Convector heater on / off
switch

APPLIANCE INSTALLATION

The heater installation must strictly comply with standards and rules in force in the country.
The convector heater has a degree of protection against Class II electrical current and is splash-proof (IP24). It can be installed
in living rooms, including in Zone 2 of bathing rooms, but so that controls must not be accessible to persons taking a shower or
bath - please refer to Fig. 1.
When installing the appliance it is necessary to comply with the minimum prescribed distances from various obstacles and surrounding
objects as shown in Fig. 2.
Do not install the appliance:
In places with compulsory draft, which can disrupt the control settings (under natural or forced ventilation apertures, fans,
џ
etc.).
Under, over and in front of sockets (rosettes), please refer to Fig. 6.
џ
When installing the heater on locations of high altitudes take into account that it may impact the temperature of the outlet air (by
increasing it with about 10 C when the altitude changes with 1000 m)
Take carefully the heater out of its packaging and keep it at a conventional place for any future needs.
Place the appliance with the front side to the ground without still removing the protective styrofoam side panels (Fig. 3). Please refer to
the figures on the second page of this booklet.
Unfasten the suspension stand according to the diagram shown in Fig. 3.
The installation of the convector heater on a reinforced concrete or solid brick wall can be carried out after the stand is secured to the
wall according to Fig. 4, using the screws and dowels available in the package.
Place the appliance on the stand as shown in Fig. 5.
The convector power cord plug can be connected to a protected single phase power outlet with voltage 230 V~. The socket must be
located so that it is easily accessible after fitting the device into its working position.
It is forbidden to ground the appliance!
It is forbidden to increase the distance from the wall to the convector heater, which is secured by the suspension stand provided by the
manufacturer!
RH10N(W) /
RH01W10X-W
1000 W / 230 V~
400 716 / 592
200±2 480 / 200±2
W
RHххN(W)
L
Suspension
stand
о
RH15N(W) /
RH01W15X-W
1500 W / 230 V~
916 / 688
480 / 200±2
106
84
ATTENTION!
It is recommended to keep the distance of 150 mm
between the convector and the floor of the room.
Control panel
The minimum allowable floor distance to the lower end of
the convector is 60 mm. Failure to comply shall reduce the
appliance safety.
RH20N(W) / RH25N(W) /
RH01W20X-W RH01W25X-W
2000 W / 230 V~ 2500 W / 230 V~
1116 / 880 1366 / 1072
890 / 480±2 890 / 480±2
All data and dimensions provided are approximate.
RH01WxxX-W
EN
RH25N(W) /
RH01W25X-W
3000 W / 230 V~
1566 / 1216
890 / 480±2
