Brink 719578 Einbauanleitung
Quicklinks
Wiringkit
D
Einbauanleitun g
GB
Installation instructions
F
Consignes de montage
NL
Montagehandleiding
DK
Montagevejle dning
N
Monter ingsinstruksjon
Installationsanvising
S
FIN
Asennusohje
I
Intruzioni per il montaggio
Instrucciones de montaje
E
P
Instuções de montagem
GR
Οδηγίες εγκατάστασης
Návod k montáži
CZ
SLO
Navodilo za vgradnjo
SK
Montážny návod
Instrukcja montazu
PL
TR
Montaj talimatı
H
Beépítési útmutató
Upute o ugradnji
HR
BUL
инструкции за монтаж
RO
Instruc iuni de montaj
RU
Инструкция по монтaжу и устaновке
LT
Montavimo informacija
LV
lemontešanas pamaciba
Paigaldusjuhend
EST
87610525 / 18.06.2018 /
87610525 / 18.06.2018 /
Subject to changes
Subject to changes
719578 29610503
JEEP
• Grand Cherokee
• Commander
06/06
05/06
brink.eu
1/9
Verwandte Anleitungen für Brink 719578
Inhaltszusammenfassung für Brink 719578

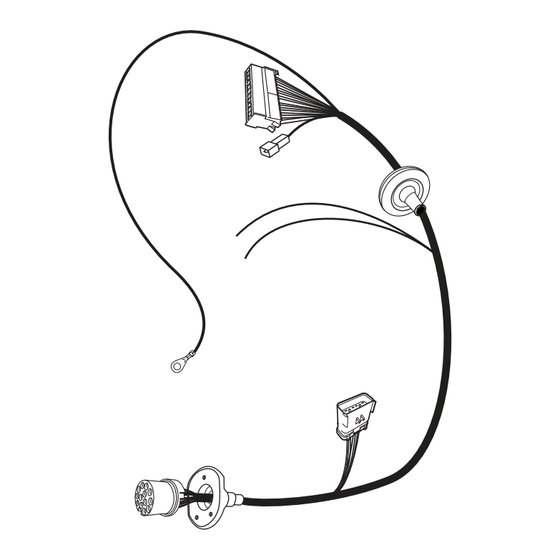

- Seite 1 Wiringkit 719578 29610503 Einbauanleitun g Installation instructions JEEP Consignes de montage Montagehandleiding • Grand Cherokee 06/06 Montagevejle dning • Commander 05/06 Monter ingsinstruksjon Installationsanvising Asennusohje Intruzioni per il montaggio Instrucciones de montaje Instuções de montagem Οδηγίες εγκατάστασης Návod k montáži Navodilo za vgradnjo Montážny návod...
- Seite 2 Installation of the towing electrics kit must be undertaken by In case of missing a rear fog lamp on the trailer, it should be retrofitted. za specialist workshop or an appropriately qualified person. We accept no responsibility and give no guarantee for technical and electrical Before starting work, you must read the installation instruc- modifications made after the initial operation of the towing electrics kit by the tions through completely.
-
Seite 3: Symbol Explanation
SYMBOL EXPLANATION left (58-L) respectively cigarette lighter / right (58-R) tail light accessory socket stop light (54) / loudspeaker / buzzer high mounted, third stop light (54) Park Distance Control turn signal indicator left turn signal indicator right switch / source of function Connect together rear fog light(s) Disconnect... - Seite 4 Grand Cherokee 87610525 / 18.06.2018 / Subject to changes...
- Seite 5 Commander 87610525 / 18.06.2018 / Subject to changes...
- Seite 6 40 mm Black Schwarz Negro Noir Nero Preto Zwart Sort Svart Svart Musta Cerná Fekete Czarny Rojo Rouge Rosso Vermelho Rood Rød Rød Röd Punainen Cervená Piros Czerwony Green Grün Verde Vert Verde Verde Groen Grøn Grønt Grön Vihreä Zelená Zöld Zielony Orange...
- Seite 7 GY/YL 87610525 / 18.06.2018 / Subject to changes...
- Seite 8 OPTIONAL for voltage control relay Part no. 764129 everse 90500004 90500507 beep...beep beep 90400081 90400081 Optional: Adapter socket 768009 7-pin 13-pin 90500368 90500544 87610525 / 18.06.2018 / Subject to changes...
- Seite 9 Diagnosis function of control LEDs Diagnosefunktion der Kontroll-LED’s Fonction diagnostic des LED de contrôle Funzione di diagnostica dei LED di controllo Función de diagnóstico de los LEDs de control Diagnosefunctie van de controle-LED´s SETUP Ignition ON B+/30: PIN 1 + PIN 14 B+/30 <...
