1. Quick reference
1.1 General remarks
The CHAMP series amplifiers are designed for use on stages, for fixed sound system installations of any size, for monitoring, in
studios and many other purposes. The 5 models of the CHAMP series do not only differ in output power but also have different
features.
1.2. Control elements and indicators
1
POWER ON
1
POWER ON
1
Mains power switch with indicator lamp
2
Output level control
Each channel has an individual level control
3
PROTECT indicator LED
Indicates when protection circuit is active.
4
SIGNAL indicator LED
Flashes up when the amplifier is receiving an audio
signal.
12
Downloaded from
www.Manualslib.com

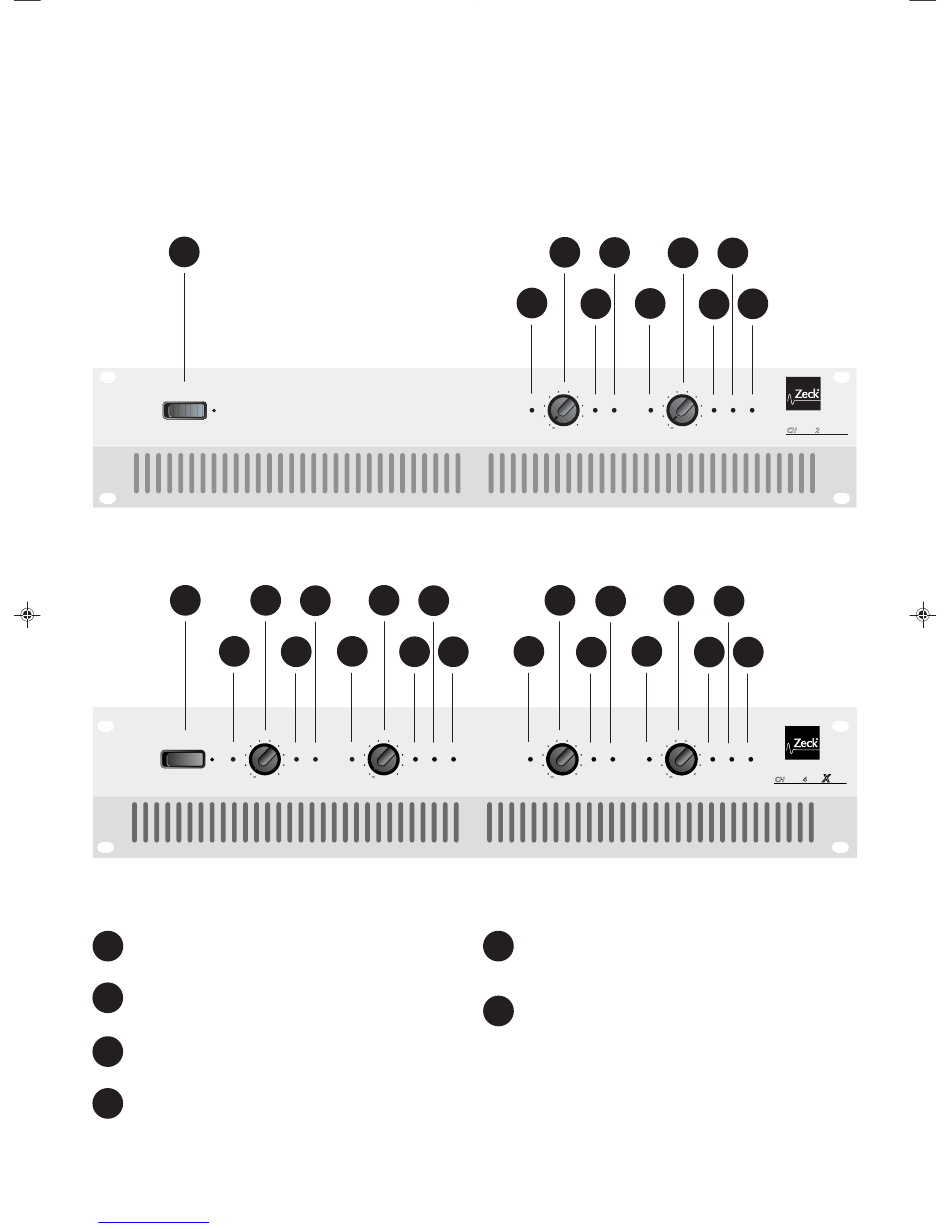

Fig.1: Front panel of 2-channel models
