4� Flip the NVR upside down and fasten the HDD screws. Replace the cover and
fasten the screws of the NVR.

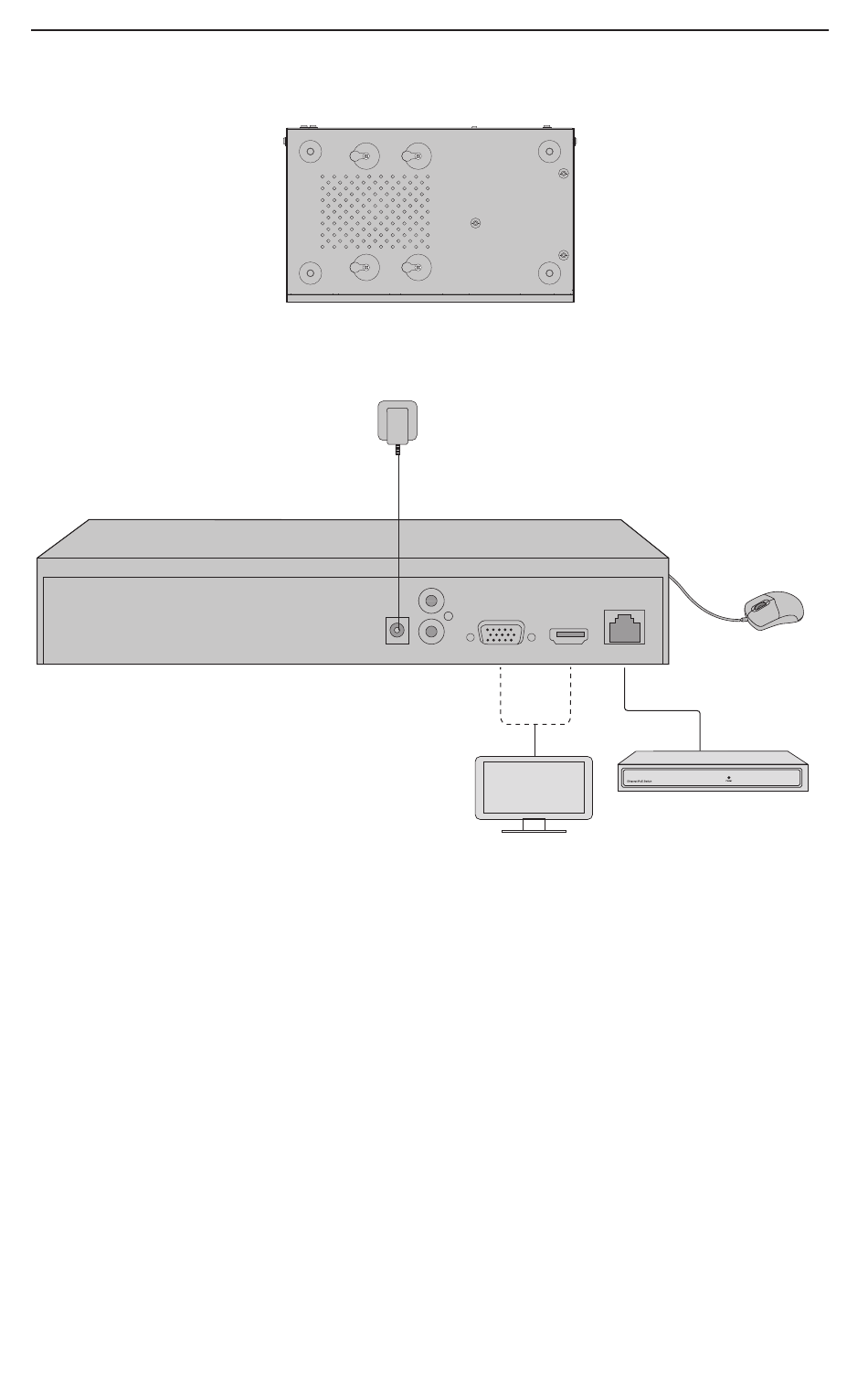

Hardware Connection

1� Connect your monitor to the HDMI or VGA port according to the connection port
it supports�
2� Connect your monitor to a power source and turn it on�
3� Connect the LAN port of the NVR to a network device with an Ethernet cable.
4� Connect the provided USB Mouse to the USB Interface of the NVR (front panel).
5� Connect the power adapter to the NVR.
Cautions
• If you want to turn off the NVR after hard drive installation, click the Power button on the Main
Menu of your monitor. Do not unplug it directly.
• The input voltage should match with the device power requirements.
AUDIO IN
VGA
POWER AUDIO OUT
NVR
or
Monitor
2
USB Mouse
HDMI LAN
Network Device
