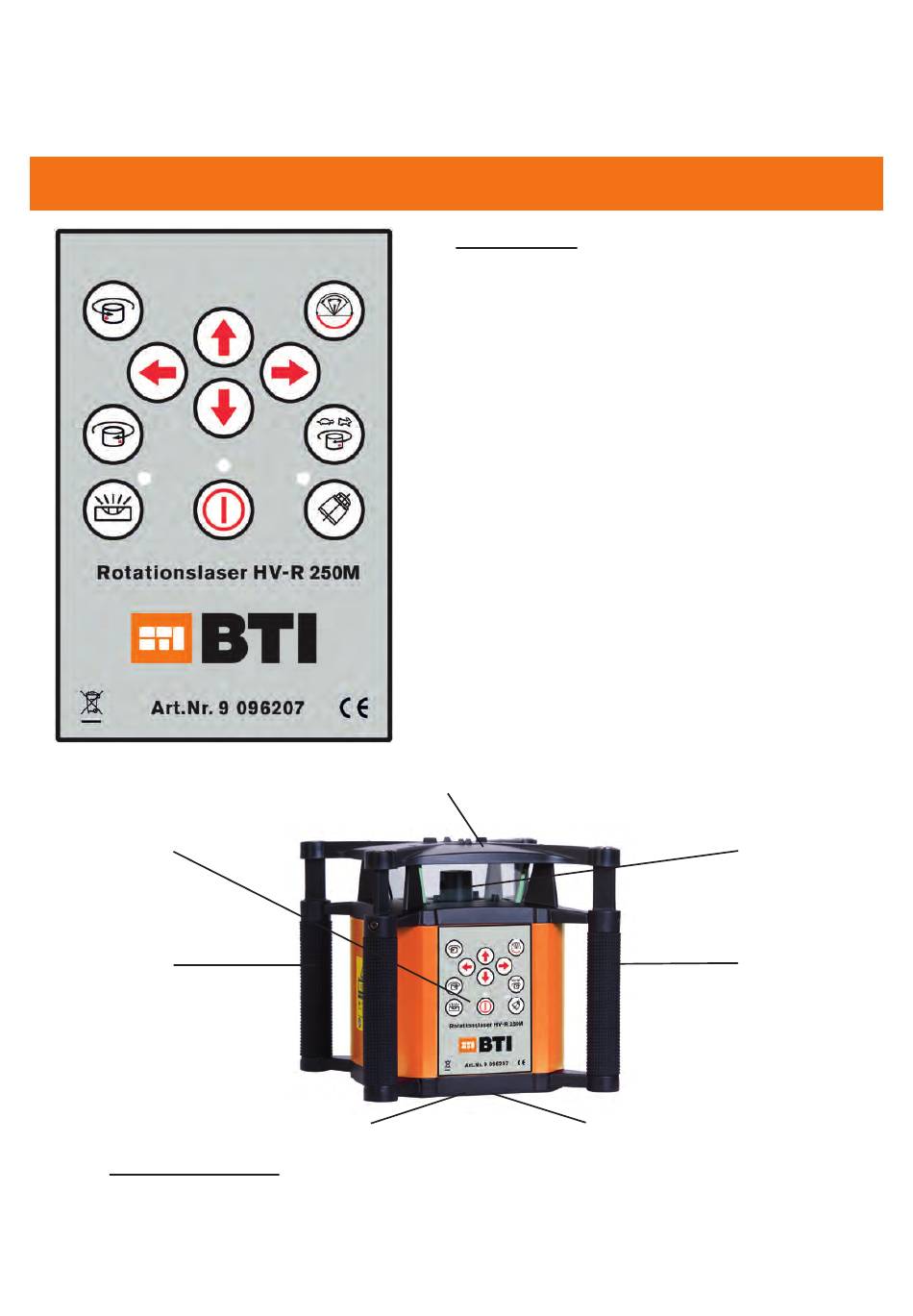

Housing elements
A Control Panel
B Handle
C Charging Jack
12
CONTROLS
3
8
11
2
14
13
1 12
C
Panel Button
1 ON- / OFF-Button
2 Head Speed
3 Direction Scan
4 Left spin
5 Right Spin
6 Manual Button
7 Out of level
8 Up arrow area
9 Down arrow area
10 Left arrow area
11 Right arrow area
12 H.I Alert
13 Tilt display
14 Operating display
E
F
D Rotating Head
E Light House
F Thread for Tripod
