DATWYLER KS-T Plus 1/8 Cat.6A Montageanleitung Seite 2

Rj45-keystone module tool-less, shielded

Werbung

1
2
3
4
RJ45-KEYSTONE MODULE TOOL-LESS
KS-T Plus 1/8 Cat.6
(IEC), shielded
A

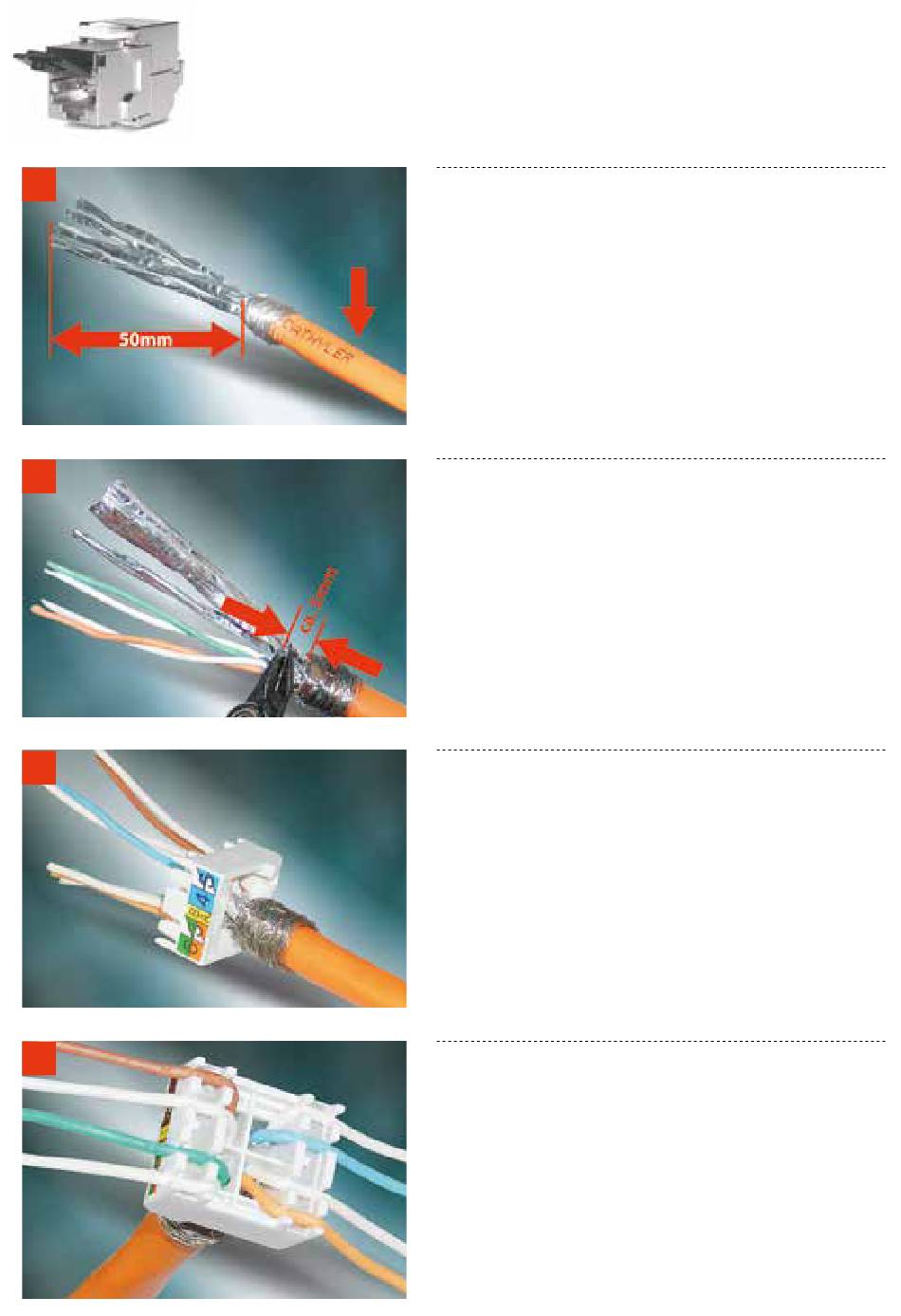

Kabelmantel auf ca. 50 mm Länge entfernen,
den Schirm nach hinten über den Mantel zurück-
führen und darum wickeln. Sofern vorhanden, den
Erdungsdraht min. dreimal um das Kabel wickeln.
Strip off the jacket 50 mm to the end of the cable
and fold the braid back over the jacket. Then wrap
the drain wire a minimum of 3 times around the
braid if a drain wire exist.
Folienschirme entfernen.
Take off the foils over the pairs.
Die Adernpaare ohne Folienschirme entsprechend
dem gewählten Farbcode durch die Öffnungen im
Aufteiler stecken und so festziehen, dass das Kabel
am Aufteiler endet.
Insert the wires from the stripped cable into the cap
trough the holes a shown. Pull the pairs tight so the
jacket ends at the cap body.
Kabeladern entsprechend dem aufgedruckten
Farbcode (T 568A oder T568B) einlegen und
fixieren.
Insert the wires into their correct positions
based upon the colour code
