Your new Rumble™ 60 delivers world-class
Fender ® tone and quality:
• All front panel controls and jacks
• HEADPHONES jack for private listening
• 4-band EQUALIZER and MID SCOOP tone
controls
• LINE OUT jack for output to sound reinforce-
ment or recording equipment
• CD IN RCA input jacks for use with a portable
CD or tape player, drum machine, etc.

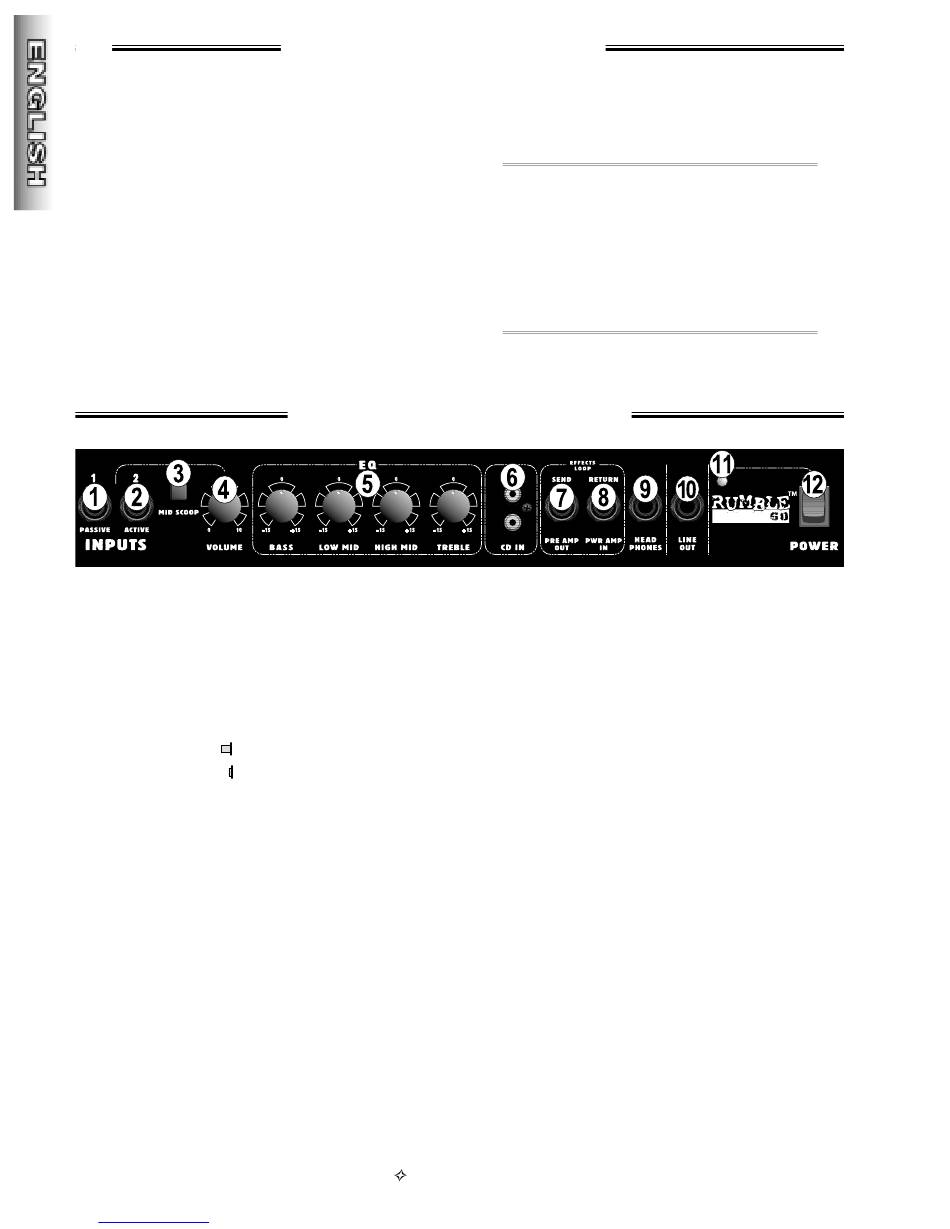

1. INPUT 1 – Input jack for most bass guitars.
2. INPUT 2 – Low gain input jack for bass
guitars with active pre-amps (attenuated
–6 dB).
3. MID SCOOP – Mid-frequency cut; empha-
sizes bass and treble tones.
Button OUT
Button IN
4. VOLUME – Adjusts the loudness of the
amplifier.
5. EQUALIZER – Adjusts tone in 4 frequency
bands. Each knob provides up to 15 dB of
cut or boost with the center "0" position
having no effect on the signal.
6. CD IN – RCA input jacks for use with a
portable CD or tape player, drum machine,
etc. These input jacks are not affected by
the amplifier's volume or tone controls.
Adjust the signal at the source.
7. PRE AMP OUT – Connect this jack to the
input of an external effects device.
w w w w w w . . f f e e n
Downloaded from www.Manualslib.com
Fender
Fender

Front Panel Functions

Front Panel Functions
bypasses Mid Scoop
activates Mid Scoop
n d d e e r r . . c c o o m m
manuals search engine
® Rumble ™ 60
® Rumble ™ 60
• Deltacomp™
eliminates power-amp distortion for clear
tone and punchy response
Fender ® amplifiers are the result of over 50 years
of experience and dedication that our engineers
and countless musicians have gained in
recording studios and on stages around the
world.
Fender ® , The Sound That Creates Legends.
8. POWER AMP IN – Connect this jack to the
output of an external effects device.
9. HEADPHONES – Output jack for standard
stereo or mono headphones. Using this jack
automatically disconnects the speaker.
10. LINE OUT – Impdedance balanced TRS
jack, Tip=(+), Ring=(–), Sleeve=(ground), for
connection
reinforcement equipment.
11. POWER INDICATOR – Illuminates when the
unit is ON.
12. POWER SWITCH – This switch turns the
unit ON and OFF.
