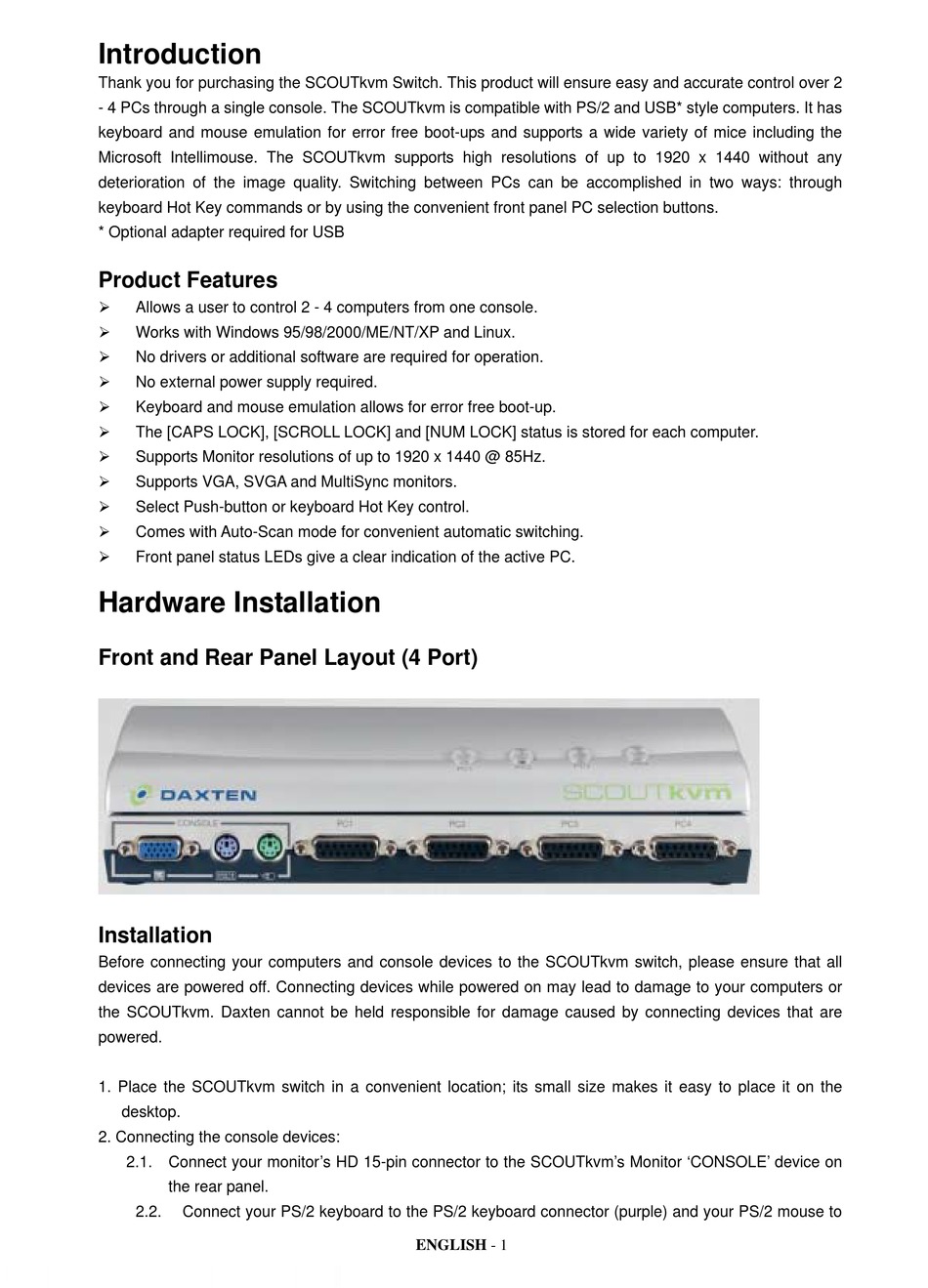

Introduction
Thank you for purchasing the SCOUTkvm Switch. This product will ensure easy and accurate control over 2
- 4 PCs through a single console. The SCOUTkvm is compatible with PS/2 and USB* style computers. It has
keyboard and mouse emulation for error free boot-ups and supports a wide variety of mice including the
Microsoft Intellimouse. The SCOUTkvm supports high resolutions of up to 1920 x 1440 without any
deterioration of the image quality. Switching between PCs can be accomplished in two ways: through
keyboard Hot Key commands or by using the convenient front panel PC selection buttons.
* Optional adapter required for USB

Product Features

!
Allows a user to control 2 - 4 computers from one console.
!
Works with Windows 95/98/2000/ME/NT/XP and Linux.
!
No drivers or additional software are required for operation.
!
No external power supply required.
!
Keyboard and mouse emulation allows for error free boot-up.
!
The [CAPS LOCK], [SCROLL LOCK] and [NUM LOCK] status is stored for each computer.
!
Supports Monitor resolutions of up to 1920 x 1440 @ 85Hz.
!
Supports VGA, SVGA and MultiSync monitors.
!
Select Push-button or keyboard Hot Key control.
!
Comes with Auto-Scan mode for convenient automatic switching.
!
Front panel status LEDs give a clear indication of the active PC.

Hardware Installation

Front and Rear Panel Layout (4 Port)
Installation
Before connecting your computers and console devices to the SCOUTkvm switch, please ensure that all
devices are powered off. Connecting devices while powered on may lead to damage to your computers or
the SCOUTkvm. Daxten cannot be held responsible for damage caused by connecting devices that are
powered.
1. Place the SCOUTkvm switch in a convenient location; its small size makes it easy to place it on the
desktop.
2. Connecting the console devices:
2.1. Connect your monitor's HD 15-pin connector to the SCOUTkvm's Monitor 'CONSOLE' device on
the rear panel.
2.2. Connect your PS/2 keyboard to the PS/2 keyboard connector (purple) and your PS/2 mouse to
ENGLISH - 1
