Ledino LED-FLA1005IR-Set Anleitung Seite 3

Ledino
the energy saving company
LED: high energy saving • energy class A • long lifetime • low heat emission • 100 % light immediately • mercury-free

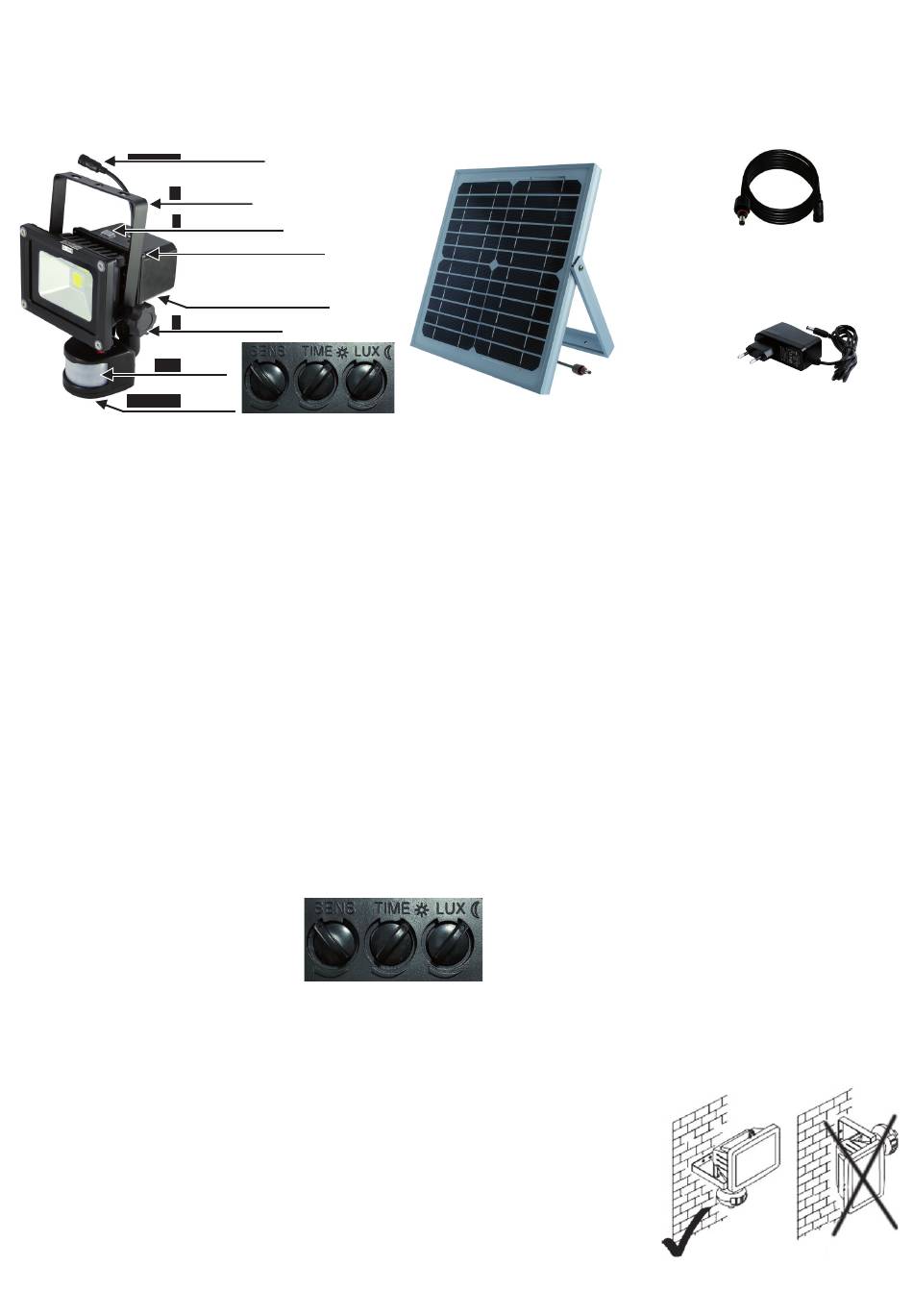

① 10 W Rechargeable LED Flood Light
② Connector ② Connector
③ Bracket ③ Bracket
④ Switch ④ Switch
⑤ 4x battery screw
⑥ LED Indicator
⑦ Adjustment screw ⑦ Adjustment screw
⑧ IR sensor ⑧ IR sensor
⑨ IR sensor control ⑨ IR sensor control
① LED Flood Light
10 watts high power LEDs
100-240 V AC 50/60 Hz, 12-24 V DC
90 lm/W, energy class A, power factor ≧ 0,9
Working temperature: -20 up to 50 ° C
120° beam angle
Aluminium diecast housing
LED indicator
Protected switch on housing
Water protected connector
IP65 - protection against jets of water
W: 135 mm, H: 154 mm, D: 146 mm
5.2 Ah Li-Ion battery (can be re-ordered separatly)
Charging time 6 h - working time 6 h
⑧ IR-Motion/Twilight Sensor
Detection angle: 180°
Setting height: 1.8 m - 2.5 m
Working temp.: ‒10℃ up to +40℃
Operating humidity: < 93% RH
⑨ IR sensor adjusting
(Maximum setting: clockwise until limitation)
Sensor sensitivity (SENS): max 12 m
Duty cycle (TIME): 5 sec - 6 min
Light sensitivity (LUX): 2 -2000 lx
Installation
The set is completely self-suffi cient and can be used as stationary or mobile solution
for versatile lighting purposes.
The LED lamp should be installed horizontally (see picture) for proper function of
the IR sensor.
Align the solar panel towards the sun to ensure a maximum of charging current.
In case that the solar panel is not close to the lamp, you can use the
enclosed 3 m extension cable.
The connections are equipped with waterproofed plugs to ensure a waterproof
combination of LED fl ood light and solar panel. The fi ttings have to be tightened and
the seals must be proper to prevent moisture from penetrating.
If the solar readition in insuffi cient, battery can also supplied by the AC/DC charger
(AC/DC charger is for indoor use only).
LED LIGHTING
⑩ 10 W Solar Panel
⑩ 10 W Solar Panel
10 watts solar panel with aluminium frame
Holder for wall mounting or useable as fl oor stand
With 0.8 m connecting cable
Water protected connectors
Peak power (Pmp): 10 ± 3% watts
Max. voltage (Vmp): 12.5 V
Max. current (Imp): 0.83 A
Open-current voltage (Voc): 14.5 V
Short-circuit current (Isc): 0.96 A
(tested under standard condition:
AM= 1.5, Ec=1000 W/m², Tc=25 ° C)
W: 300 mm, H: 344 mm, D: 25 mm
Rechargeable LED Flood Light10 W
⑪ Bracket
⑫ Connecting Cable
⑥ LED Indicator
Charging: Indicator LED fl ashes red and green
Fully charged: Indicator LED turns to green
Operation time: Indicator LED off
Battery capacity drops to 10%:
Indicator LED fl ashes red slowly (1x/sec)
Battery capacity drops to 5%:
Indicator LED fl ashes red quickly
LED-FLA1005IR-Set
with IR Motion Sensor
and 10 W Solar Panel
⑬ Extension Cable 3 m
⑭ AC/DC Adaptor
GS approval
IN AC: 100-230 V 50/60Hz
OUT DC: 12 V, 1 A
Warning! Only for Indoor use!
