Assembly

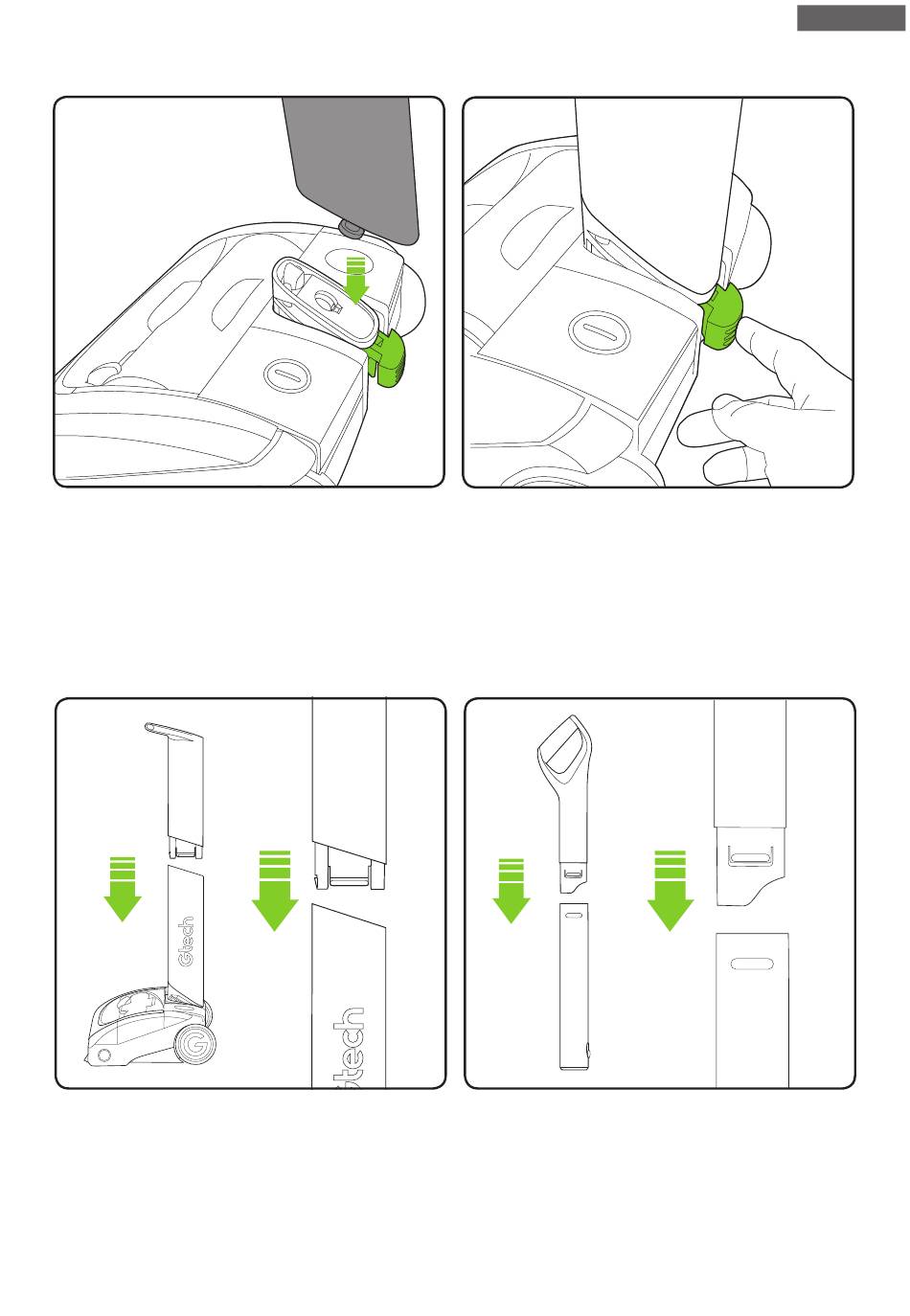

To attach the lower handle to the head
assembly, insert the metal pin on the lower
handle into the hole located on the pivot
yoke. Make sure the green locking clip is
unlocked to allow the lower handle to fit.
Fit the two components of the lower handle
together in the orientation shown in the
image above. They will only fit together one
way. The components will click into place
and will remain permanently fixed.
Ensure the lower handle is sitting completely
flush against the yoke. Then push the green
locking clip into the back of the head.
Fit the two components of the upper
handle together in the orientation shown in
the image above. They will only fit together
one way. The components will click into
place and will remain permanently fixed.
