SPRAY PAINT TANK
Introduction
To get the most out of your new spray paint
tank, please read through this manual and
safety instructions before use. Please also
save the instructions in case you need to
refer to them at a later date.

Technical data

Max. tank capacity:
Max. supply pressure:
Air consumption:
Incl. spray gun, 3 metre air hose and 3 metre
supply hose
With regulator, pressure gauge and safety
valve
24

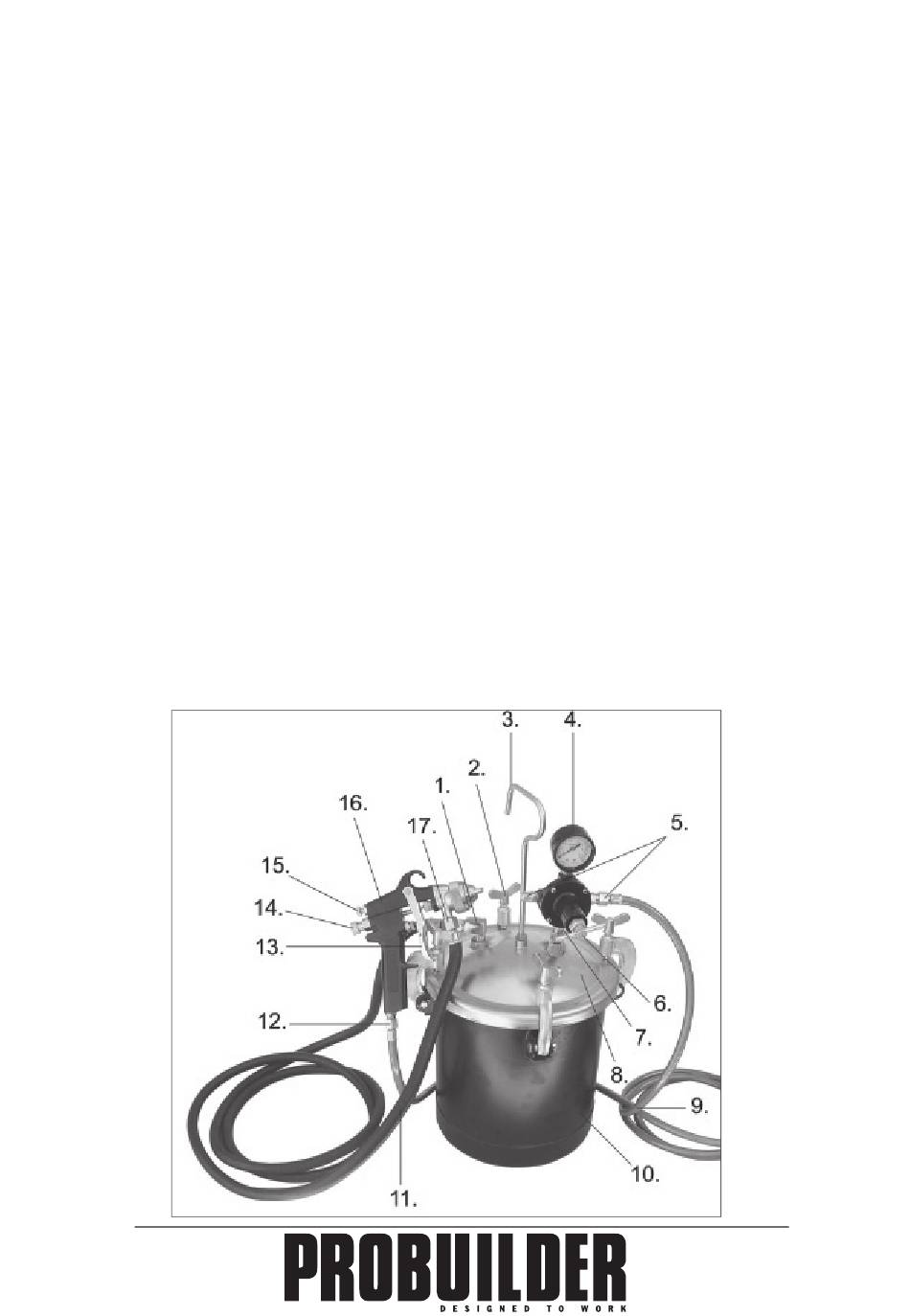

Main components

1. Paint hose connector
2. Screw clamps (4 pcs)
3. Handle
4. Manometer
5. Compressed air hose connectors (2 pcs.)
6. Regulator
7. Safety valve (behind regulator housing)
9.5 ltr 8. Lid
80 PSI (5.5 bar) 9. Compressed air hose
10. Tank
170-240 l/min.
11. Paint hose
12. Compressed air hose connector
13. Release latch
14. Compressed air regulator
15. Spray nozzle regulator
16. Spray gun
17. Paint hose connector
