Hama RMN Uni Operating Instructions

Directional Microphone
Richtmikrofon
G Operating Instruction
1. What's in the Box

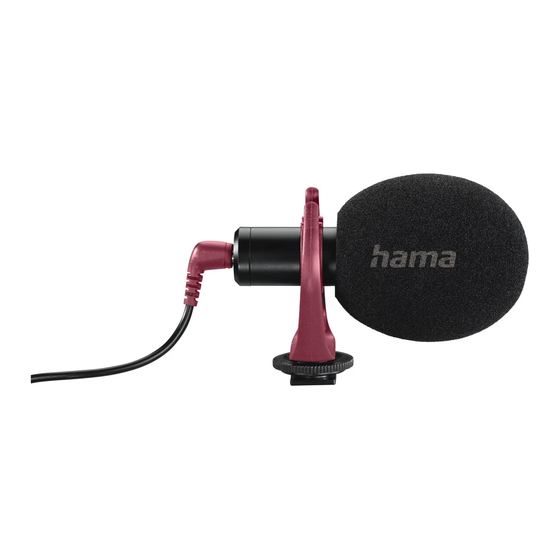

1 x „RMN Uni" directional microphone
1 x anti-shock frame
1 x 3.5 mm TRRS plug
1 x 3.5 mm TRS plug
1 x Wind shield
1 x Storage bag
2. Safety Notes
• This product is intended for private, non-commercial
use only.
• Use the product for its intended purpose only.
• Protect the product from dirt, moisture and
overheating, and only use it in a dry environment.
• Protect the product from dirt, moisture and
overheating, and only use it in a dry environment.
• Do not drop the product and do not expose it to any
major shocks.
• Do not modify the product in any way. Doing so
voids the warranty.
• Dispose of packaging material immediately
according to locally applicable regulations.
• Do not open the device or continue to operate it if it
becomes damaged.
• Do not attempt to service or repair the product
yourself.
• Leave any and all service work to qualified experts.
• Keep this product, as all electrical products, out of
the reach of children!
• Use the item only in moderate climatic conditions.
• Do not bend or crush the cable.
• Always pull directly on the plug when disconnecting
the cable, never on the cable itself.
3. Connection to a smartphone, laptop,
tablet, Mac, PC
• Connection to a smartphone, laptop, tablet, Mac, PC
• Slide the microphone housing into the clamp of the
holder (shockproof frame).
• The microphone should be fixed in the middle and laid
horizontally. For other sockets (USB-C, Lightning) please
use a suitable adapter.
• Attach the windscreen to the front of the microphone
• Connect the 3.5mm TRRS plug (straight cable) to
your device
• Open the audio or video recording app and start
recording
4. Connection to a DSLR camera, camcorder,
audio recorder
• Slide the microphone body into the clamp of the
holder (shockproof frame).
• The microphone should be mounted centrally and
horizontally.
• Attach the windscreen to the front of the
microphone.
• Use the bracket to mount the microphone on the
accessory shoe of your camera, camcorder, etc.
• Connect the 3.5mm TRS jack plug
• (Coiled cable) with your device.
• Directivity: Cardioid
5. Warranty Disclaimer
Hama GmbH & Co KG assumes no liability and provides
no warranty for damage resulting from improper
installation/mounting, improper use of the product or
from failure to observe the operating instructions and/
or safety notes.
1
2
6. Note on environmental protection
After the implementation of the European
Directive 2012/19/EU and 2006/66/EU in
the national legal system, the following
applies:
Electric and electronic devices as well as
batteries must not be disposed of with
household waste. Consumers are obliged by law to
return electrical and electronic devices as well as
batteries at the end of their service lives to the public
collecting points set up for this purpose or point of
sale. Details to this are defined by the national law of
the respective country. This symbol on the product,
the instruction manual or the package indicates that
a product is subject to these regulations. By recycling,
reusing the materials or other forms of utilising old
devices/Batteries, you are making an important
contribution to protecting our environment.
7. Technical data
Connection
Model
Sensitivity
Directivity
Cable length
Impedance
Frequency range
00
004647
RMN Uni
3,5-mm-Jack plug
Mono
-32dB +/-3dB
Cardioid
32 cm
2200 Ω
50 Hz – 20 kHz
