ZEITRAUM CENA Aufbauanleitung Seite 2

CENA / CENA HIGH
Assembly instructions 12/2019

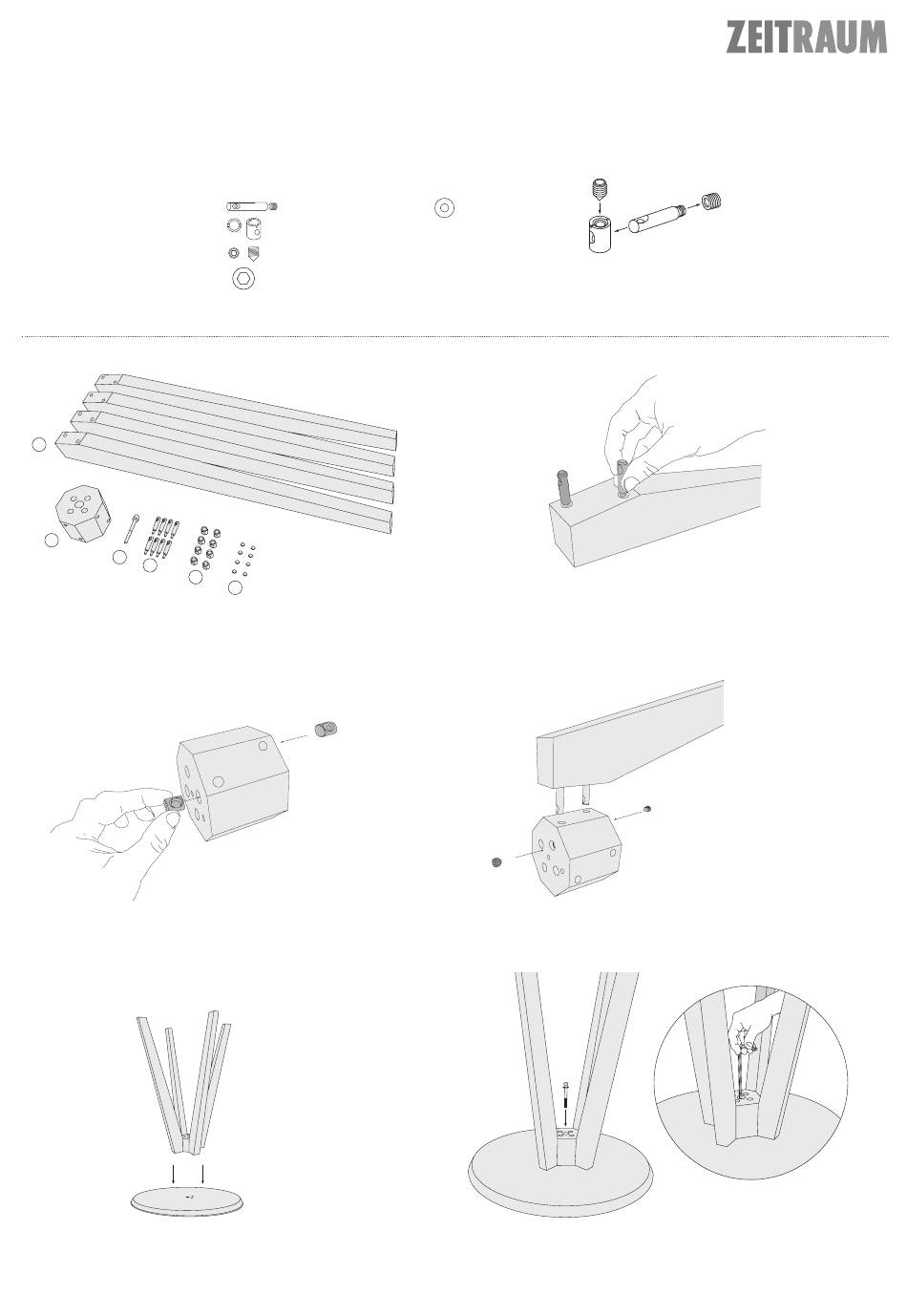

tools:
allen screw SW5 (enclosed) and SW6
8x XS steel debs
8x boxes
8x grub screws
1x cylinder head bolt M 8x 70
1
2
3
4
1 feet
2 frame
3 cylinder head bolt with disk
2. Insert the boxes in the frame and pay attention to
the correct alignment.
4. Place the frame on the
plate.
ZEITRAUM GmbH · Äußere Münchner Str.2 · D-82515 Wolfratshausen · Tel +49 (0)8171 - 418130 · Fax +49 (0)8171 - 418141 · info@zeitraum-moebel.de · www.zeitraum-moebel.de
1
2
1x disk
Please do the setup of the table on a soft surface(e.g. a carpet or blanket) to avoid damages.
5
6
4 XS steel debs
5 boxes
6 grub screws
scheulenburg setup video :
https://www.youtube.com/watch?v=ioIUTDqtvgE
1. Screw in the XS steel debs and pay attention that the alignment of the
holes is vertical.
1
2
3
4
5
6
3. Put the feet on the frame and fix it with the grub screws tightly.
5. Fix the frame with the cylinder head bolt.
