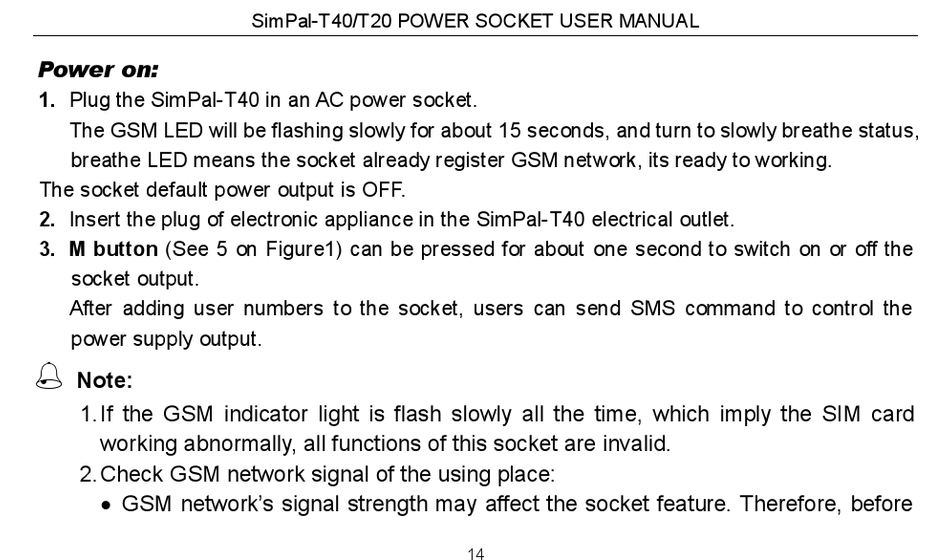

SimPal T40 Bedienungsanleitung Seite 35

Power on:
1. Plug the SimPal-T40 in an AC power socket.
The GSM LED will be flashing slowly for about 15 seconds, and turn to slowly breathe status,
breathe LED means the socket already register GSM network, its ready to working.
The socket default power output is OFF.
2. Insert the plug of electronic appliance in the SimPal-T40 electrical outlet.
3. M button (See 5 on Figure1) can be pressed for about one second to switch on or off the
socket output.
After adding user numbers to the socket, users can send SMS command to control the
power supply output.

Note:
1. If the GSM indicator light is flash slowly all the time, which imply the SIM card
working abnormally, all functions of this socket are invalid.
2. Check GSM network signal of the using place:
 GSM network's signal strength may affect the socket feature. Therefore, before
SimPal-T40/T20 POWER SOCKET USER MANUAL
14
