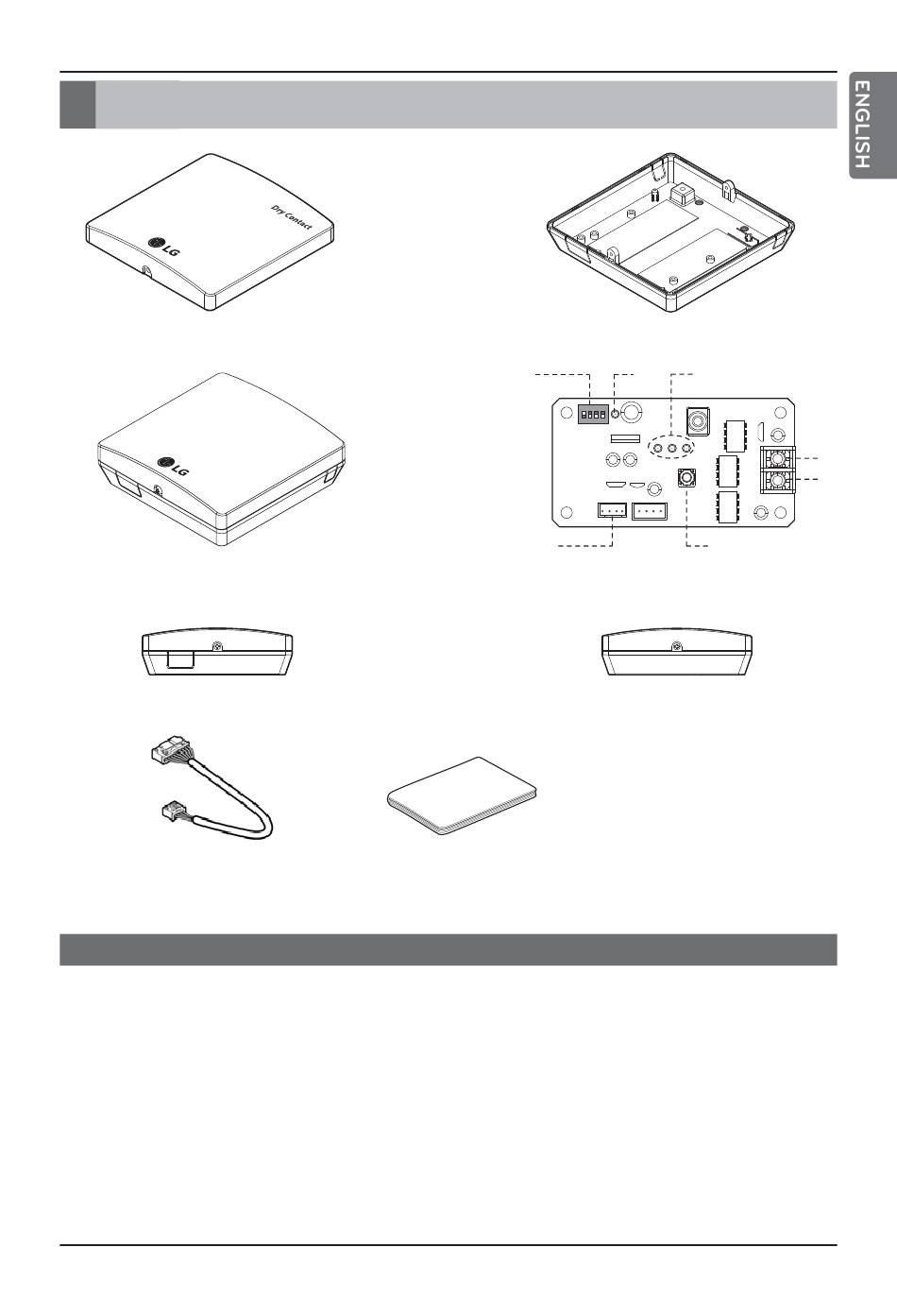

Name of each part

Front Case
ISO View
Side
Cable(1 EA)
(For Connecting with indoor unit)
1. CN-OUT :
Indoor Unit Connector
2. BUS-A :
RS-485(+) Terminal
3. BUS-B :
RS-485(-) Terminal
4. SW1 :
Reset Switch
5. SWDIP :
Setting Address Switch(Refer Page 11)
6. LED1 :
RS-485 Status LED
7. LED(01~03)G :
Communication Status LED
Installation Manual
Modbus Gateway For Indoor Unit
Name of each part
Rear Case
5 6
ON
1 2 3 4
1
PCB
Side
* Others :
Screw 4 EA(For installation)
Installation manual 7
7
3
2
4
