TDK-Lambda LZSA1000-2 Installationsanleitung Seite 25

LS = Local Sense
S = Remote Sense

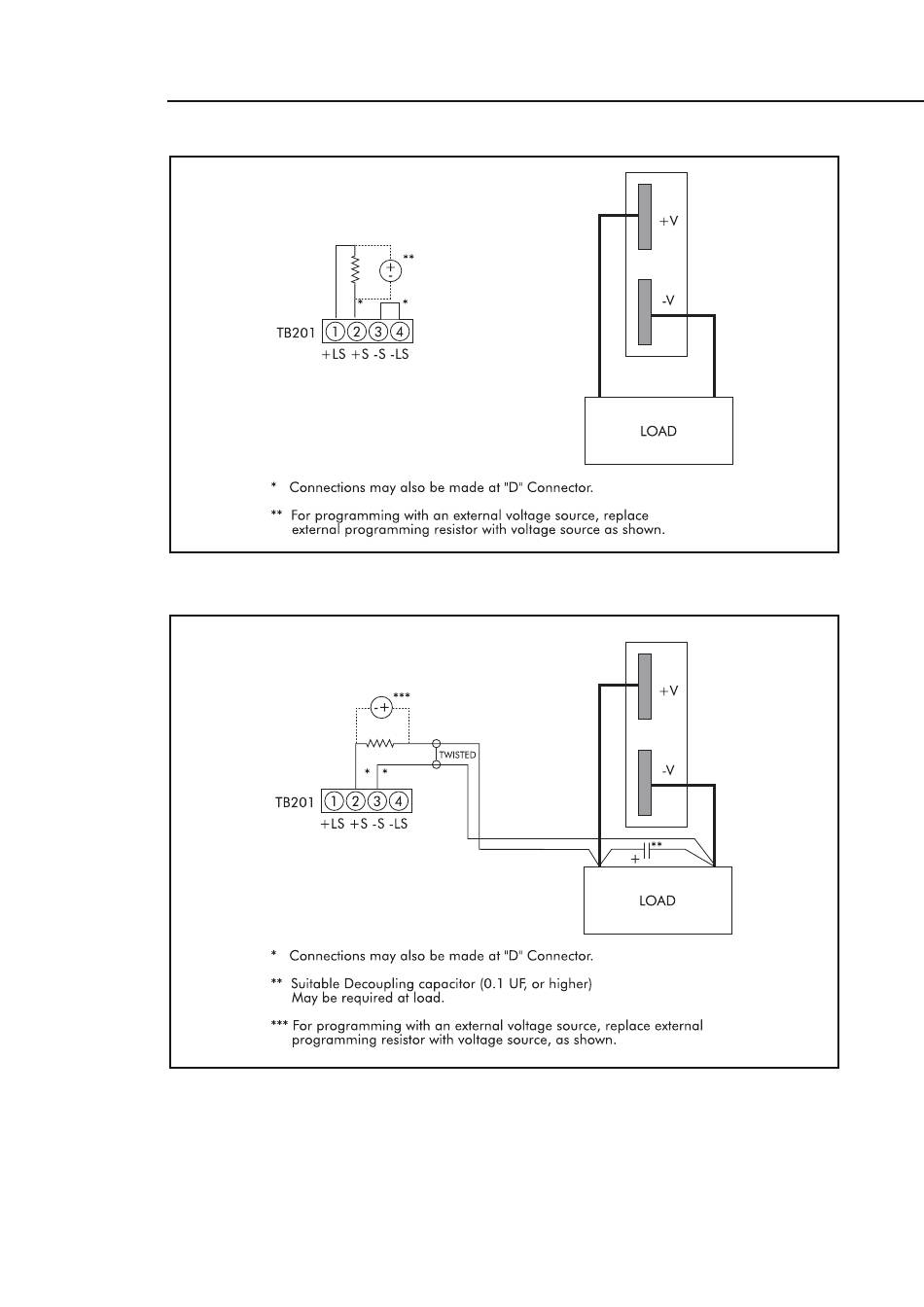

Figure 4 - Remote Voltage Control with an External Programming Resistor or
LS = Local Sense
S = Remote Sense
Figure 5 - Remote Voltage Control with an External Programming Resistor or
3055 Del Sol Blvd • San Diego, CA 92154 • 1-800-LAMBDA-4
Voltage Source (Local Sensing)
Voltage Source (Remote Sensing)
LZS-A A 1000-2 2 Power Supply
Page. 11
Revision G : November 2013
