SAFETY
Prior to assembling and using this product, carefully
read and adhere to all caution and important notices
located throughout this manual. Failure to comply with
these instructions may damage the product or cause
serious personal injury or death. Due to the constant
technica! evolution of this product, we reserve the
right to incorporate modifications to the product for its
betterment.
1
ASSEMBLY AND INSTALLATION INSTRUCTIONS
You have just bought a technica! product whose manipulation
is simple without complications if you take the following
precautions. So please read all these instructions carefully.
For the monoblock to function, it needs a skimmer (a device to
vacuum the pool water surface) lt can be a skimmer built into
the steel wall, or a raised skimmer fixed to the steel wall.
To order replacement parts, please contact your supplier indica-
ting the type and reference number with the purchase date.
WARNING!
2 SAFETY DETAILS FOR THE ELECTRICAL
INSTALLATION
1.
The electrical installation must be carried out by an
approved electrician. An automatic differential switch
(30 mA) must protect the electrical supply.
In addition, the connections must conform to the directive
VDE. No reclamation will be accepted for the
consequences resulting from an incorrect installation or
start-up, or for non-compliance with the instructions, the
electrical installation is subject to.
2.
The electrical supply cable must not be buried.
3.
Make sure that the electrical supply cable is not damaged
(for example by a lawnmower). Every damaged supply
cable must be substituted straight away.
4.
Keep children away from all electrical equipment. Never
allow children to operate this equipment. Parents are res
ponsible for their children.
5.
Do NOT operate the system while the pool is in use.
3 DETERMINING THE POSITION OF THE
MONOBLOCK
Determine the place for the monoblock between the skimmer
and the pump inlet with a minimum distance of 3.5m between
the pool wall and the monoblock. Cut the area of grass
(according to the size of the monoblock) and level the area
with a spirit level. We recommend placing the monoblock on
concrete slabs or similar. The monoblock must in no way be
placed in a low place or directly on the earth. (Risk of flooding
or overheating of the monoblock motor)
lf the pool is buried, totally or partially, the monoblock must be
installed in a filtration pit beside the pool.
When the monoblock is installed in a filtration pit, it is necessary
to assure there is no danger of flooding.
lt is advisable to have a base of small stones in the base of the
pit to assure a good filtration of rainwater and the evacuation of
any water in the area. lt is also advisable to install a submergible
pump with a float switch in case of flooding.
Check that the installation is in no way closed hermetically, this
could damage the monoblock pump due to the formation of
water condensation. The size of the pit must be big enough to
allow maintenance or repair of the monoblock.
The necessary spare parts like the flexible tubes, the metal clips
or the filter sand (not included) can be found in the usual service
point.
4 FILTER/PUMP INSTALLATION
Before installing the filter pump unit, identify the position in
which it is to be installed, as once it has been filled up with sand,
the filter is hard to move due to its weight.

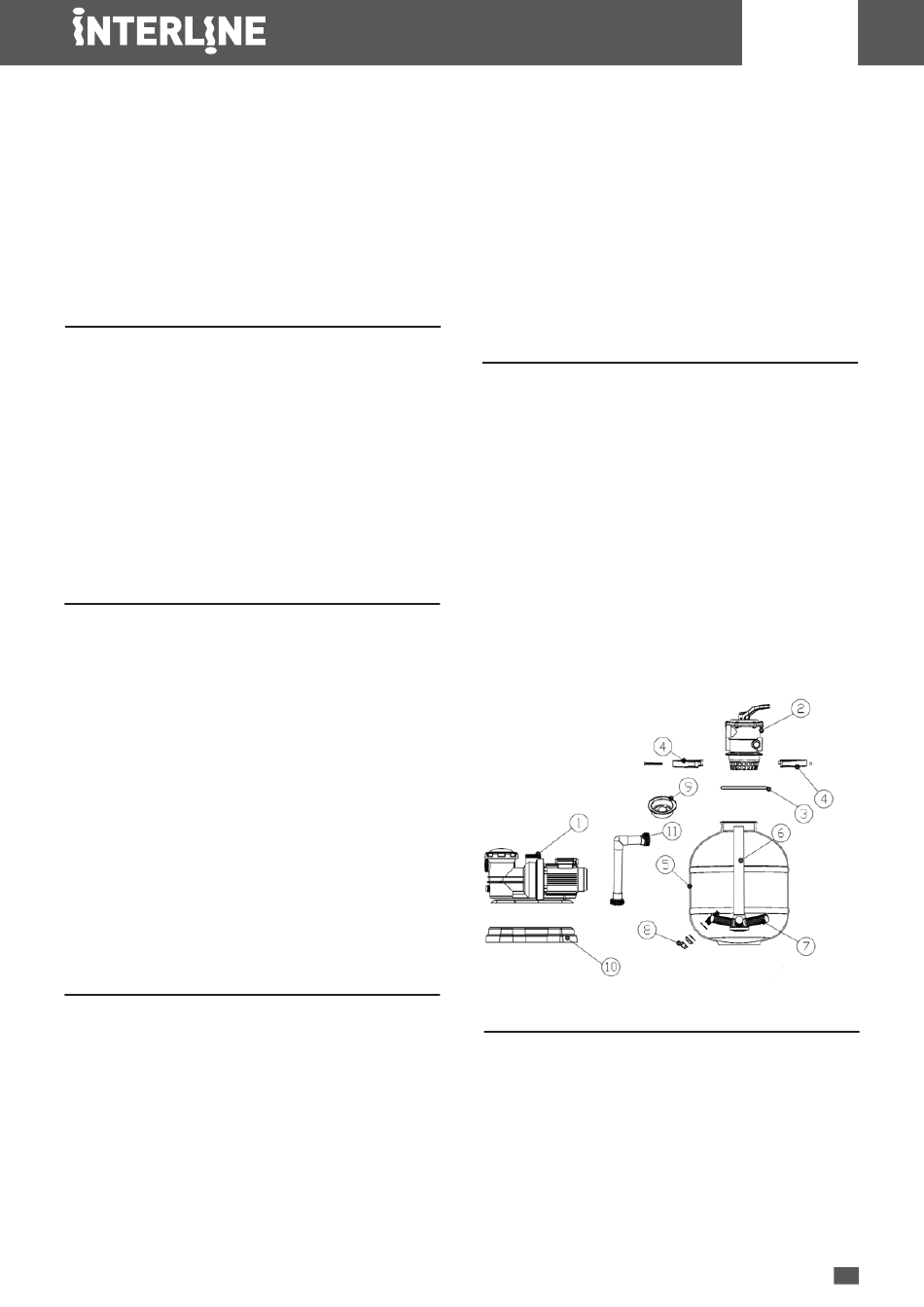

The filter/plug is made up of the following parts (drawing 1):
1
A pump
2
A valve
3
A gasket
4
A closing flange
5
A filter tank
6
A tube with a manifold
7
Small sand quard filters
8
A drain cock
9
A spigot
10 A supporting base
11 A tube - hosepine
5 FILTER PARTS INSTALLATION
1.
lnsert the tube with the manifold into the container
(drawing 2) and screw the small sand guard filters to the
manifold (drawing 3).
2.
Place the completed manifold on the foundation and fill
halfway with water to stabilize it. Make sure that the
star-shaped gauze is well centralized in the bottom of the
filter and that the purge screw is tight.
3.
Place the spigot on the mouth of the container, making
sure the tube is centred on the manifold.
4.
Fill the filter with sand to ¾ in height. (ldeal sand grain size:
EN
7
