CONNECTION AND SETUP

HiCAST S84
4.1 PA SYSTEM
CAUTION
RISK OF ELECTRIC SHOCK
DISCONNECT INPUT POWER
BEFORE OPENING. Ta=40°C
WARNING: THIS APPLIANCE MUST BE EARTHED
AC INPUT: FUSE:
100~120V~50/60Hz 100-120V T6.30AL 250V
220~240V~50/60Hz 220-240V T3.15AL 250V
POWER CONSUMPTION: 400W
SUBWOOFER POWER: 250W
SERIAL NO.
LEFT
FULL RANGE FULL RANGE
INPUT THRU
HiCAST 4A
40W @ 8Ω
+ — — +
FULL RANGE FULL RANGE
INPUT THRU
HiCAST 4A
40W @ 8Ω
+ — — +
Connect the AC Input to the mains using the
supplied power cable. Ensure that the voltage is
correct as indicated on the voltage selector and
that the mains outlet is switched on.
The HiCast S84 has three input options; XLR,
6.3mm Jack, or RCA Phono. Connect the Left and
Right outputs from DJ Mixers, CD Players, or any
other play back device to the corresponding Left
and Right inputs on the back of the subwoofer.
Connect the first pair of speakers to the subwoofer
by connecting the Full Range Inputs of the speakers
to Left and Right Outputs on the rear of the
subwoofer. All four speakers are identical so there
is no preference to which speakers are connected
first. Ensure you are using suitable NL4/Speakon
cables to connect the speakers to the subwoofer.

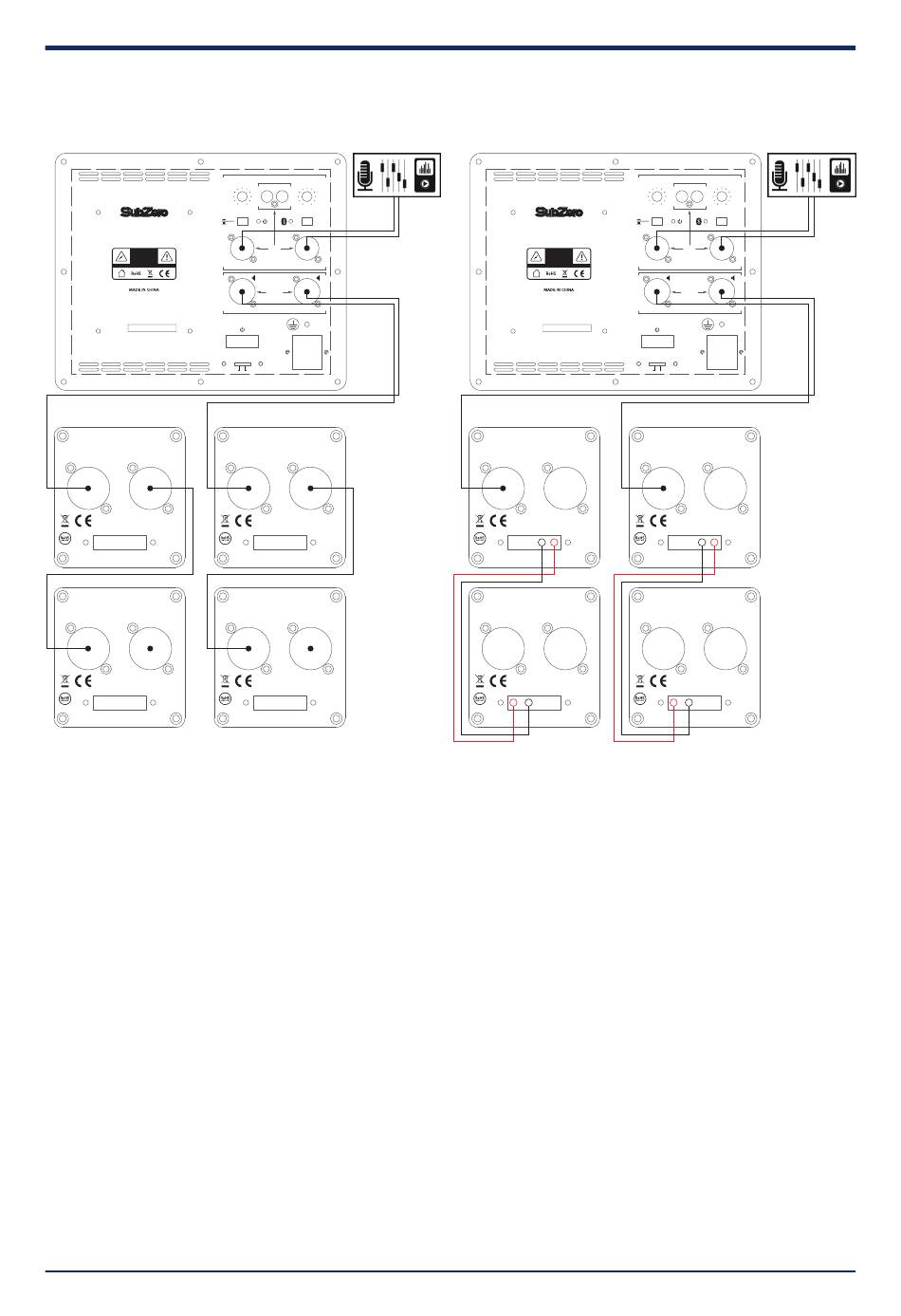

Connect the second pair of speakers to the first pair
of speakers using one of the following methods;
MAIN LEVEL SUB LEVEL
R L
SUB PHASE
0°
180°
INPUT
RIGHT LEFT
OUTPUT
2 x 40W at 4Ω
RIGHT LEFT
ON OFF
VOLTAGE
110-120V~ 220-240V~
AC INPUT
RIGHT
FULL RANGE FULL RANGE
INPUT THRU
HiCAST 4A
40W @ 8Ω
+ — — +
FULL RANGE FULL RANGE
INPUT THRU
HiCAST 4A
40W @ 8Ω
+ — — +
HiCAST S84
4.1 PA SYSTEM
CAUTION
RISK OF ELECTRIC SHOCK
DISCONNECT INPUT POWER
BEFORE OPENING. Ta=40°C
WARNING: THIS APPLIANCE MUST BE EARTHED
AC INPUT: FUSE:
100~120V~50/60Hz 100-120V T6.30AL 250V
220~240V~50/60Hz 220-240V T3.15AL 250V
POWER CONSUMPTION: 400W
SUBWOOFER POWER: 250W
SERIAL NO.
LEFT
FULL RANGE FULL RANGE
INPUT THRU
HiCAST 4A
40W @ 8Ω
—
+
+ — — +
FULL RANGE FULL RANGE
INPUT THRU
HiCAST 4A
40W @ 8Ω
—
+
+ — — +
1. Connect the Full Range Thru on the first speaker
to the Full Range Input of the second speaker
using suitable NL4/Speakon cable.
2. Connect the bare speaker wire Full Range Thru
(right side – and +) on the first speaker to the
bare speaker wire Full Range Input (left side +
and -) on the second speaker.
POSITIONING
The HiCast S84 comes with four L brackets included
in the box for mounting your speakers to a flat
surface or for installing them in a fixed position.
Bolts to attach the speakers to the brackets are also
included.
The speakers can also be mounted on any
speaker/microphone stand with a 5/8ths threaded
connection for easy and versatile positioning.
